RisingStar’s 27-inch Gas Pump Touch Monitor is purpose-built to serve as a stretch bar display for modern fuel-station advertising, payment kiosks, and narrow-format digital signage. Combining industrial-grade reliability with sunlight-readable brightness and flexible integration options, this display transforms narrow spaces—pump tops, fascia strips, and canopy bars—into high-impact, continuously running visual channels. Designed for real-world outdoor environments, the unit balances ultra-high luminance, thermal stability, and low power draw to deliver consistent, long life performance where ordinary indoor panels fail.
A stretch bar display — also called a stretched or bar-type display — is a long, narrow form factor suited to constrained mounting areas such as fuel pump faces, storefront transoms, and shelf headers. Compared with traditional portrait/landscape displays, stretch bar displays provide:
Optimized viewing geometry for strip signage and ticker information
Maximized visual impact in narrow retrofit spaces without custom fabrication
Efficient content delivery for rotating ads, promotional tickers, and passenger information
Lower installation complexity when compared to tiling many small displays
RisingStar’s Gas Pump Touch Monitor has been engineered to deliver these benefits while meeting strict operational and environmental demands.
Peak Brightness: Up to 5000 nits (select models), ensuring clear readability under direct sunlight and canopy glare.
Backlight Technology: Direct (full-array) backlight for superior brightness uniformity and color consistency across elongated panes.
Durability & Lifetime: Industrial LED backlight rated to ~50,000 hours of service life under normal operating conditions.
Thermal & Power Efficiency: Low-power industrial design minimizes heat output—critical for high-luminance continuous operation.
Housing: Lightweight aluminum chassis with optional weatherproofing and IP-grade enclosures suitable for outdoor pump-top installations.
Sizes & Aspect Ratios: Offered in stretch-friendly aspect ratios; 27" is ideal for compact pump-top and fascia applications.
Touch Options: Capacitive and projected capacitive (PCAP) touch options available for interactive signage and payment workflows.
Interfaces: HDMI / DVI / LVDS / optional eDP and USB touch controllers—designed to integrate with standard CMS and embedded players.
Operating Range: Engineered for extreme temperature operation; designed to maintain brightness and reliability across typical outdoor climate conditions.

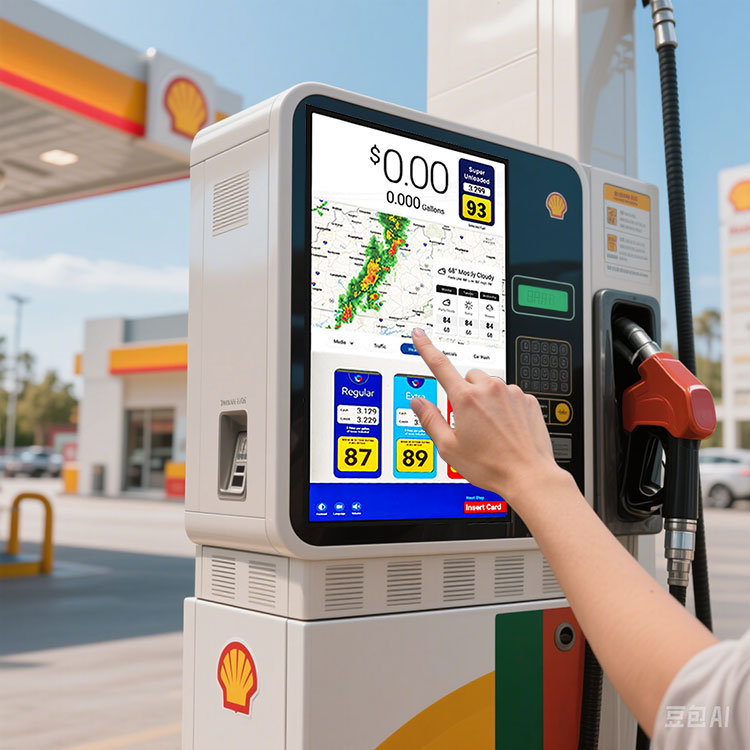

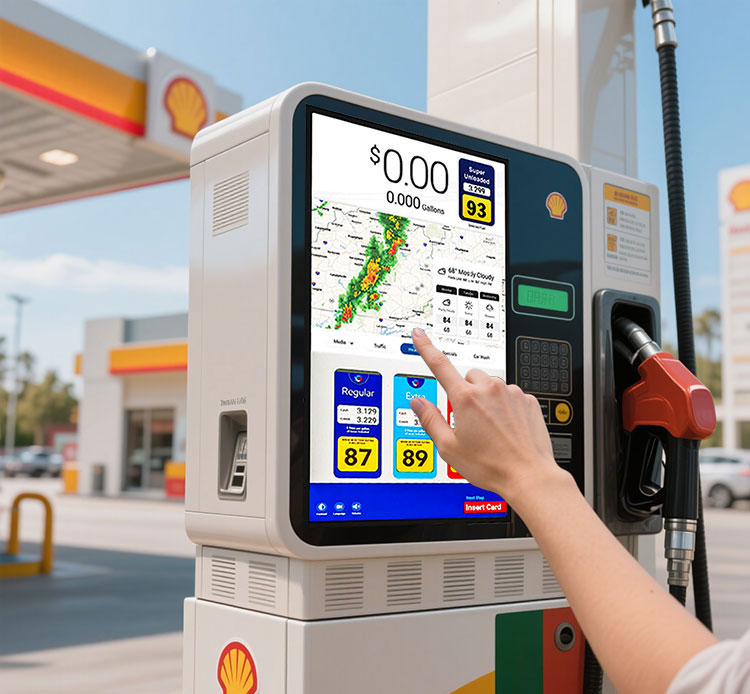

Gas pump canopy / pump-top advertising — horizontal or vertical bar placements for promos and dynamic pricing.
Retail shelf headers & gondola toppers — long strip signage that highlights promotions without blocking shelf space.
Transit and station tickers — passenger info bars that fit into slim mounting channels.
Interactive kiosk fascia — narrow interactive displays for payments or promotions at forecourts and unattended kiosks.
Drive-thru and QSR order lanes — strip displays for order status, ads and upsell messaging.
Brightness management: For continuous outdoor deployments, configure adaptive brightness control (ambient light sensor + software PWM) to balance legibility and LED lifetime.
Thermal design: Maintain minimum air gaps specified in the installation guide and use passive heat-spreading (aluminum backplane) to keep panel junction temperatures within spec.
Power & cabling: Use shielded, weather-rated cabling for HDMI/LVDS runs and place controllers within protected enclosures to reduce exposure to moisture.
Mounting: For pump-top mounting, select vibration-damped brackets and ensure the face plate has proper drainage and sealing. Follow local electrical and fueling-station safety codes.
Content & CMS: Use templates designed for narrow aspect ratios (e.g., 21:6, 32:9 variants) to avoid letterboxing. Ensure your CMS supports rotation, scaling and remote brightness control. RisingStar supports common CMS integrations—contact our technical team for recommended settings.
RisingStar products undergo industrial stress testing—temperature cycling, humidity aging, shock and vibration tests—to ensure display uniformity and longevity in harsh outdoor environments. Documentation and lab test summaries (thermal profile, IP sealing options, LED life estimates) are available on request to support procurement and compliance checks.
Scenario: Forecourt campaign for a national convenience chain.
Deployment: 80 pumps fitted with 27” stretch bar displays across 25 sites.
Outcome: 18% lift in promotion engagement from targeted strip content vs. static posters; simplified maintenance due to modular controller architecture.
(Note: customer names and exact ROI figures available upon non-disclosure agreement.)
Q: Is the 27″ unit suitable for full-sun outdoor exposure?
A: Yes—selected configurations offer up to 5000 nits peak brightness and anti-glare optical treatment. For continuous full-sun deployments, enable ambient brightness control and choose the outdoor enclosure option.
Q: Can this stretch bar display be tiled or combined for wider signage?
A: The monitor supports daisy-chain video with compatible controllers for multi-unit tiling, but for seamless bar signage we recommend custom stretch panels or specialized controllers—our engineers can advise on the best approach.
Q: What touch technologies are available?
A: PCAP capacitive touch is standard for interactive models; projected optical alternatives are available for gloved use or harsh environments.
Q: Do you supply mounting and IP-rated housings?
A: Yes, weatherproof housings and certified enclosure options are available for pump-top and canopy installations.
RisingStar is an industrial display specialist focused on high-brightness, sunlight-readable LCD solutions for transportation, retail and outdoor digital signage. Our engineering team—led by experienced display hardware and thermal engineers—provides pre-sales integration support, custom firmware options and field replacement plans. Contact our technical sales team for project evaluation, sample units, and integration checklists.
Ready to deploy stretch bar signage that performs in real conditions?
Contact RisingStar for a project consultation, sample unit, or a customized datasheet: Tel / WhatsApp +86 15889469208 — or click Request Quote to start a site assessment.
27 Inch Gas Station Touch Display Product Introduction
Designed for modern gas stations and EV charging environments, this high-performance touchscreen solution combines
sunlight readability, all-weather durability, and energy efficiencyto deliver stable, safe, and high-performance operation
in harsh industrial conditions.
Key Features
Sunlight-Readable Display
Equipped with high-brightness anti-glare technology, ensuring crystal-clear visibility even under direct sunlight for
precise touch operation 24/7.
Industrial-Grade All-Weather Protection
IP65 dustproof & waterproof—resistant to oil, dust, and rain
Wide operating temperature (-30°C to 70°C)—reliable in extreme cold or heat
Explosion-proof & corrosion-resistant—safe for hazardous environments
Energy-Saving Smart Technology
Features dynamic backlight adjustment, reducing power consumption by 30%+ compared to conventional displays,
lowering long-term operational costs.
High-Sensitivity Touch, Smooth Operation
- 10-point multi-touch + glove/wet-hand mode, with <0.1s response time
- Oil-repellent coating—ensures accuracy even with oil or water interference
Modular Design, Flexible Integration

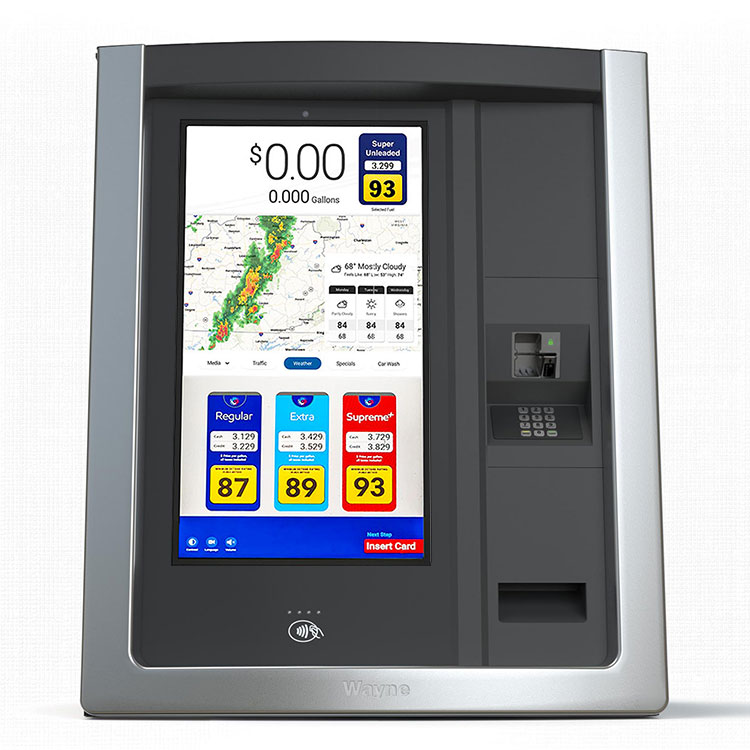

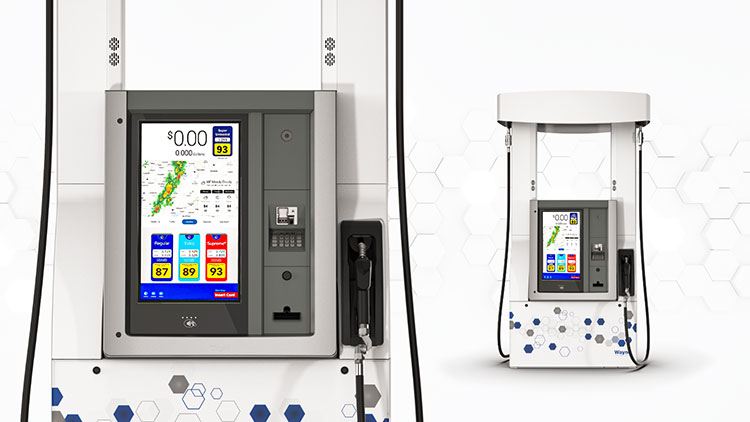

Supports embedded/wall-mounted installation, seamlessly compatible with fuel dispensers, EV chargers, payment
terminals, and remote management/advertising systems.
Ideal Applications
Fuel dispenser payment terminals ，EV charging interfaces ，Outdoor self-service kiosks
Specially designed to provide a perfect solution for gas station touch monitor
A+ grade wide temperature LCD panel
Normal operation in an environment of 24H-20 ℃ to 70 ℃.
Designed for gas station environments, our display features highly responsive capacitive touch technology with millisecond-level accuracy. It seamlessly supports glove and wet-hand operation, ensuring reliable performance in harsh conditions like fuel spills, temperature shifts, and high-frequency use.
IK10 tempered glass with optical bonding provides the strongest protection
Having multiple national patent certificates
Provide customized LCD screen sizes for various fuel dispensers
10.1 inches to 110 inches, please contact info@risinglcd.com
| Type | Size | Brightness |
|---|---|---|
| LCD module | 10" to 120" | 500 to 5000 nits |
| outdoor monitor | 32" to 75" | 500 to 5000 nits |
| waterproof monitor | 32" to 75" | 500 to 5000 nits |
| bus stop display | 21.5" to 86" | 500 to 5000 nits |
| window display | 43" to 75" | 500 to 3000 nits |
| double-sided display | 10" to 88" | 500 to 3000 nits |
| stretch display | 32" to 75" | 500 to 5000 nits |
| outdoor TV | 43" to 86" | 500 to 3000 nits |
| terrace TV | 10.1" to 86" | 500 to 3000 nits |
| touch monitor | 55" to 86" | 500 to 2500 nits |
| interactive screen | 43" to 86" | 500 to 2000 nits |
| battery Mobile monitors | 43" | 500 to 2000 nits |
| circular monitors | 23.6" | 500 to 3000 nits |
| mirror display | 21.5" to 65" | 500 to 1500 nits |
| Screen Size | 27" |
| Display Area (mm) | 478.656(H) x 260.28(V) |
| Brightness | 2500 nits |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.31125(H) x 0.31125(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typical) | 7/5 (Typ.)(Tr/Td) (ms) |
| Input Interface | USB TOUCH*1 EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 AC IN*1 |
| OSD Key | AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER |
| Glass | 3MM Tempered Glass OCR |
| Touch Type | PCAP |
| Input Power | AC 200-240v |
| Power Consumption | 80W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 369 x 377 x 58.6mm |
| Mounting | 100x100mm Screws metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ˚ C ~ 70 ˚ C |
| Storage Temperature | -20 ˚ C ~ 70 ˚ C |
