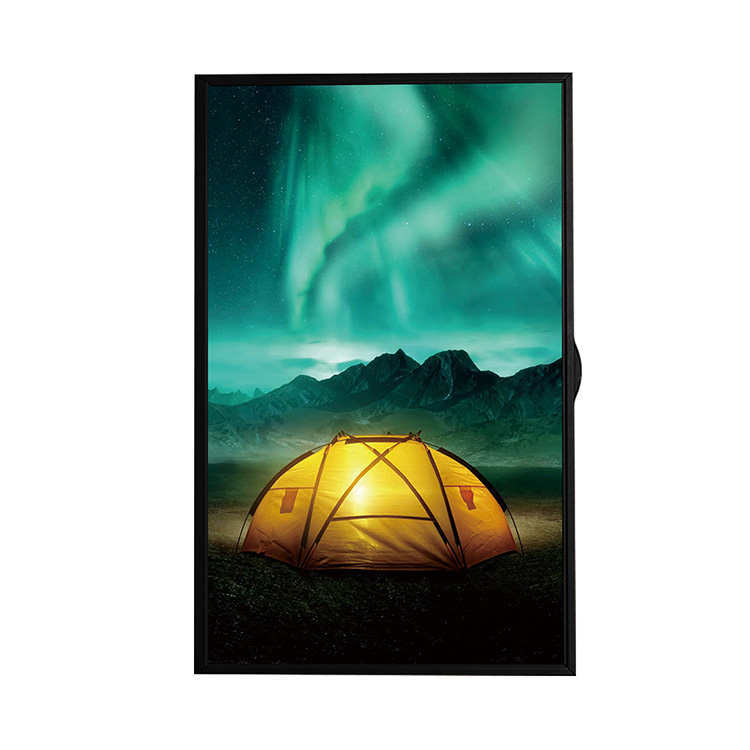

23.6 inch Samsung QLED 4K LCD Display Monitor
| Brand | Samsung |
| Model name | RS236ENT-N03 |
| Screen size | 23.6 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 300 |
RisingLCD RS236ENT-N05 is a 23.6 inch QLED LCD display monitor, that is equipped with original Samsung LTM236FL01-201 panel, characterizes a great resolution 3480(RGB)*2160 (UHD), and a high brightness of 300 cd/m², Constrast Ratio 4000:1. and work life can achieve above 50,000 hours after RisingLCD customized, the brightness can achieve 300-1500cd/m².

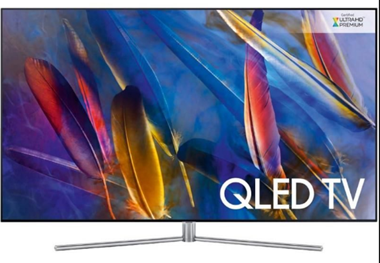

QLED display monitor has a quantum dot layer between the LCD screen and its LED backlight that can change the LED spectrum to low the blue color, and balance the R/G/B peak which can evenly stimulate people’s cone celles and effectively reduce visual fatigue. they are widely applying for the advertising industry, LCD monitor, industrial equipment, TV monitor, outdoor advertising screen, game monitor.
QLED display is a type of LED that uses a quantum-dot layer in between the backlight and the LCD panel, when light hits these microscopic quantum dots, it produces brighter colors that are more vivid and heavily saturated than the regular LED display.
With 4K QLED, our 23.6 inch Samsung QLED 4K LCD Display Monitor are able to deliver up to 1500-nit brightness levels, customer can experience great picture quality and optimized visibility for outdoor enviroment, it is ideal for meeting the demands of your business to prompt your brand by this advertsing display.
Thanks to the the anti-reflection glass and wide view angle, this out door QLED display monitro eliminates the air between the lcd panel and tempered glass, it helps to provide high brighness, lower reflection and high contrast ration display, and makes the images and contents clearer and richer even it is under the direct sunlight.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, outside and inside digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Item No: | RS236ENT-N03 |
| Panel Brand | Samsung |
| Panel Item | LTM236FL01-201 |
| Size | 23.6 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840*2160 UHD 187PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 521.28*293.22(H*V)mm |
| Outline Size | 544.8*320.5*11(H*V*D)mm |
| Bezel Area | NA |
| Surface Treatment | Antiglare, (Haze 25%), Hard coating (3H) |
| Brightness | 300-1500cd/m² |
| Constrast Ratio. | 4000:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | IPS Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G+G) ms |
| Display Color | 16.7M, 100% Srgb |
| Backlight | WLED, 30K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 2.86Kgs (Max.) |
| Frame Rate | 60Hz |
| Signal Interface | Edp (4 Lanes), 51pins connector |
| Input Voltage | 5v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
