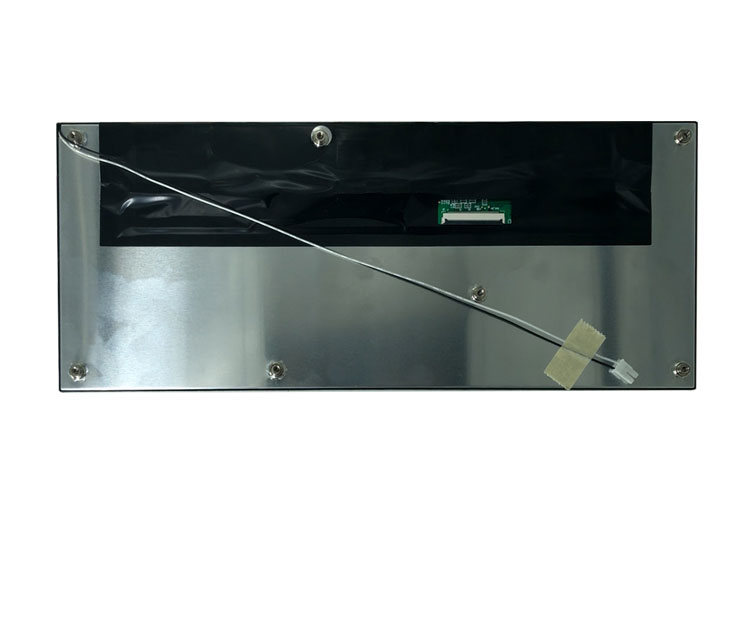

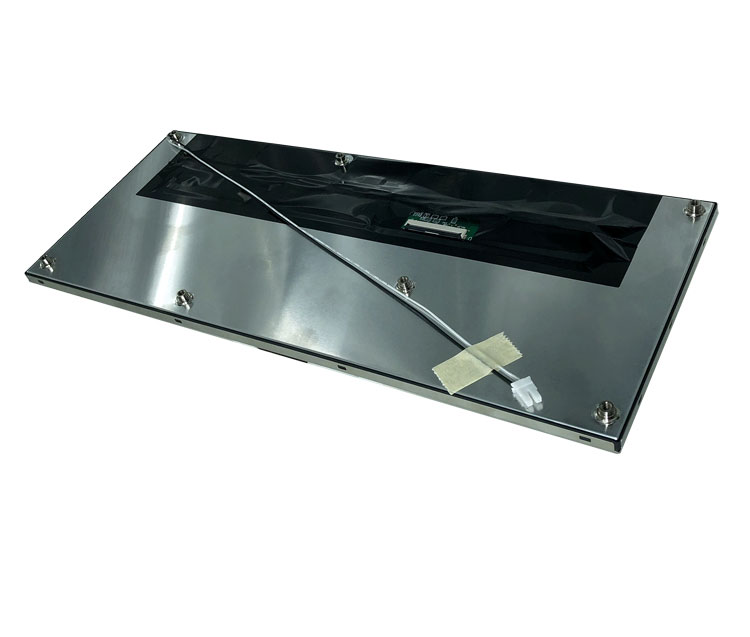

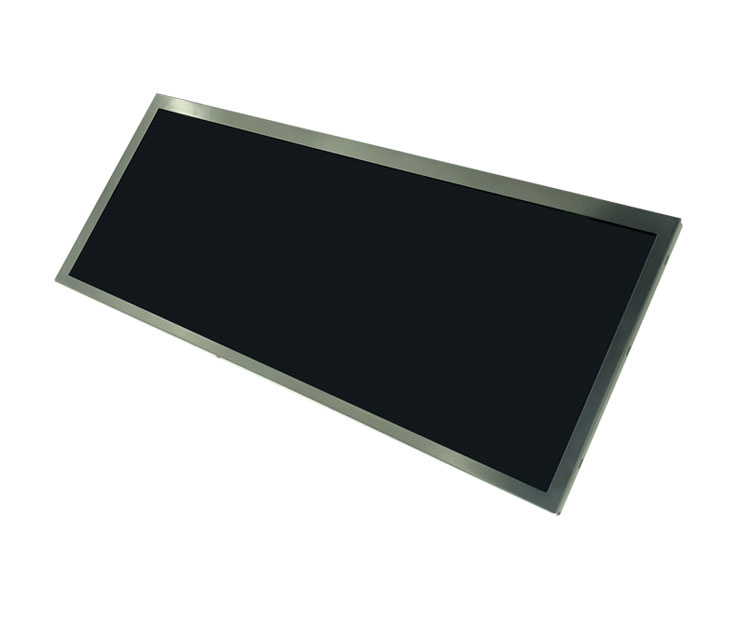

     AV123Z7M-N11 BOE 12.3 "screen panel
    •  AV123Z7M-N11 BOE 12.3 "screen panel
    •  AV123Z7M-N11 BOE 12.3 "screen panel
    •  AV123Z7M-N11 BOE 12.3 "screen panel

    AV123Z7M-N11 BOE 12.3 "screen panel

    AV123Z7M-N11 is a 12.3-inch LCM with a-Si TFT-LCD technology, with WLED backlight, no backlight driver, no touch, resolution 1920(RGB)×720, aspect ratio 8:3 , the pixels are arranged in RGB vertical stripes, its display area size is 292.032×109.512 (width×height) mm, the visible size is 295.03×112.51 (width×height) mm, and the appearance size is 307.9×130.27 (width×height) mm,


    Panel Brand:

    BOE

    Panel No:

    AV123Z7M-N11

    Screen size:

    12.3"

    Screen type:

    LCD Monitor

    Resolution:

    1920*1080

    Brightness (cd/m²):

    800


    *Name:
    *Country:
    *E-mail:
    Phone:
    *Content:

    AV123Z7M-N11 is a 12.3-inch LCM with a-Si TFT-LCD technology, with WLED backlight, no backlight driver, no touch, resolution 1920(RGB)×720, aspect ratio 8:3 , the pixels are arranged in RGB vertical stripes, its display area size is 292.032×109.512 (width×height) mm, the visible size is 295.03×112.51 (width×height) mm, and the appearance size is 307.9×130.27 (width×height) mm, the net weight of the product is 520±50g. The backlight uses a WLED light-emitting edge light source, the service life of the light source is 50K hours, and the driving voltage is 3.3/6.27/-12/18V

    (Typ.) (VCC/AVDD/VGH/VGL). Its operating temperature is -30 ~ 85°C, and its storage temperature is -40 ~ 90°C.

    More model parameters of the same size are as follows:

    brandBOEModel nameAV123Z7M-N12-58P2
    size12.3 inchScreen typea-Si TFT-LCD,LCD module
    resolution ratio1920(RGB)×720  167PPIPixel configurationRGB vertical bar
    Display Area292.032(H)×109.512(V) mmSurface treatment
    Visual size
    Contrast Ratio1000:1 (Typ.) (TM)
    Brightness(cd/m²)1000cd/m²(Typ.)or customizedOutline dimension307×126×11.3(H×V×D)mm
    Viewing Angle88/88/88/88(Min.)(CR≥10)

    Signal interfaceLVDS (2 ch, 8-bit) , 60 pins ,erminal

    work environmentStorage temperature: -40 to 90 °C  Operation Temperature: -30 to 85 °C



     AV123Z7M-N11 BOE 12.3 "screen panel




    Q:Are you manufacturer(factory)?

    A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


    Q:How can i find the right product?

    A:Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.


    Hot Tags: AV123Z7M-N11 BOE 12.3 "screen panel, manufacturers, suppliers, factory, Customized
    brandBOEModel nameAV123Z7M-N11
    size12.3 inchScreen typea-Si TFT-LCD,LCD module
    resolution ratio1920(RGB)×720  167PPIPixel configurationRGB vertical bar
    Display Area292.032(H)×109.512(V) mmSurface treatment
    Visual size295.03(H)×112.51(V) mmContrast Ratio1000:1 (Typ.) (TM)
    Brightness(cd/m²)800cd/m²(Typ.)or customizedOutline dimension307.9(H)×130.27(V)mm
    Viewing Angle80/80/80/80(Min.)(CR≥10)

    Signal interfaceLVDS (2 ch, 8-bit),41 pins, erminal

    work environmentStorage temperature: -40 to 90 °C  Operation Temperature: -30 to 85 °C
