43 inch outdoor IP65 waterproof LCD monitor with 4000 nits high brightness

43 inch outdoor IP65 waterproof LCD monitor with 4000 nits high brightness

RisingStar LCD outdoor video monitor display are available as wall mount monitor and floor mount kiosk, the standard range of the sizes are 32 inch, 43 inch, 49 inch, 55 inch, 65 inch, 75 inch, all of these models feature wide viewing angles, that make them suitable for portrait and landscape orientation


Brand:

LG/AUO/BOE

Model name:

RS430HNX04D05

Screen size:

43"

Screen type:

Outdoor LCD display

Resolution:

1920(RGB)×1080

Brightness (cd/m²):

1500


RS430HNX04D05 is a 43 inch outdoor digital signage from Risingstar, it actually the "plus version" of the classic 43-inch window facing display RS430MNX01D01, and version 2.0 for the first self fanless dissipition display RS430HNX02D05, instead the "radiate type" crave with typical radiator bar, same self-dissipition but lower cost.

Risingstar high brightness outdoor LCD display

Risingstar monitors always has far higher brigthness than most of our competitors, for the specific 43-inches we can reached 4000 nits even much higher, more information please searching on our website: www.risinglcd.com

Size (inch)

32

43

49

55

65

Model number

RS320HNX02D05

RS430HNX04D05

/

/

/

Brightness (cd/m2)

1500

1500

2000

2000

3000

Resolution (pixels)

1920*1080

1920*1080

1920*1080

/3840*2160

1920*1080

/3840*2160

1920*1080

/3840*2160

Power (Watt)

80

160

180240300

Operating temperature

0 ~ 70°C

-20 ~ 50 ℃

0 ~ 70°C

0 ~ 70°C

0 ~ 70°C

Out of the Ordinary: This series of displays has special housing crave to increasing the ability of head dissipition without any fans or A/C inside it, this design will decreasing the poewr consumption and the running cost.

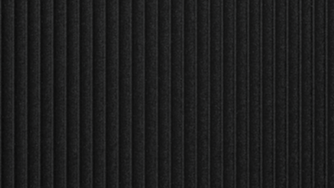

Dissipation bar on the 43-inch outdoor fanless LCD display

Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

BOE, LG, AUO

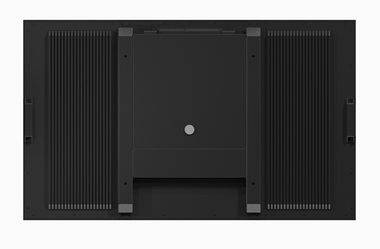

Rugged and unique hosuing: This display has unqiue housing, you can see the crave on the display is as sort of thermal dissipition design, use typical radiator bar for the simple style and lower th cost, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.

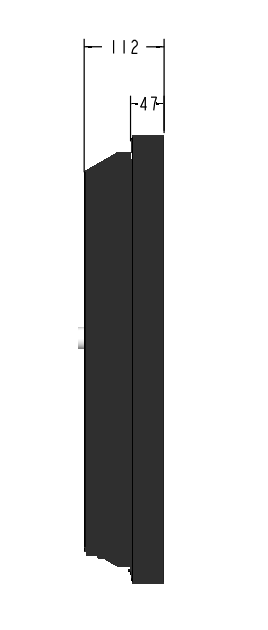

drawing of the 43-inch outdoor fanless LCD display

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

interfaces

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

Risingstar LCD always have ultra wide view angle

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mouting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mouting is VESA.

Risingstar all products and mounting types


43-inch window facing display series:

RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...

RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...

RS430MNX01D01, classic design, the standard type of 43-inch window facing display

RS430HNX04D05 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Display Panel Size 43 inch
Panel BrandLG/AUO/BOE
Display Area941*529.4MM
Brightness 1000 nits / 2000 nits / 3000 nits
Resolution: 1920*1080
Aspect Ratio: 16:9
Constrast Ratio.1300/1
Response Time6/9 (Typ.)(Tr/Td) ms
View Angle89/89/89/89 (Min.)(CR≥10)
Backlight(DLED)
Life Hourup to up to 50,000 hoursours
Control SystemSmart DimmingSupport
Intelligent Temperature ControlSupport
Remote Control FunctionSupport
AV InputsVideoHDMI, VGA
Electrical ParametersInput VoltageAC110V/220V,50/60HZ
Maximum Power160W
ShellShell MaterialSheet Metal
Product Size1044*632*123.6mm
Weight 50kg
Shell Anti-Corrosion ProcessUse galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years).
Protection Glass Thickness 5mm AR tempered glass
Accessories IncludedAC Power Cable, Remote Control, Wall Mount
Operating EnvironmentOperating EnvironmentOutdoor IP65
Operating Ttemperature and Humidity-20-70°C/5%-95%RH
MultimediaMotherboard TypeAndroid/PC/HD Driver Board (optional)
IO interfaceHDMI/VGA/DVI
OptionAD BoardAndorid Mother Board, Computer Mother Board
Network TransmissionStandalone Mode、WIFI、3G、4G
Touch10 points touch, 20 points touch, Capacitive touch
