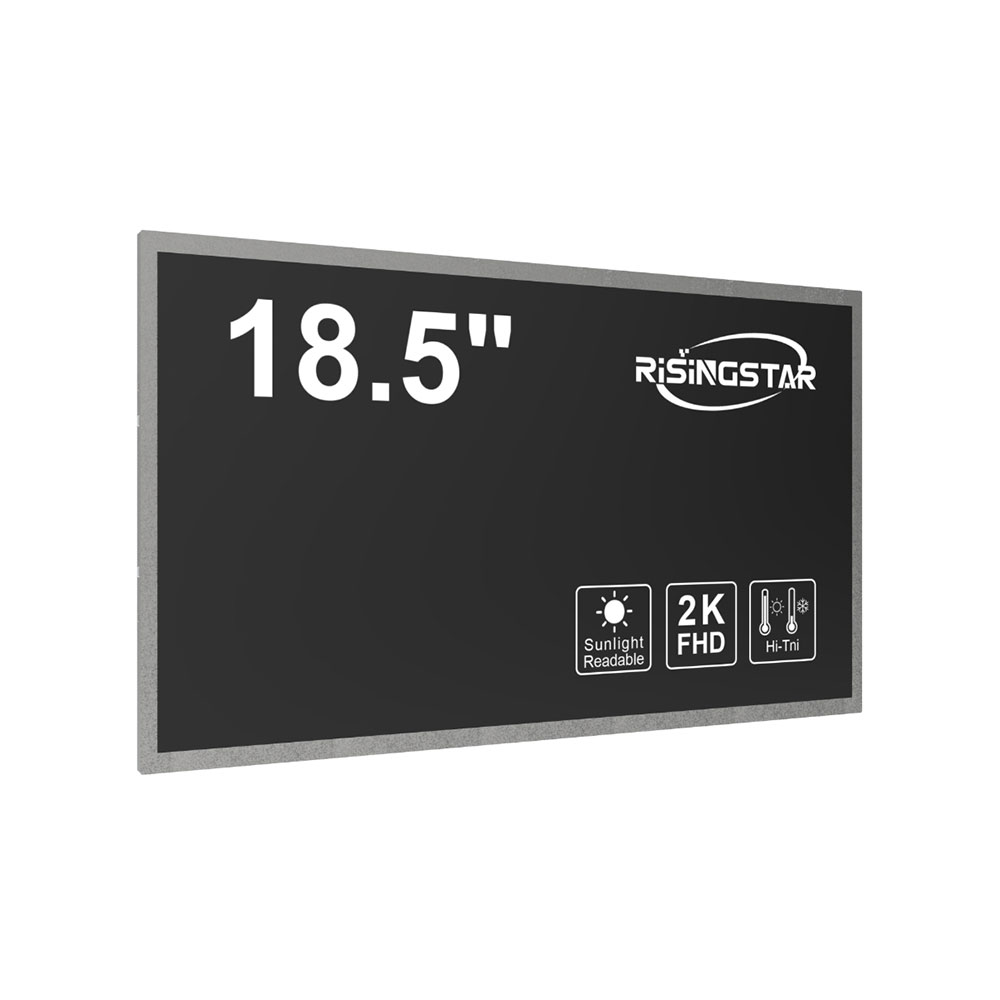

The RS185ENT-N10 is a true sunlight readable LCD panel with 1000 nits high brightness, 18.5-inch diagonal, and 1366(RGB) × 768 [WXGA] resolution. Manufactured by RisingStar, this TFT flat panel is ideal for outdoor tablet advertising and other high-visibility applications.
Premium IPS LCD Technology
RisingStar branded IPS panels deliver perfect image quality with wide viewing angles.
Wide Operating Temperature Range
Reliable performance in demanding environments.
High Brightness ELED Backlight
Up to 1000 nits brightness
Built with imported LED lamps featuring low power consumption, high luminous efficiency, and excellent stability.
Blackening Defect Free
Designed to withstand extreme sunlight without image degradation.
Thanks to IPS/MVA technology, the RS185ENT-N10 LCD panel is readable from any angle:
No grayscale inversion, unlike conventional TN panels.
Reduced contrast loss at wide viewing angles.
The panel operates reliably from -20℃ to 70℃, making it suitable for storefronts, kiosks, and outdoor advertising displays in various climates.
The RS185ENT-N10 comes with a built-in light sensor that:
Detects ambient light conditions.
Automatically adjusts screen brightness for optimal visibility.
Reduces energy consumption, lowers heat, and extends panel lifespan.
With 1000 nits brightness, rich color depth, and clear WXGA resolution, this display ensures:
Vivid image reproduction even under direct sunlight.
Comfortable viewing in all lighting environments.
RisingStar’s sunlight readable LCD technology allows the panel to withstand surface temperatures up to +80°C without suffering from blackening defects. This is especially critical for outward-facing window displays exposed to intense sunlight.
RisingLCD is a high-tech enterprise specializing in outdoor high brightness LCD modules. With years of experience in R&D, manufacturing, and sales, we offer LCD panels ranging from 10.1 inches to 100 inches, with brightness options from 500 nits to 5000 nits.
OEM / ODM services available
Customized solutions to meet diverse project requirements

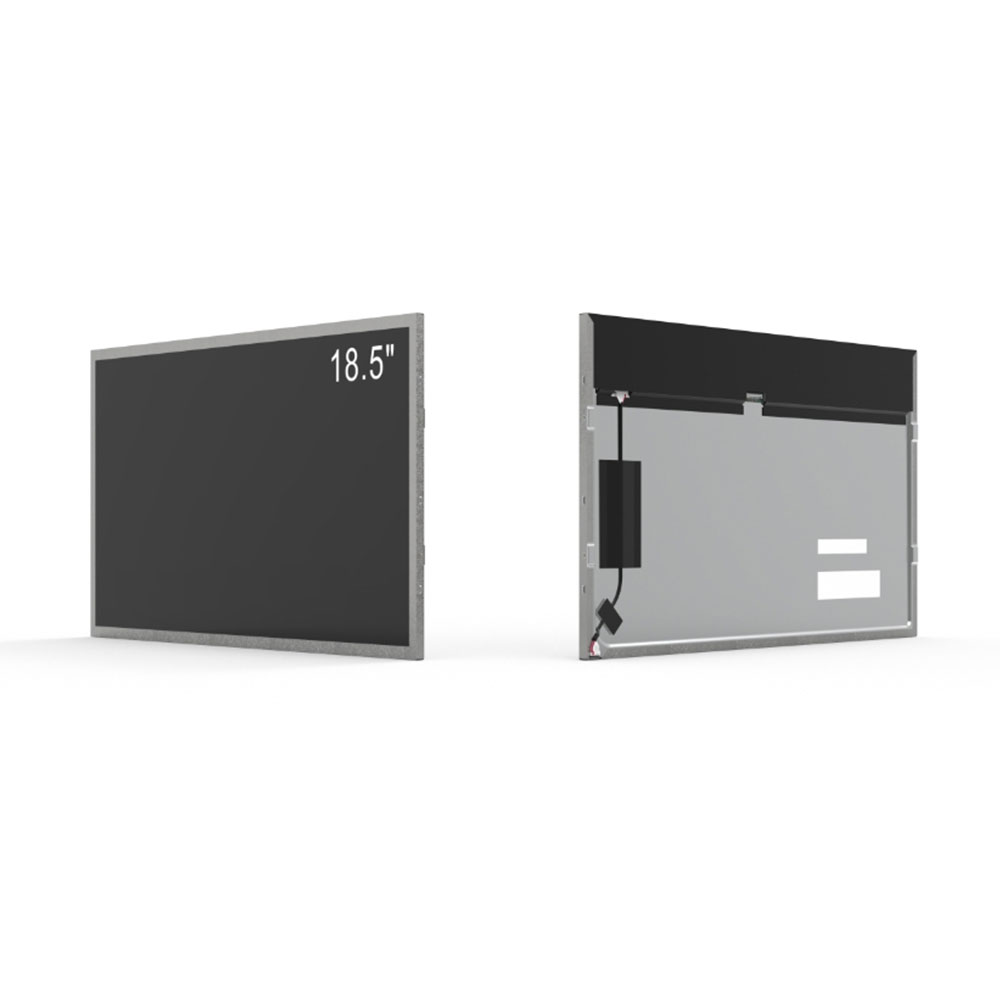

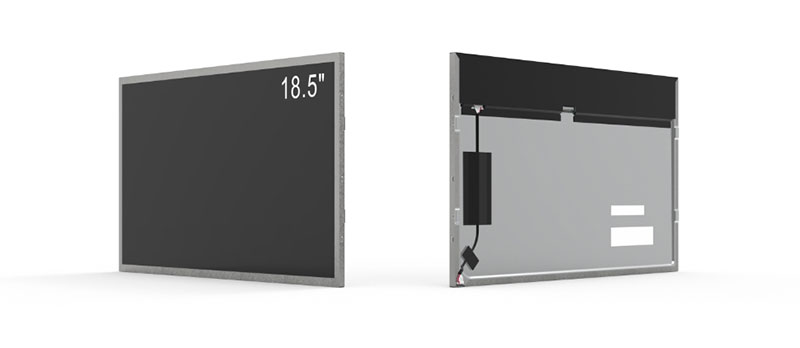

Physical product

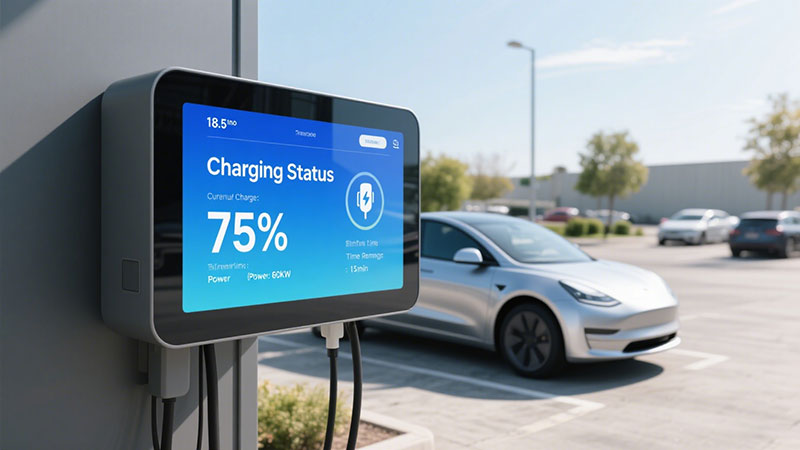

Application examples
The RisingStar RS185ENT-N10 is an 18.5-inch, 1000 nits sunlight-readable IPS LCD panel with built-in auto brightness and anti-blackening design—ideal for outdoor advertising and kiosks.
The RisingStar RS185ENT-N10 is a robust 18.5-inch sunlight-readable LCD panel offering up to 1000 nits brightness and WXGA (1366×768) resolution. Engineered for industrial and outdoor signage, it ensures excellent visibility even under direct sunlight. Please note: this panel is not certified.
| Feature | Details |
|---|---|
| Screen Size | 18.5″ (18.5-inch) TFT-LCD |
| Resolution | 1366×768 (WXGA) |
| Brightness | 1000–5000 nits |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89°/89°/89°/89° (CR≥10) |
| Panel Type | S-IPS, Transmissive, Normally black |
| Response Time | 6 ms (G-to-G) |
| Color Depth | 16.7M colors, 68% NTSC |
| Backlight | WLED, 50,000 h lifespan with LED driver |
| Auto Brightness | Ambient light sensor for auto-adjustment |
| Anti-Blackening | Stable up to 80 °C surface temperature |
| Operating Temp | −20 °C to 70 °C |
| Dimensions / Weight | 430.4×254.6×11.9 mm / 1.04–1.10 kg |
| Frame Rate | 60 Hz |
| Input Voltage | 5.0 V typ. |
Sunlight-Readable IPS Display
Clear visibility even in bright ambient light thanks to high brightness and anti-glare treatment.
Wide-Angle Viewing
IPS panel ensures consistent image quality from any angle, without grayscale inversion or contrast loss.
Adaptive Brightness Control
Built-in sensor auto-adjusts brightness for optimal viewing while reducing power consumption and heat load.
Anti-Blackening Reliability
Withstands extreme temperatures up to 80 °C without image degradation—a must for outward-facing displays.
Broad Operating Range
Functional from −20 °C to 70 °C, suitable for diverse outdoor environments.
Outdoor digital advertising displays
Self-service kiosks and interactive signage
EV charging station interfaces
Retail window-facing information panels
Not appropriate for:diagnostics, or critical healthcare display systems.
As a pioneer in high-brightness outdoor LCD technology, RisingLCD combines decades of R&D, manufacturing, and industrial experience to deliver custom display solutions from 10.1″ to 100″ and brightness ranging from 500 nits to 5000 nits. We support both OEM and ODM services tailored to your project requirements.
Contact us today to integrate the RS185ENT-N10 into your next outdoor signage or industrial display solution—for reliable, sunlight-readable performance.
| Item No | RS185ENT-N10 |
| Panel Brand | RisingStar |
| Panel Item | LC185EXN-SDA1 |
| Size | 18.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1366(RGB)×768 [WXGA] 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8 × 230.4 (H×V) mm |
| Outline Size | 430.4 × 254.6 × 11.9 (H×V×D) mm |
| Bezel Area | 413.4 × 234.0 (H×V) |
| Surface Treatment | Antiglare (Haze 13%), Hard coating (3H) |
| Brightness | 1000 to 5000nits |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Model | S-IPS, Normally Black, Transmissive |
| Response Time | 6 (Typ.)(G to G) ms |
| Display Color | 16.7M 68% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Touch Screen | Without |
| Panel Weight | 1.04/1.10Kgs (Typ./Max.) |
| Frame Rate | 60Hz |
| Input Voltage | 5.0V(Typ.) |
| Working Temperature | -20°C ~ 70 °C |
| Storage Temperature | -20 °C~ 70 °C |
| Current State: | In Production |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
