LED Backlight Low Power Consumption

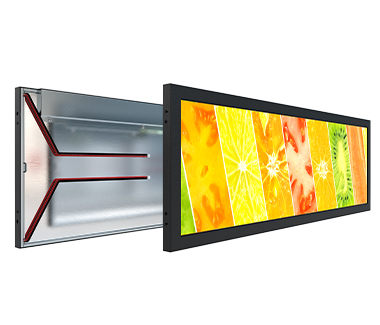

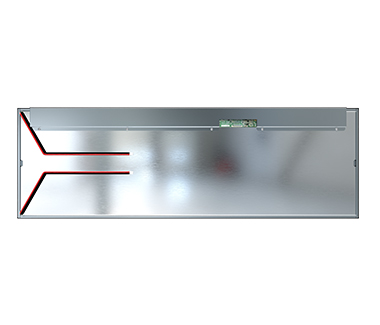

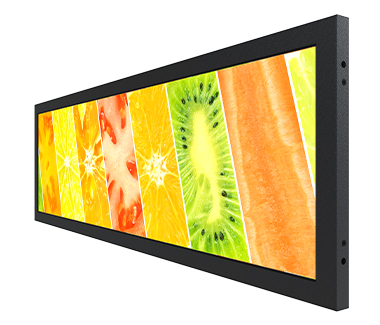

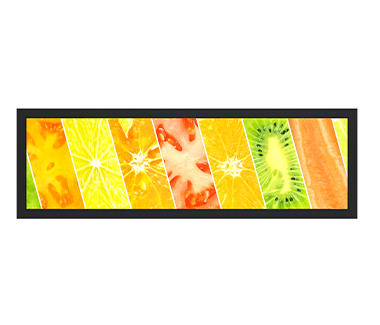

19.5" stretched LCD display also known as bar LCD, cutting panel, it is cut from a large size LCD screen in order to meet the special applications.

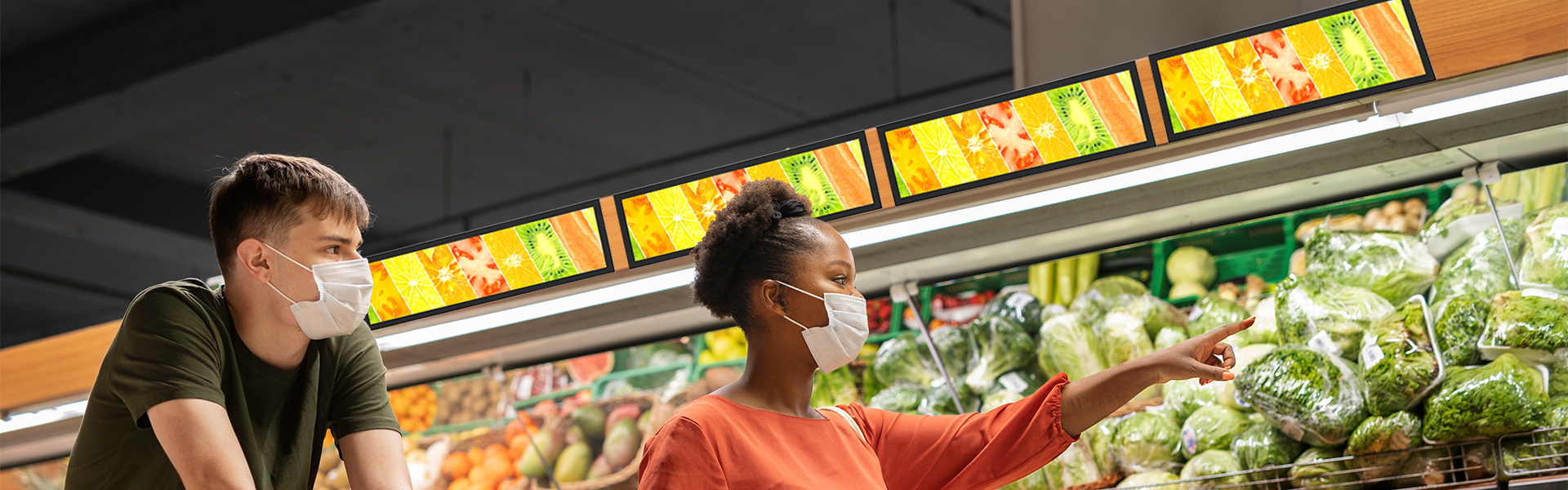

providing a wider viewing area compared to traditional displays. Its unique aspect ratio enables it to display content in a more elongated format, making it ideal for a variety of applications. Whether it is for advertising displays, transportation systems, or digital signage, this LCD panel can enhance the overall visual impact.
Moreover, this stretch bar LCD panel is equipped with advanced LED backlight technology, ensuring a long lifespan and energy efficiency. The LED backlight provides uniform illumination across the entire display, enhancing the overall visual performance. This not only reduces power consumption but also extends the panel's operational durability.
| Screen Diagonal | 19.5 inch |
| Model No | RS195HAN-GE05 |
| Active Area | 478.64(W)×136.41(H) mm |
| Pixels | 1920(RGB)×540, |
| Physical Size | 497.4(W)×158.4(H)×15.7(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 3000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 6V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight | N/A |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Support Color | 8-bit (D), 16.7M |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
