Specifications
| Item No | RS150ENT-N10 |
| Panel Brand | BOE display |
| Size | 15 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768 [XGA] 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128 × 228.096 mm (H×V) |
| Outline Size | 326.5 × 253.5 × 9.7 mm (H×V×D) |
| Bezel Area | 306.5 × 230.1 mm (H×V) |
| Surface Treatment | Antiglare (Haze 25%), hard coating (3H) |
| Brightness | 1000cd/m² RisingStar customized |
| Contrast Ratio. | 1000:1 |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | ADS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Color | 16.7M 72% NTSC |
| Backlight | LVDS (1 ch, 8-bit), 20 pins Connector |
| Touch Screen | Without |
| Panel Weight | 0.93 kg (typ.) |
| Frame Rate | 60Hz |
| Input Voltage | 3.3V(Typ.) |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
| Current State: | In Production |
RS150ENT-N10 is a 15-inch LCD display with 1,000 nits brightness, 1024×768 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
RisingStar RS150ENT-N10 is a 15inch 1000nits LCD panel that is equipped with BOE original screen, support a 1024*768 screen format with LVDS interface, Wide viewing angles--L/R : 89˚/89˚, U/D : 89˚/89˚ (Typ.), Treated with anti-glare surface treatment to improve outdoor capabilities and sunlight readability.
15 inch 1000nits LCD Panel Main feature
1. BOE original Industrial LCD panel
2.1000 nits high brightness
3.Reserved automatic dimming system interface, automatically adjust LCD screen brightness according to outdoor brightness
4 Adopt imported LED lamp which is low power, high luminous efficiency, and low power consumption.
5.Wide Operating Temperature: -20 ~ 70 °C
6. Blackening Defect free
7.Antiglare glass, reduce reflectioin effect.
1000nits Sunlight readable panel
With the feature of 1000nits high brightness, this LCD panel can be sunligh readable under directly sunlight, and along with the extra wide 178° viewing angle is a perfect fit for shoppers, store, employees or visitors that will view Window Facing displays from diverse angles while passing by.
Automatic dimming system built-in 15 inch LCD panel
Different external lighting condition requires different brightness leverls, an onboard light sensor that built-in our outdoor LCD panel measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen

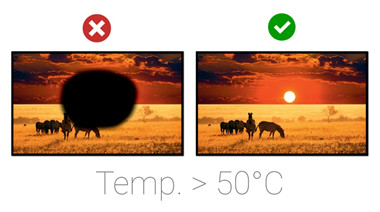

With High TNI LC
Our High Brightness LCD panel applicate the high TNI LC technology which is a great importance for panel that are operating in a strong sunlight condition. Long time exposure in outdoor strong sunlight, the panel will associated with excessive heating on the display surface, when the classic LCD panel works in such conditions, there occur black spots on the display. RS150ENT-N10 is equipped with a high temperature LCD panel capable of with standing temperatures up to to 110˚C (230°F) without blackening

RisngLCD RS150ENT-N10 utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer.

RisingStar is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests. OEM/ODM are all welcomed!
Product FAQs
How bright is the RS150ENT-N10?
It is rated at 1,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 15-inch panel, 1024×768 resolution, 1000:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What is the power input requirement for the RS150ENT-N10?
The power input requirement is 3.3V(Typ.).
What is the viewing angle?
The viewing angle is 89/89/89/89 (Typ.)(CR≥10).
Is the RS150ENT-N10 suitable for outdoor or high-ambient-light use?
Yes. Rated at 1,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
How is the screen surface treated?
The panel surface treatment is Antiglare (Haze 25%), hard coating (3H).
What panel technology does the RS150ENT-N10 use?
It uses a-Si TFT-LCD, LCM.
