    19 inch 1000nits high brightness LCD Panel

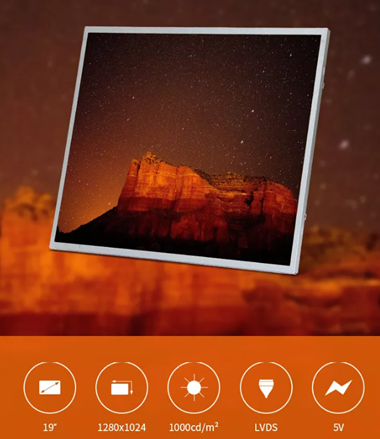

    RisingLCD RS190ENT-N10 is a 19 inch high brightness LCD panel that is equipped with LG original panel LB190E02-SL03, that has a 1280*1024 resolution, and 900:1 constrast ratio, the high bright LED backlight display provides over 1000nits of brightness, and this LCD panel application range is very wide, common ones are game consoles, HMI, handheld terminals, medical instruments, home appliances, automobiles and AOI, etc

     Panel Brand:

    LG Display

    Size:

    19"

    Panel Type:

    a-si TFT-LCM

    Panel Model:

    LB190E02-SL03

    Resolution:

    1280(RGB)×1024, SXGA, 86PPI

    Brightness:

    1000  cd/m² (Typ.)

    19 inch 1000nits high brightness LCD Panel General Description

    RisingLCD RS190ENT-N10 is a 19 inch high brightness LCD panel that is equipped with LG original panel LB190E02-SL03, that has a 1280*1024 resolution, and 900:1 constrast ratio, the high bright LED backlight display provides over 1000nits of brightness, and this LCD panel application range is very wide, common ones are game consoles, HMI, handheld terminals, medical instruments, home appliances, automobiles and AOI, etc



    19 inch 1000nits high brightness LCD Pane Main Features:

    LG original IPS LCD panel

    High resolution: 1280*1024

    Brightness up to 1000 nits

    Built-in Auto Light sensor

    Wide View angle

    Support 24 hours, 365days non-stop display



    19 inch 1000nits high brightness LCD Pane with IPS Panel,

    it does not produce image distortion and minimizes color shift when viewed from different angles, the IPS panel provides clear images and instantly optimizes screen color and brightness.

    QQ图片20220531101620



    19 inch 1000nits high brightness LCD Pane built in Auto brightness control

    Different external lighting condition requires different brightness leverls, an onboard light sensor that built-in LCD panel measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen.

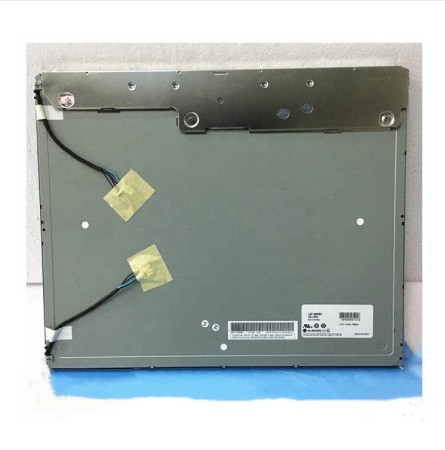

     LB190E02 LCD panel auo

    Sunlight readable LCD panel

    With the feature of 1000nits high brightness, this LCD panel can be sunligh readable under directly sunlight, and along with the extra wide 178° viewing angle, the image or the contents on the LCD panel will be easily read in different angles.



    RisingLCD is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests.  OEM/ODM are all welcomed!




    Hot Tags: 19 inch 1000nits high brightness LCD Panel , manufacturers, suppliers, factory, Customized
    Item NoRS190ENT-N12
    Panel BrandLG display
    Panel ItemLB190E02-SL03
    Size19 inch
    Panel Typea-Si TFT-LCD,   LCM
    Resolution: 1280(RGB)×1024,   SXGA, 86PPI
    Pixel FormatRGB Vertical   Stripe
    Display Area376.32(W)×301.056(H)   mm
    Outline   Size 396 × 324 × 13.3   (H×V×D)mm
    Bezel Area380.3 × 305.0 (H×V)   mm
    Surface   Treatment Antiglare,Hard   coating (3H)
    Brightness1000cd/m² RisingLCD   customized
    Constrast   Ratio.900:1
    View Angle89/89/89/89   (Typ.)(CR≥10)
    Display ModelIPS, Normally Black,   Transmissive
    Response Time11/7 (Typ.)(Tr/Td) ms
    Display Color16.7M , 74% NTSC
    BacklightLVDS (2 ch, 8-bit) ,   30 pins Connector
    Touch   Screen Without
    Panel   Weight 1.25/1.30Kgs
    Frame Rate60Hz
    Input   Voltage 5.0V(Typ.)
    Working   Temperature-0 ~ 60 °C
    Storage   Temperature-20 ~ 70 °C
    Current   State: In Production


    Quote for the Latest Price

    Ask a quote for the latest price and one of our team members will respond as soon as possible.
