21.5 Inch 1000nit Screen Lcd Panel 1920*1080

21.5 Inch 1000nit Screen Lcd Panel 1920*1080

BrandRisingStar
Model nameRS215ENT-N10
Screen size21.5 "
Resolution1920(RGB)×1080
Brightness (cd/m²)500 to 5000
Viewing angle89/89/89/89
Display color16.7M, 74% NTSC
Working frequency60Hz
Panel weight1.67Kgs
Signal interfaceLVDS
Overview Specifications Customized Services Support & Shipping

21.5″ 1000 nit Sunlight Readable LCD Panel (RS215ENT-N10)

High Brightness LCD Display for Outdoor & Industrial Applications

The RisingStar 21.5-inch 1000 nit LCD panel is designed for applications that demand clear visibility in bright environments. Featuring Full HD resolution (1920×1080), IPS wide viewing angles, and an ultra-bright 1000 nit backlight, this panel ensures sharp, vibrant images even under direct sunlight.

With advanced dual-sided LED backlight technology and 3M brightness enhancement film, the display achieves up to 40% higher brightness efficiency while maintaining low power consumption and extended lifespan of over 50,000 hours. Automatic brightness control adapts seamlessly to changing light conditions, while the rugged design ensures stable performance across extreme environments from –20 °C to 70 °C.

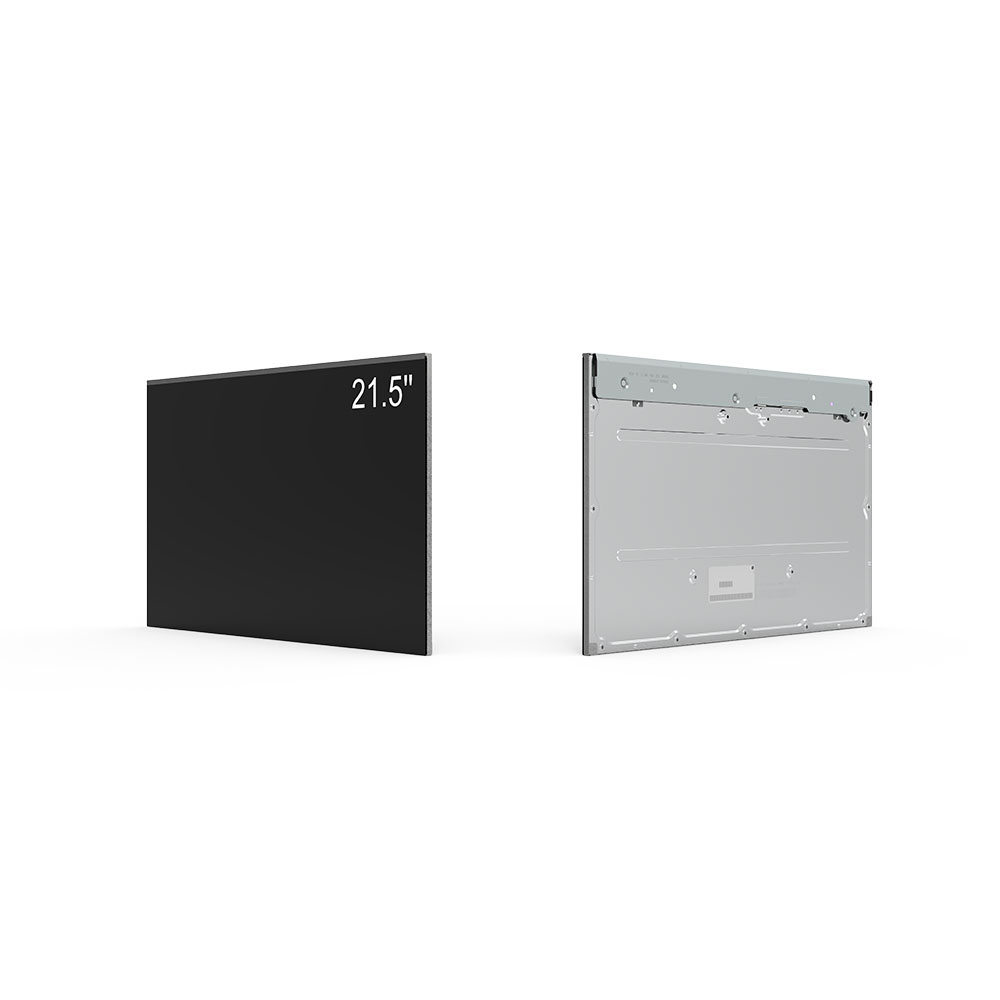

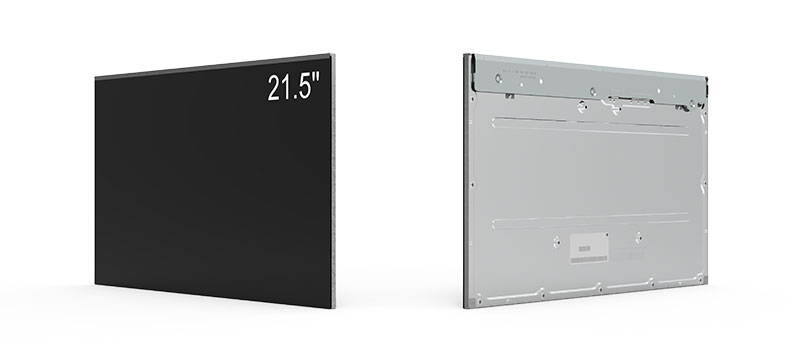

Product images

21

Application examples

21

Key Features

  • 21.5″ FHD (1920×1080) resolution – crisp details and excellent clarity.

  • 1000 nit high brightness – sunlight readable and glare-resistant.

  • IPS wide viewing angles (89° all directions) – perfect for public signage.

  • Advanced LED backlight & 3M enhancement film – efficient, energy-saving brightness.

  • Brightness control options – auto light sensor, manual setting, PWM dimming.

  • Wide operating temperature – reliable performance in extreme hot or cold conditions.

  • Long lifespan LED backlight (50k+ hours) – ideal for continuous operation.

Technical Specifications

ParameterDetails
Screen Size21.5″ TFT LCD (IPS)
Resolution1920×1080 (FHD, 102 PPI)
Brightness1000 to 5000 nits (typical)
Contrast Ratio1400:1
Viewing Angle89° (H/V, all directions)
Color Depth16.7M, 74% NTSC
Response Time5 ms (G-to-G) / 8 ms (MPRT)
Active Area476.64 × 268.11 mm
Dimensions495.6 × 292.2 × 7.2 mm
InterfaceLVDS
Backlight Lifetime50,000 hours
Operating Temperature-20 ~ 70 °C
Power Supply24 V input (compatible with 110–260 V)

Applications

  • Outdoor Digital Signage Displays – advertising & information boards.

  • Passenger Information Systems – bus stops, train stations, airports.

  • EV Charging Kiosks & Vending Machines – clear readability in daylight.

  • Retail & QSR Menu Boards – consistent visibility and sharp colors.

  • Industrial & Marine Displays – wide temperature tolerance and reliability.

Why Choose RisingStar?

With over 15 years of expertise in high brightness LCD technology, RisingStar is trusted by global partners in transportation, retail, and industrial sectors. All products are ISO 9001 certified and comply with CE / RoHS standards, ensuring quality, safety, and durability.

We back our displays with 1-year warranty and global support, offering fast response, engineering assistance, and long-term supply for OEM and ODM projects.

Resources

  • 📄 [Download Full Datasheet PDF]

  • ▶ [Watch Product Demo Video]

  • 🛠 [View Application Case Studies]

Get a Quote Today

Enhance your project with a true sunlight readable display. Contact RisingStar to request a quote, test samples, or explore custom display solutions tailored to your needs.

RS215ENT-N10 21.5 inch high brightness display 21.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

Techspecs:

Items

  Specification

  Note

Panel Brand

RisingStar


Diagonal Size

21.5"


Panel Type

a-Si TFT-Module


Resolution

1920(RGB)×1080   102PPI


Pixel Format

    RGB Vertical Stripe


Display Area

   476.64×268.11mm (H×V)


Outline Size:

495.6×292.2×7.2mm (H×V×D)


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness

   500 to 5000nits


Contrast Ratio

   1400:1 (Typ.) (TM)


waterproof level

   /


Protection level

   /


Support Color

1.67B   100% NTSC


Viewing Angle

    89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED , 50K hours , With LED Driver


Frequency:

    60Hz


Panel Weight

1.67Kgs (Typ./Max.)


Application

Outdoor digital signage


Signal Interface

LVDS


Input Voltage:

24V ,110 to 260V (Typ.).


Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
