EV Charging
LCD Panel
High-resolution monitors for real-time process control.
Sunlight readable (Up to 5000 nits) for outdoor clarity.
Integrated touch capabilities & user-friendly interface.
Increasing Demand
The global demand for electric vehicles will increase sharply in 2024. Consumers are switching from conventional cars to electric vehicles, and policies restricting fossil fuels support this market boom. Demand for charging piles will increase significantly.
Market Prospects
According to the International Energy Agency, global EV sales are expected to reach 20 million units by 2025. Global infrastructure will grow by 50 million units, including 10 million public charging units.
Excellent Marketing
Charging pile displays show charging amount, cost, and time. They provide human-computer interaction for card brushing and operations, creating new advertising opportunities for enterprises.
EV Charging
Digital
Display
Reliable, high-brightness displays engineered for outdoor infrastructure. Up to 5000 nits, IP65 protection, and wide temperature tolerance.
Visual Interface
An important component that provides a visual interface for users to monitor and control the charging process seamlessly.
Smart Interaction
Features high-resolution LCD screens with touch capabilities for status, capacity, and cost tracking.
Why Choose Our Displays?
Sunlight Readable
Optical bonding and up to 5000 nits backlight ensure legible content under direct sun, enhancing user interaction clarity.
Industrial Durability
IP65 waterproof rating, corrosion-resistant housing, and extreme temperature tolerance (–30 °C ~ +70 °C).
Energy Efficient
Smart LED backlight drive and temperature-controlled cooling minimize power draw while maintaining peak brightness.
Integrated CMS
Remote content management, over-the-air updates, and real-time monitoring for ads and operational data.
Why Choose a Dedicated Display for EV Charging Stations?
EV charging stations operate in varied outdoor environments where sunlight, weather and temperature extremes impact display readability and reliability. RisingStar displays ensure clear information delivery throughout the day and across seasons.
Sunlight Readable
Optical bonding and up to 5000 nits backlight ensure legible content under direct sun.
Industrial Durability
IP65 waterproof rating, corrosion-resistant housing, and extreme temperature tolerance.
Energy Efficient
Smart LED backlight drive and temperature-controlled cooling minimize power draw while keeping the screen bright.
Integrated CMS & IoT
Remote content management, over-the-air updates and real-time monitoring for ads and operational info.
Technical Specifications
Example Model: RS550MNX02D03-BK
| Screen Size | 55" |
|---|---|
| Brightness | Up to 5000 nits |
| Resolution | 1920 × 1080 (FHD) |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° / 178° |
| Operating Temp | –30 °C ~ +70 °C |
| Ingress Protection | IP65 |
| Backlight Lifetime | ≥ 50,000 hours |
| Housing | Aluminum alloy, powder coated |
| Mounting | Pole / Wall / Integrated pedestal |
Design & Reliability Notes
- 01 Direct-sun optical bonding reduces internal reflection and improves contrast.
- 02 Anti-glare tempered glass with AG coating for reduced specular reflection.
- 03 Active thermal management: heat pipes + forced convection design for 24/7 operation.
- 04 Modular components for quick field replacement and simple maintenance.
- 05 Certification: CE, RoHS, EMC (custom certifications available on request).
Technical Comparison Table
| Category | Typical Model | Brightness (nits) | Protection | Temp Range | RisingStar Advantage |
|---|---|---|---|---|---|
| Entry-Level | LG 22XE1J-B | ~1,500 | IP56 | -20°C~+50°C | Low brightness, shaded use only |
| Standard | Samsung OHA-S 55" | ~3,500 | IP56 + IK10 | -30°C~+60°C | Mid-range solution |
| Enhanced | DynaScan DO552LR5 | ~3,500 | IP65/IP66 | -30°C~+65°C | Strong protection |
| Interactive | Keewin 55" Touch | ~2,500 | IP66 | -30°C~+70°C | Touch support |
| Extreme | Peerless-AV Xtreme | >4,000 | IP68 | -30°C~+70°C | Sealed, fanless |
| RisingStar RS Series | 32"-86" models | 3,000 – 5,000 | IP65 / IP67 | -30°C ~ +70°C | Ultra-high brightness, OEM Support |
Quick selection recommendation: For direct sunlight installations choose displays ≥ 3000 nits.
Integration & CMS Support
RisingStar displays are designed to integrate with common EV charging controllers and back-end systems. Our panels support:
- ✓ Remote CMS for scheduling ads
- ✓ REST / MQTT APIs for telemetry
- ✓ Optional Touchscreen & QR Payment
- ✓ Standard 4G/Wi-Fi/Ethernet
Security Note
Secure boot, signed firmware updates and remote device management to reduce operational risk.
Connect with Us
"Our professional engineering team provides comprehensive OEM/ODM support for your EV charging infrastructure."
Case Studies
Global deployment success across high-traffic hubs.
Shopping Center
Commercial Parking Hub
Outcome: 30% increase in digital ad engagement and clearer user interactions during peak daylight hours with 55" 5000 nits panels.
Highway Lanes
Highway Service Area
Fast-charging lanes equipped with 32" sunlight readable displays. Reliable operation across -20°C to +55°C seasonal cycling.
Featured Solutions
27" Sunlight Readable LCD for EV Charging Station
Model:G270HAN01.0
Size:27.0 Inch
Brightness:500-5000 nits
Resolution:1920x1080

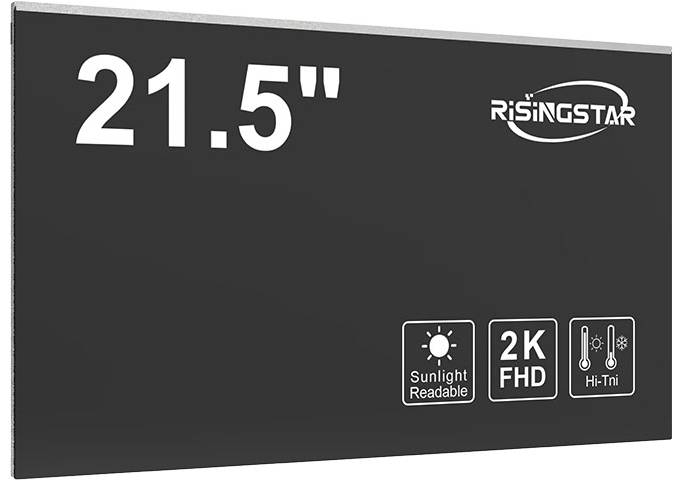

21.5" EV Charging Station Digital Display
Model:RS215-EV
Type:Industrial High Bright
Brightness:High Visiblity
Resolution:1920x1080
13.3" EV Charging Station Touch Panel
Model:RS133-T-EV
Feature:Capacitive Touch
Brightness:1000+ nits
Interface:USB/I2C
32" Public Parking Lot EV Station Display
Model:RS320-P-EV
Housing:IP65 Waterproof
Brightness:2500 nits
Cooling:Fan Cooling
24" Shopping Mall Fast EV Charging Display
Model:RS240-M-EV
Application:Advertising
Brightness:1500 nits
Type:LCD Advertising
