Specifications
Size | 15inch |
Panel item | RS150NET-N05 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black,transmissive display |
Pixels | 1024*768 |
brightness | 500-1500cd/m2 |
Contrast Ratio | 1500:1 |
Response Time | 35ms |
Viewing Angle | 85/85/85/85 |
View area | 347.45*196.8mm(H*V) |
Display Area | 304.128*228.096mm(H*V) |
Outline Size | 326.5*253.5*10.1mm(H*V*D) |
Signal Type | LVDS |
Refresh Rate | 60Hz |
Operating Temperature | -20~70 °C |
Storage Temperature | -30~80 °C |
Aspect Ratio | 4:3 |
Display color | 16.7m |
Surface Treatment | Haze 25%,Hard coating(3H) |
Weight | 0.95kgs |

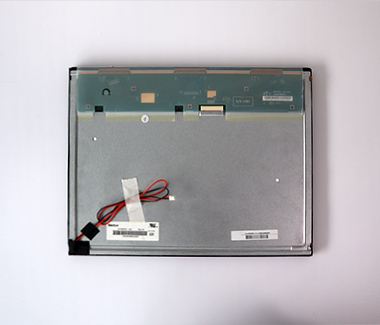

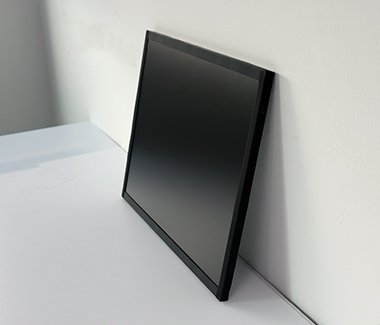

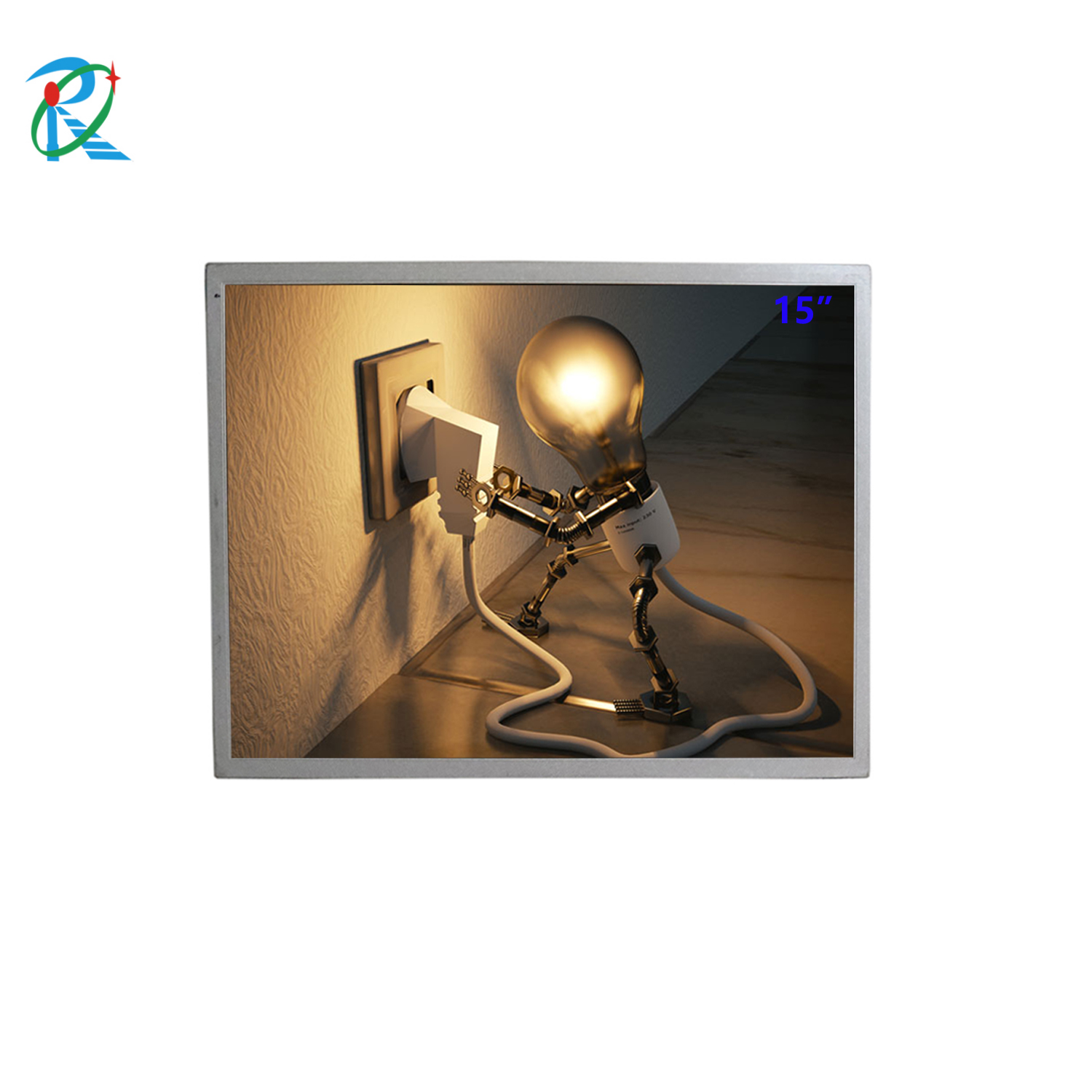

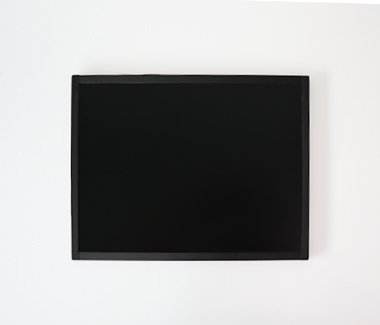

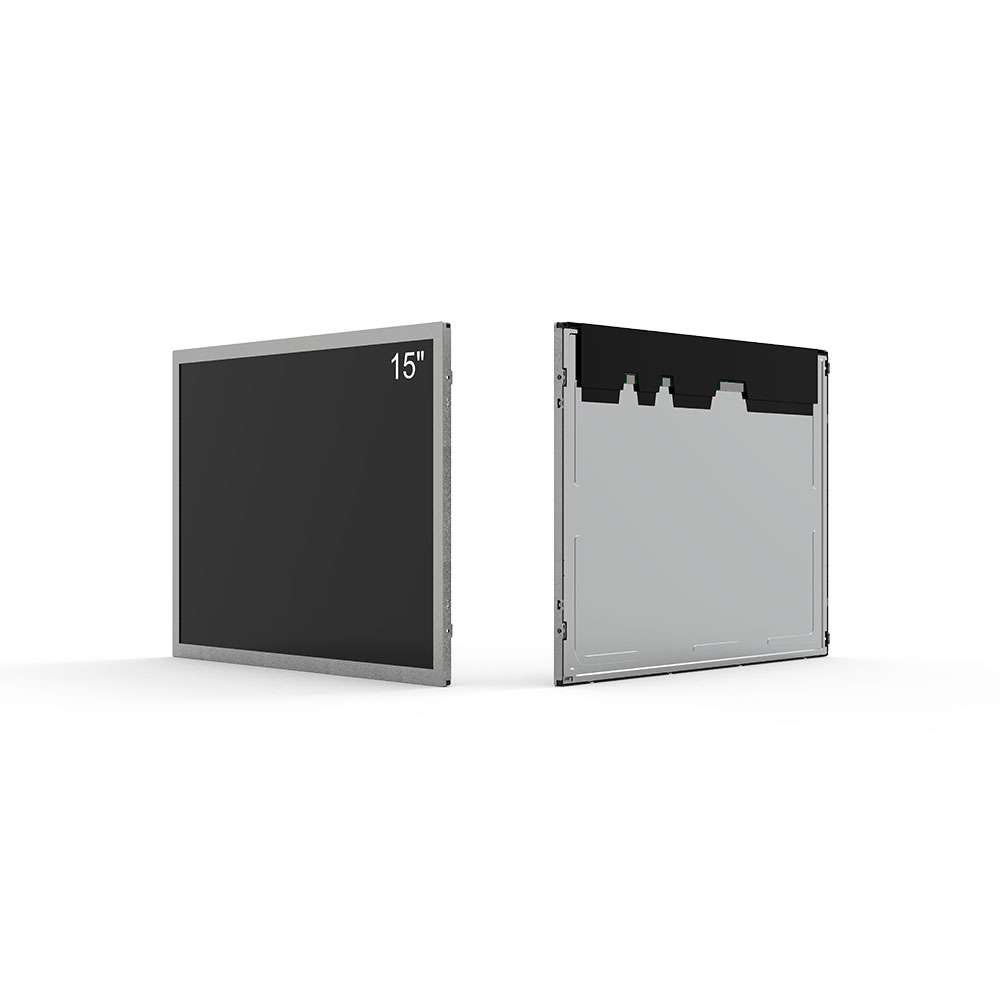

RS150ENT-N05 is a 15-inch LCD display with 500 nits brightness and 1024×768 resolution. Its operating temperature range is -20 °C to 70 °C.
Risingstar 15inch 1024*768 ,Brightness 500nits Outdoor High Light LCD Screen From China , LVDS,IPS, LCD Display Screen,The Brightness Can Be Customized.As one high resolution screen enterprises in China, we warmly welcome you to wholesale bulk cheap 15" 500nits, high resolution screen made in China here and get quotation from our factory. All customized products are with high quality and competitive price.
Product FAQs
How bright is the RS150ENT-N05?
It is rated at 500 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 15-inch panel, 1024×768 resolution.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS150ENT-N05 use?
It adopts LVDS interface.
What is the viewing angle?
The viewing angle is 85/85/85/85.
How is the screen surface treated?
The panel surface treatment is Haze 25%,Hard coating(3H).
What panel technology does the RS150ENT-N05 use?
It uses a-Si TFT-LCD.
