Specifications

Size

43inch

Panel item

RS430NET-N10

Panel type

a-Si TFT-LCD

Display mode

 IPS,Normally black,transmissive display

Pixels

3840*2160

brightness

1000-5000cd/m2

Contrast Ratio

1200:1

Response Time

6ms

Viewing Angle

89/89/89/89 (Min)

View area

945.18*533.42mm(H*V)

Display Area

944.3*534.4mm(H*V)

Outline Size

973.8*567*47mm(H*V*D)

Signal Type

LVDS

Refresh Rate

60Hz

Operating Temperature

-20~70 °C

Storage Temperature

-30~80 °C

Aspect Ratio

16:9

Display color

16.7m(8-bit)

Backlight Voltage

24V

Backlight Power Consumption

180w

Surface Treatment

Haze 1%,Hard coating(3H)

Weight

12kgs

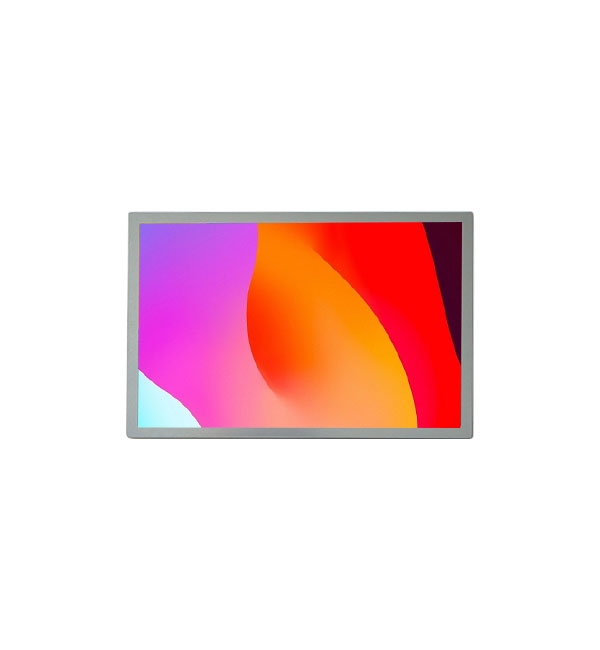

RS43750ENT-N20 is a 43-inch LCD display with 2,000 nits brightness, 3840×2160 resolution and 1200:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

           FHD 43 inch industrial lcd panel, 4k outdoor lcd display with RisingStar brand.The brightness 2000nits. The brightness can be customized.High Quality Metal Frame High Color Saturation ,Specializes in producing ultra-high brightness LCD modules use a dedicated system for LED backlight  that can be easily viewed in direct sunlight,

          At the maximum power output, the lumen of the LCD screen can reach more than 2000 Nit. Under such lumen conditions, users can read the contents of the screen outdoors or even under strong sunlight.  With broad viewing Angle and realistic color display, the module can work steadily for a long time and display bright colors and clear images no matter in the environment of direct sunlight or full darkness.

          The product has excellent characteristics and good reliability for use in harsh environment, and provides good convenience and quick matching for customers' equipment. Customers can complete the finished product through this module.  Can be widely used in outdoor square, electronic platform, large supermarket chain stores, stadiums, airports and other indoor and outdoor environment media image playback.

Product FAQs

How bright is the RS43750ENT-N20?

It is rated at 2,000 nits (cd/m²) brightness.

What are the main display specifications?

It uses a 43-inch panel, 3840×2160 resolution, 1200:1 contrast ratio.

What is the operating temperature range?

The operating temperature range is -20 °C to 70 °C.

Is this product available for OEM or ODM customization?

Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

What interface does the RS43750ENT-N20 use?

It adopts LVDS interface.

What is the power input requirement for the RS43750ENT-N20?

The power input requirement is 24V.

What is the viewing angle?

The viewing angle is 89/89/89/89 (Min).

Is the RS43750ENT-N20 suitable for outdoor or high-ambient-light use?

Yes. Rated at 2,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

How is the screen surface treated?

The panel surface treatment is Haze 1%,Hard coating(3H).

What panel technology does the RS43750ENT-N20 use?

It uses a-Si TFT-LCD.
