| Specification | Details |
|---|---|

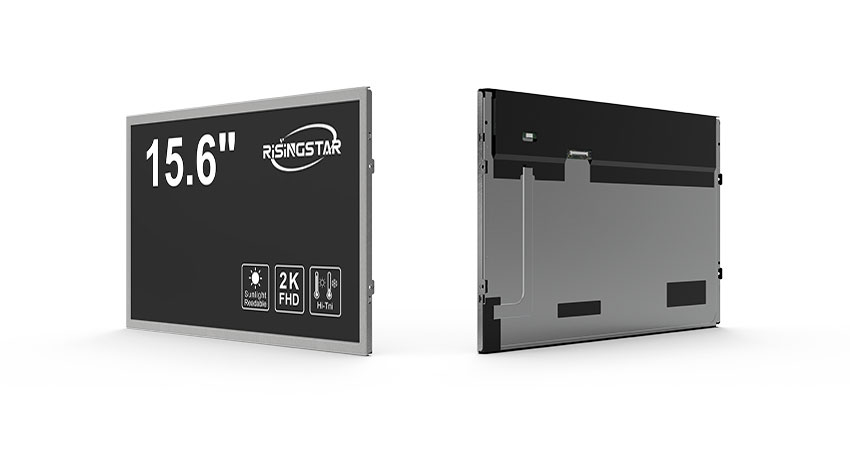

| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 141 PPI, RGB Vertical Stripe |
| Active Area (AA) | 344.16 mm (W) × 193.59 mm (H) |
| Outline / Opening Area | 346.20 mm (W) × 195.60 mm (H) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~ 5000 nits (typical) |
| Contrast Ratio | 700:1 (typ., transmissive) |
| Recommended Viewing Angle | Full viewing angle |
| Response Time | 25 ms (typical, Tr + Td) |
| Viewing Angle | 80/80/80/80 (Min.) (CR ≥ 10) Left / Right / Top / Bottom |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 262K colors, 72% NTSC |
| Backlight | WLED, 50,000 hours, with LED driver |
| Weight | 706 g (Typ.) / 740 g (Max.) |
| Refresh Rate | 60 Hz standard; MEMC 120 Hz (60 Hz input); 120 Hz panel + 120 Hz backlight; 240 Hz (60 Hz input) |
| Interface | 30-pin eDP (2 Lanes), HBR1 (2.7G/lane), Terminal type |
| Supply Voltage | 3.3 V (typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 60 °C |
Display Technology: This panel uses a high-quality IPS (In-Plane Switching) mode, providing wide viewing angles, consistent color, and low distortion, suitable for industrial and medical applications.
High Brightness & Contrast: With adjustable brightness up to 5000 nits, it can be used in bright ambient environments, including sunlight-readable scenarios.
Durability: The matte hard coating (3H) ensures scratch resistance and reduces glare, ideal for industrial use.
Applications:
Industrial control panels and HMI devices
Medical monitors and healthcare equipment
Outdoor digital signage (with sunlight-readable brightness)
Automotive or specialized portable displays
Any scenario requiring wide viewing angles and high durability
| Specification | Details |
|---|---|
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 141 PPI, RGB Vertical Stripe |
| Active Area (AA) | 344.16 mm (W) × 193.59 mm (H) |
| Outline / Opening Area | 346.20 mm (W) × 195.60 mm (H) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~ 5000 nits (typical) |
| Contrast Ratio | 700:1 (typ., transmissive) |
| Recommended Viewing Angle | Full viewing angle |
| Response Time | 25 ms (typical, Tr + Td) |
| Viewing Angle | 80/80/80/80 (Min.) (CR ≥ 10) Left / Right / Top / Bottom |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 262K colors, 72% NTSC |
| Backlight | WLED, 50,000 hours, with LED driver |
| Weight | 706 g (Typ.) / 740 g (Max.) |
| Refresh Rate | 60 Hz standard; MEMC 120 Hz (60 Hz input); 120 Hz panel + 120 Hz backlight; 240 Hz (60 Hz input) |
| Interface | 30-pin eDP (2 Lanes), HBR1 (2.7G/lane), Terminal type |
| Supply Voltage | 3.3 V (typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 60 °C |
