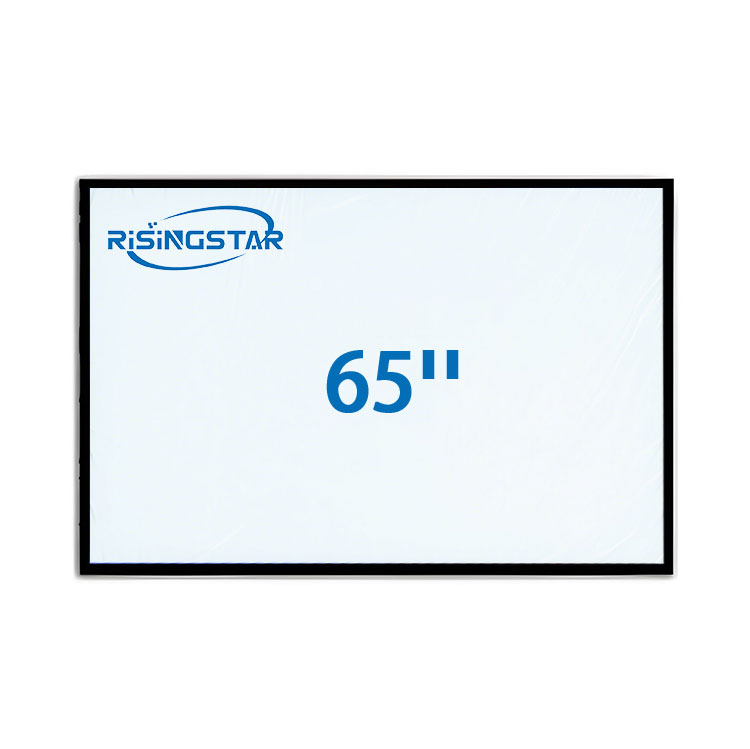

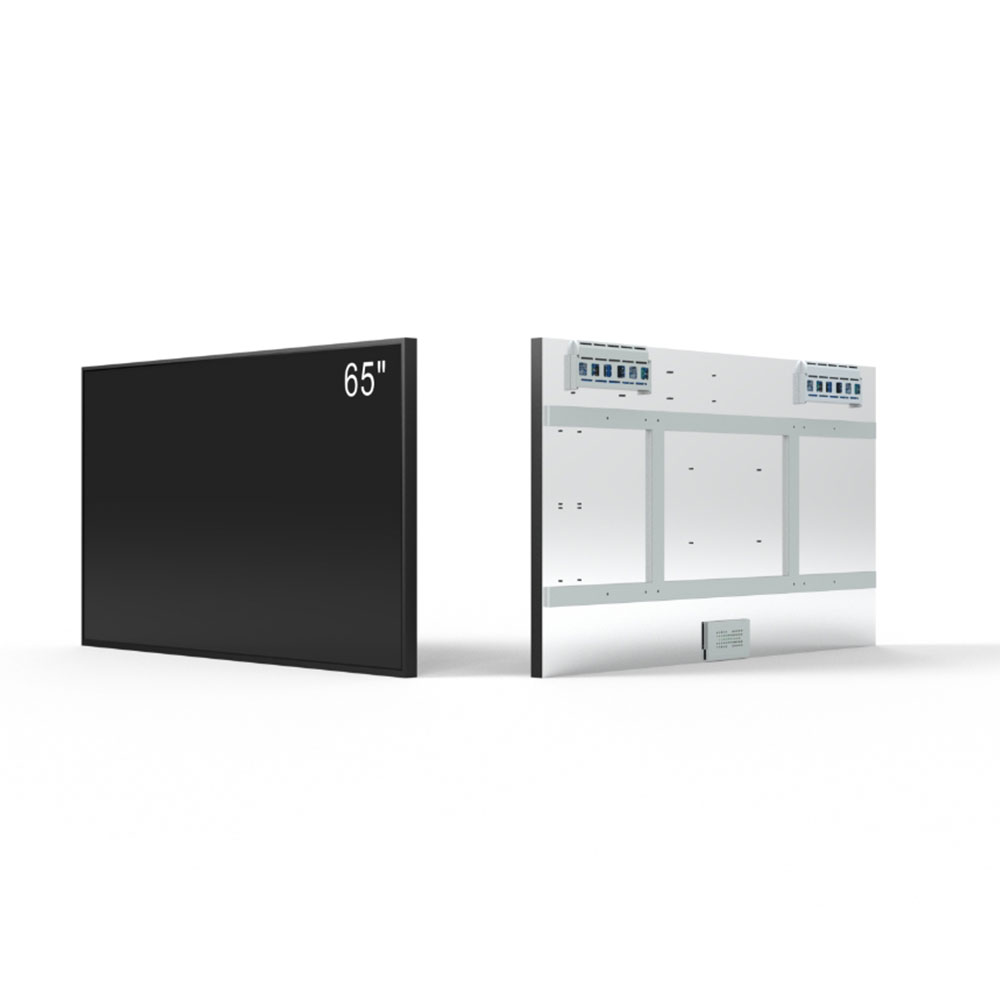

The RisingStar 65-inch High Brightness Outdoor Waterproof LCD Monitor is engineered for demanding outdoor environments where performance, reliability, and visibility are paramount. Designed for digital signage integrators, transportation hubs, retail chains, and commercial distributors, this monitor offers unparalleled clarity, durability, and energy efficiency for both short-term promotions and long-term installations.
Application case
Technical Parameters
| Specification | Details |
|---|---|
| Panel Size | 65 inches |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 68 PPI, RGB Vertical Stripe |
| Active Display Area | 1428.48 mm (W) × 803.52 mm (H) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Surface Treatment | Anti-Glare (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full View Angle |
| Optical Mode | ADS, Normally Black, Transmissive |
| Panel Series | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angles (L/R/U/D) | 89°/89°/89°/89° (Typ., CR≥10) |
| Response Time | 8 ms (Typ., G to G) |
| Color Support | 1.07B colors, 72% NTSC |
| Backlight Type | 5 strings WLED, 50,000 hours, with LED driver |
| Screen Weight | 18.9 kg (Typ.) |
| Suitable For | Digital Signage |
| Refresh Rate | 60Hz; 120Hz (60Hz input, built-in MEMC); 120Hz+120Hz (panel+backlight); 240Hz (60Hz input, built-in MEMC) |
| Touch Function | None |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Supply Voltage | 12.0V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
High Brightness Display: With an ultra-high brightness of up to 5000 nits, this LCD panel ensures sunlight-readable clarity even in direct outdoor sunlight.
Ultra-Wide Viewing Angles: Featuring 178° horizontal and vertical viewing angles, the display guarantees consistent image quality from any perspective, ideal for public areas, transit stations, or EV charging kiosks.
Industrial-Grade Color Accuracy: Supports 1.07B colors with 88% NTSC coverage, providing vivid and true-to-life visuals for advertising, wayfinding, or informational content.
High Contrast Ratio: With 4000:1 contrast, text, images, and graphics are sharp, reducing glare and reflections under extreme lighting conditions.
IP65 Waterproof & Dustproof: Fully sealed to prevent water and dust ingress, making it suitable for all-weather outdoor installations.
Industrial-Grade Thermal Management: Advanced heat-dissipation design ensures low operating temperatures, stable performance, and long-term reliability up to 50,000 hours.
Wide Operating Range: Designed to operate reliably from -20°C to 60°C, ensuring continuous functionality in extreme climates.
Durable Construction: Lightweight aluminum casing provides both strength and portability, allowing easy integration into kiosks, signage enclosures, or transit displays.
Versatile Mounting Options: Compatible with standard VESA mounting systems, wall mounts, or custom outdoor enclosures.
Multiple Input Interfaces: Supports HDMI, DisplayPort, VGA, and DVI, allowing seamless connection with media players, PCs, or networked signage systems.
Remote Management Ready: Supports integration with digital signage software for centralized content scheduling, monitoring, and diagnostics.
Public Transportation: Ideal for bus stops, subway stations, and train terminals as a high-visibility passenger information display.
Retail and Advertising: Perfect for outdoor advertising, shopping centers, and storefront digital signage, ensuring brand messages remain clear and impactful under all lighting conditions.
EV Charging and Fuel Stations: Provides interactive information and advertising at outdoor kiosks and charging stations.
Urban Smart City Deployments: Integrates seamlessly into city information boards and public service displays.
Proven Expertise: Decades of experience in industrial-grade display manufacturing, delivering reliable solutions worldwide.
Trusted Quality: Rigorous testing for IP65 compliance, extreme temperature operation, and sunlight readability ensures high customer satisfaction.
Comprehensive Support: Offers detailed technical documentation, installation guides, and responsive after-sales service.
Scalable Solutions: Available in multiple sizes and configurations to suit various projects, from single-site installations to city-wide digital signage networks.
CE, FCC, RoHS Compliant – meets international safety and environmental standards.
Industrial-Grade Reliability – tested to meet long-term durability standards for outdoor and commercial deployments.
Real-World Case Studies: Installed in major transportation hubs, retail environments, and EV stations worldwide, demonstrating performance and reliability.
Flexible Ordering: Options for bulk purchases, custom enclosures, or OEM integration.
Support & Warranty: Full technical support and standard warranty coverage provide peace of mind for integrators and distributors.
Elevate your outdoor digital signage projects with RisingStar’s 65-inch High Brightness Outdoor Waterproof LCD Monitor – the ultimate combination of visibility, durability, and integration flexibility.
Customized Multi-Size Solutions for Every Need
Offering a full range of display sizes tailored to your space, our one-stop service ensures seamless integration—from outdoor charging stations to high-traffic public areas. Waterproof, weatherproof, and engineered for 24/7 reliability, we simplify your project while maximizing visibility and durability.
Size (inch) | 21.5 | 32 | 43 | 49 | 55 |
Model number | RS215MNX01D01 | RS320HNX02D05 | RS430HNX02D05 | RS490HNX02D05 | RS550MNX01D01 |
Brightness (cd/m2) | 1000 | 3000 | 2000 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 80 | 160 | 180 | 240 | |
Operating temperature | 0 ~ 50℃ | -20 ~ 50 ℃ | -20 ~ 50 ℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Out of the Ordinary: This series of displays has special housing crave to increasing the ability of head dissipition without any fans or A/C inside it, this design will decreasing the poewr consumption and the running cost.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from RisingStar and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

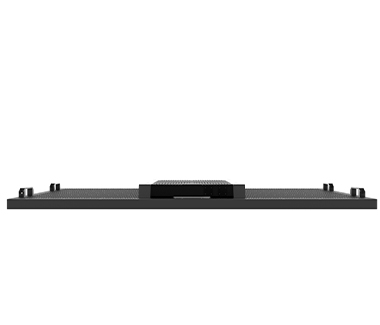

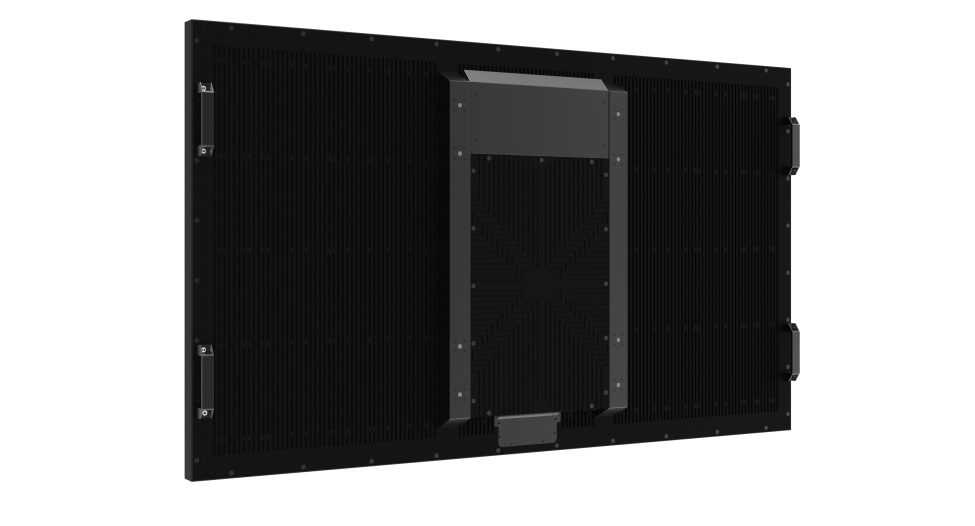

Rugged and unique housing: This display has unique outershell, you can see the crave on the display is as sort of thermal dissipition design by our own design, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possible OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineers will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
65-inch window facing display series:
RS650LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS650MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS650MNX01D01, classic design, the standard type of 43-inch window facing display
| Specification | Details |
|---|---|
| Panel Size | 65 inches |
| Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 3840 (RGB) × 2160, UHD, 68 PPI, RGB Vertical Stripe |
| Active Display Area | 1428.48 mm (W) × 803.52 mm (H) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Surface Treatment | Anti-Glare (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full View Angle |
| Optical Mode | ADS, Normally Black, Transmissive |
| Panel Series | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angles (L/R/U/D) | 89°/89°/89°/89° (Typ., CR≥10) |
| Response Time | 8 ms (Typ., G to G) |
| Color Support | 1.07B colors, 72% NTSC |
| Backlight Type | 5 strings WLED, 50,000 hours, with LED driver |
| Screen Weight | 18.9 kg (Typ.) |
| Suitable For | Digital Signage |
| Refresh Rate | 60Hz; 120Hz (60Hz input, built-in MEMC); 120Hz+120Hz (panel+backlight); 240Hz (60Hz input, built-in MEMC) |
| Touch Function | None |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Supply Voltage | 12.0V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
