15 inch industrial touch LCD display with 1000 nits brightnesss
| Brand | Risingstar |
| Model name | / |
| Screen size | 15 " |
| Screen type | Open Frame Monitor |
| Resolution | 1024(RGB)×768 |
| Brightness (cd/m²) | 1000 |

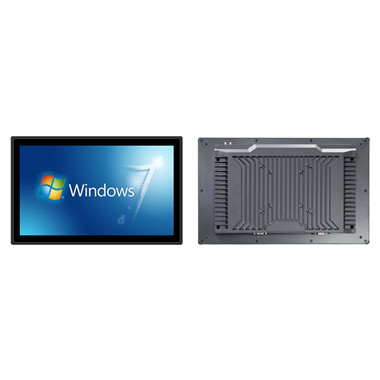

15 inch Industrial touch LCD Display with 1000 nits Brightnesss
RisingLCD RS150ENT-N10 is a 15 inch industrial touch display, it makes smart touch more stable and simpler. military-grade quality, more stable operation, suitable for applications in various harsh environments

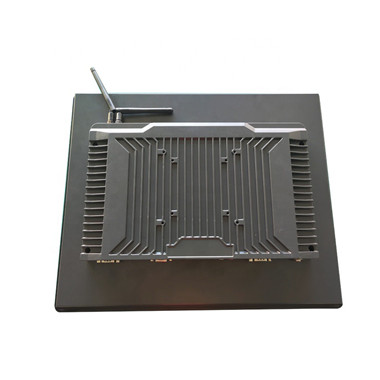

Fully enclosed machine protection, 24-hour work, powerful performance, stable operation, support for various installations, Fish scale heat sink, so that the heat can be dissipated faster.
Good compatibility, can be customized, or choose the system, Windows or Linux, Strong performance, 24/7 uninterrupted and stable operation.
Power management chip is used to meet industrial-grade performance requirements, with 24-hour continuous and stable operation capability.

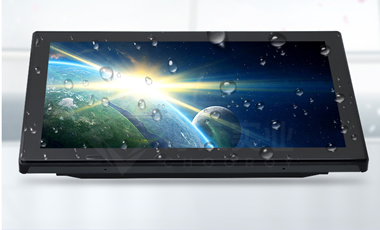

Industrial grade IP65 dustproof and waterproof, pure flat panel IP65 protection grade design, effectively preventing dust and water droplets from invading the inside of the machine

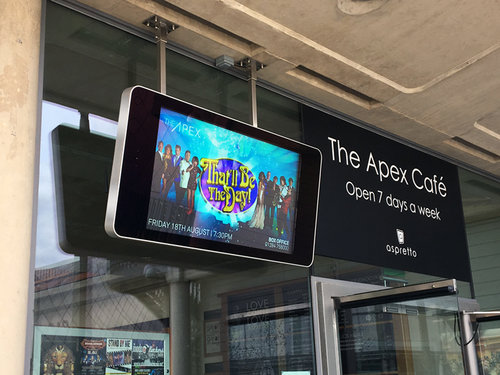

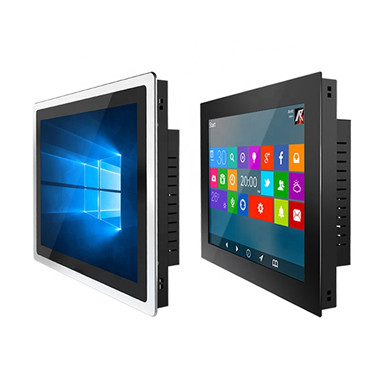

Various installation to meet your different demands.
| Panel Features | Input Ports | ||
| Screen Size | 15" | USB OTG | 1 |
| Active Display Area | 304.13(H) x 228.1 (V) | USB | 1 |
| Native Resolution | 1024(RGB)×768 | TF | 1 |
| Brightness (Type) | 1000 Nits | RJ45 | 1 |
| Contrast Ratio (Type) | 1000:1 | HDMI out | 1 |
| Viewing Angle | 178(H)/178(V) | Audio Feature | |
| Display Color | 8 bit/16.7M | Speaker Power Output | yes |
| Frame Rate | 60Hz | DC IN | 12V 1.2A |
| Backlight | LED | Power consumption( Watt) | 14.4W(Max) |
| Life Time | >up to 50,000 hoursrs | Mechanical Design | |
| Touch | Capacitive Touch | Chassis Material | 金属 |
| Functions | Chassis Colors | 黑色／Black | |
| OS | Andriod 7.1.2 | Product Size | 378*297*60.8mm |
| Motherboard model | RK3288 | Packing Carton Dimension(W×D×H) | 390*480*130mm |
| CPU | Cortex-A17 | Net Weight | 3.3(KG) |
| Main frequency | 1.8 GHz | Gross Weight | 4.0(KG) |
| RAM | 2GByte | Accessory | |
| Flash | 16GByte | Remote Control | 1 |
| Networking support | Built-in WiFi | Adapter | 1 |
| Bluetooth | BT4.2 | Wall bracket | 1 |
| Picture format | JPG、JPEG、BMP、GIF、PNG, etc | OTG cable | 1 |
| Audio | MP4、WAV、APE、FLAC、AAC etc. | ||
| Video format | Support rich video format: etc.H.265，H.264， VP8, MAV, WMV, AVS, H.263, MPEG4 etc. | ||
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
