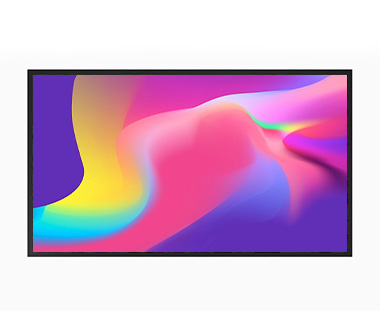

86 inch 4000 nits wide temperature LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RS860ENT-GD40 is one of the sub-series of the "info-kiosk-use-LCD-panel-series" of high brightness TFT LCD panel from Risingstar with multiple versions, this series also include multiple sizes from 32-inch to 110 inch, all panels are design for outdoor info kiosk. RS860ENT-GD40 use the own design backlight structure allowed the average brightness reach 4000-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brigthness than most of our competitors, for the specific 86-inches we can reached 4000 nits even much higher, more information please searching on our website: www.risinglcd.com
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.

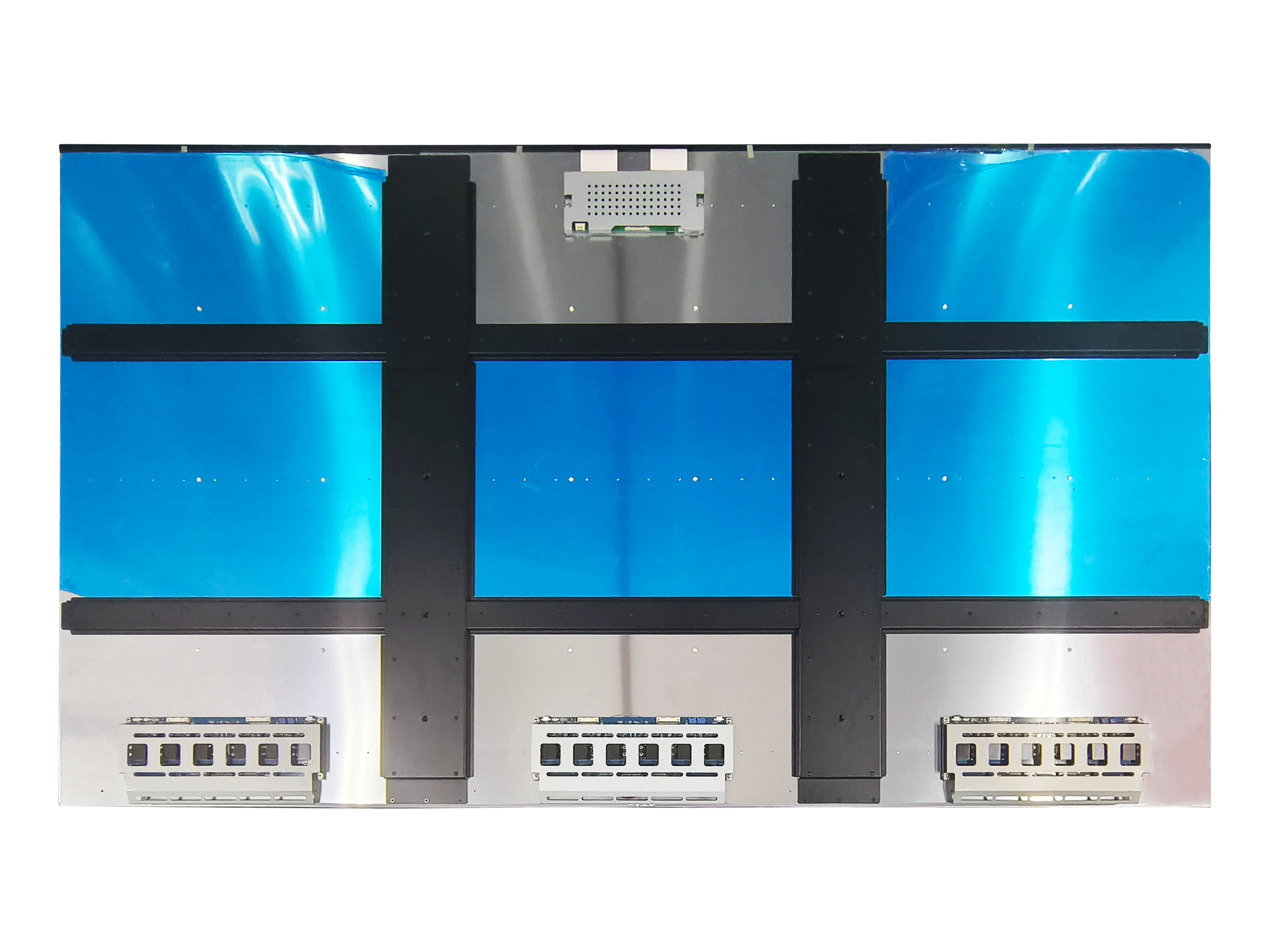

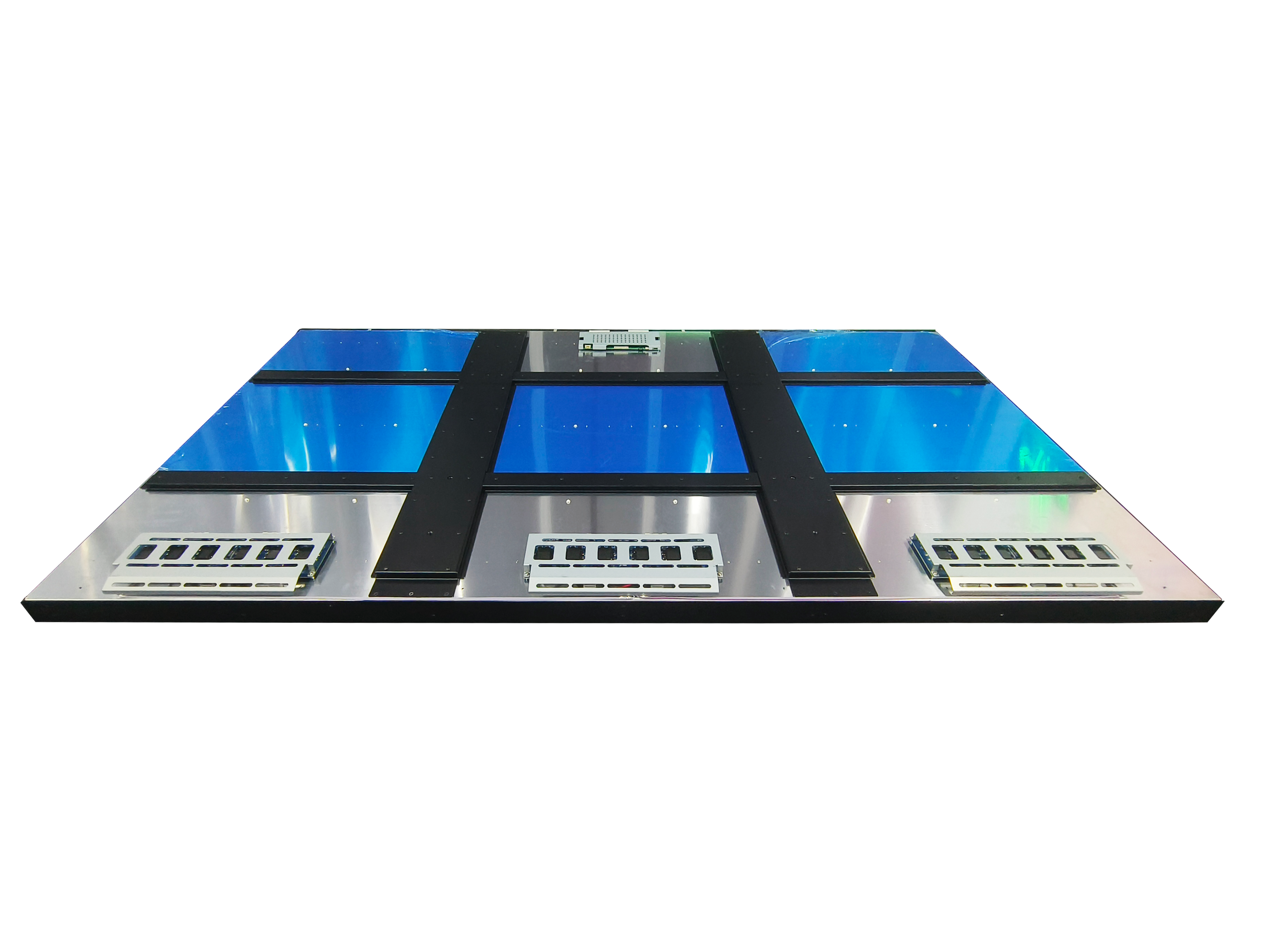

Direct-LED backlight structure: Risingstar own design LED bubble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the specific 32-inch panel, it can reached 3000-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.

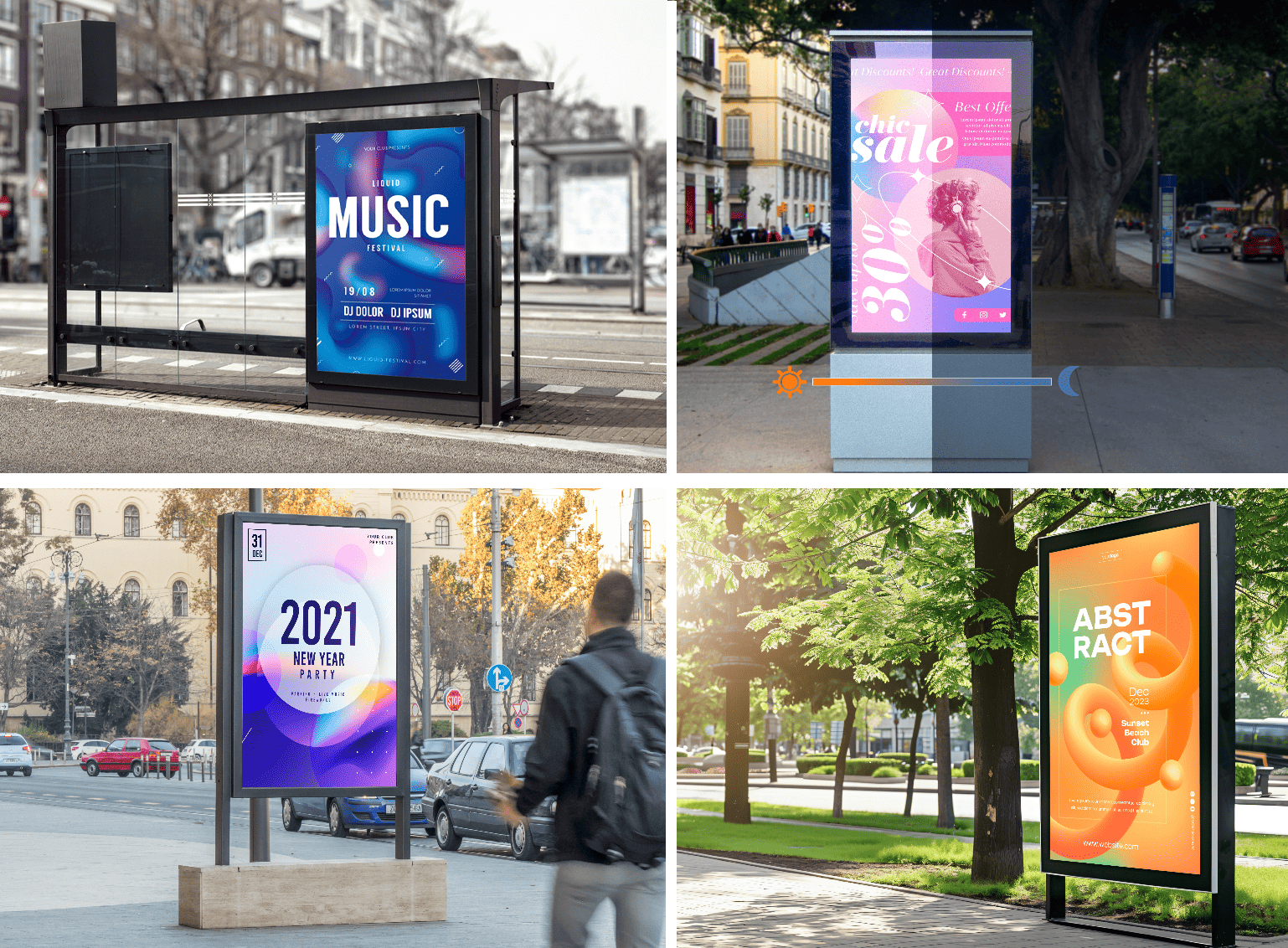

Large Size LCD Panel Application
High brightness LCD panel:
49 inch 2000 nits high brightness TFT LCD panel
| Panel | Screen Size | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch | 86 inch |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | |
| Brightness (nits) | 1500 to 5500 | ||||||
| Display Area(mm) | 699*393 | 941*529 | 1074*604 | 1209*680 | 1428*803 | 1872*1053 | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | ||||||
| Brightness Control | Auto-Sensitivity | ||||||
| Product Specification | Products Size (H*V*D）(mm) | 1700* 600*220 | 1950*730* 220 | 2100 *815*220 | 2100* 890*220 | 2300*1020*220 | 2700*1280*300 |
| Power Supply | AC 208-240V/ | ||||||
| 50Hz/60Hz | |||||||
| Cooling System | Smart Direct Ventilation | ||||||
| Power Consumption | ≤160W | ≤280W | ≤380W | ≤400W | ≤500W | ≤1200W | |
| Operation Temperature | -20℃-45℃ | ||||||
| Operation Humidity | 5%-90%RH | ||||||
| IP Rating | IP55 | ||||||
| Gross Weight | 90kg | 110kg | 130kg | 150kg | 180kg | 240kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | ||||||
| Option | AD Board | Android Motherboard, Computer Motherboard | |||||
| Network Transmission | Standalone Mode、WIFI、3G、4G | ||||||
| Touch | 10 points touch, 20 points touch, Capacitive touch | ||||||
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
