OM55B 55 inch outdoor window facing high brightness display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

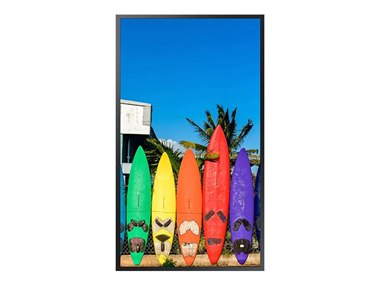

OM55B 55 inch outdoor window facing high brightness display
OM55B outdoor window facing display has a 3840*2160 ultra high resolution providing a 16:9 aspect ratio, the DLED high bright backlight display provides over 3000nits of brightness making the screen sunlight readable fro outdoor application.
3000 nits High Brightness
Image's high brightness is a highly desired feature in a situation of strong sunlight conditions, especially for storefront window. With the high brightness 3000 nits, the OM55B outdoor window facing screen displays content fully readable.it is be successfully used e.g. in expositions, stands, trains and buses, digital signage or other outdoor applications.
Crystal Processor 4K
OM55B outdoor window facing display upscaling feature by Crystal Processor 4K technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.
Dynamic Crystal Display
OM55B outdoor window facing LCD display immerses your customers in every picture with a wider range of color. That display creates lifelike images allowing the viewer to see even the subtlest details.
89mm Slim Design:

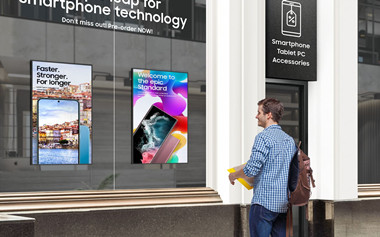

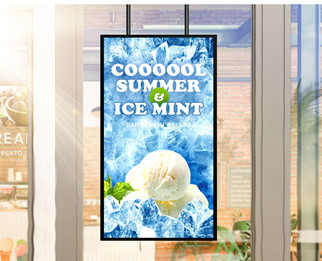

OM55B outdoor window facing display slim and robust design makes it easliy installed in store windows,save much space, OM55B outdoor window LCD display can captivate customers with its vivid image quality and quiet operation. this advertising window lcd display helps business enhance their brand image while enriching the customers' shipping experience.
Built-in MagicINFO Player
OM55B outdoor window facing display embedded MagicINFO Player that boosts performance, simplifies content management and offers seamless content playback.
| Specification Parameter | ||
| LCD Panel | Size | 55 inch |
| Panel Brand | Samsung | |
| Display Area | 1209.6(H) x 680.4(V)mm | |
| Brightness | 3000nits | |
| Resolution | 3840*2160 | |
| Aspect Ratio | 16:09 | |
| Contrast | 1300/1 | |
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |
| LED | DLED | |
| Lifetime | 50000H | |
| Control System | Intelligent dimming | Support |
| Intelligent temperature control | Support | |
| Remote Control | Support | |
| Electric Parameter | Input Voltage | AC90-264V,50/60HZ |
| Maximum Power | 240W | |
| Outer Shell | Shell Material | Metal Plate |
| Product Dimensions | 1254.5*725.4*89mm | |
| Weight | 70KG | |
| Operating Environment | Environmental Conditions | Semi-outdoor |
| Operating Temperature & humidity | -20 ~ 70 °C | |
| Multimedia | Main-board | Android /PC/ HD Driver Board (Optional) |
| IO interface | HDMI/VGA/DVI/USB/RJ45 | |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
