58.6 inch ultra wide stretch 700 nits brightness LCD display

58.6 inch ultra wide stretch 700 nits brightness LCD display

BrandLG/AUO/BOE
Model nameRS58.6NET-NE7
Screen size58.6"
Screen typeStretched LCD
Resolution3840(RGB)×1080
Brightness (cd/m²)700
Overview Specifications Customized Services Support & Shipping

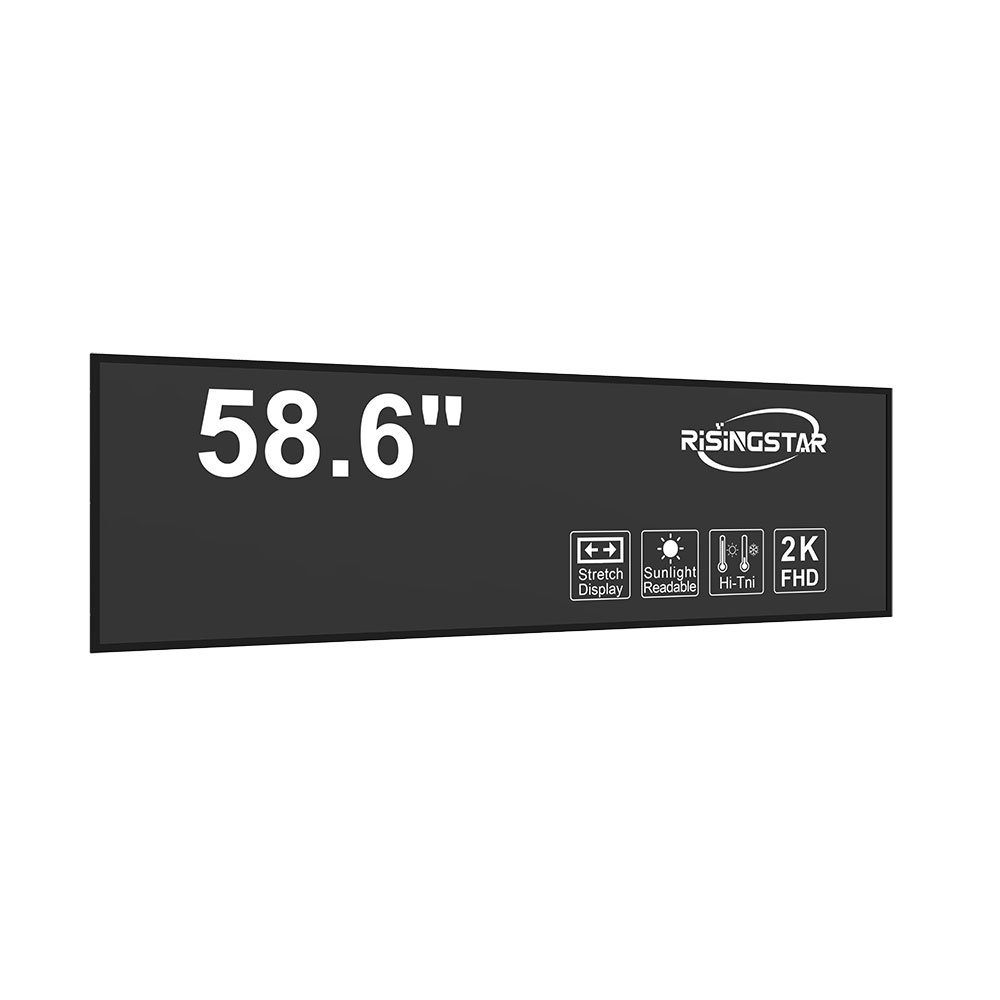

The RS58.6NET-NE7 is a 58.6 inch ultra wide stretch color TFT-LCD display with special aspect ratio 16:4.5 and wide resolution 3840*1080, it is RisingLCD stretch bar LCD display series product which designed for high brightness 700nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and high brightness for digital signage, public transportation, exhibition hall, department store, and vending machine.

· 58.6" stretched LCD

· Stretched display (aspect ratio of 16:4.5)

· Brightness of 700 nits

· Active area: 1428.48(H)*401.76(V)

· Dimension: 1444.08(H)×420.36V)×27.58/57.2(D) mm

· Resolutions: 3840*1080

· Contrast ratio: 1200:1

· Wide viewing angle of 178° (H), 178° (V)

· Low power consumption

· MTBF: 50,000 hours

RS58.6NET-NE7 58.6 inch high brightness display 58.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal58.6 inch
Model NoRS58.6NET-NE7
Active Area 1428.48(W)×401.76(H) mm
Pixels3840(RGB)×1080, 41PPI68
Physical Size1444.08(H)×420.36V)×27.58/57.2(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )700 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1200:1 (Typ.)
Optical Response Time8 (Typ.)(G to G)
Back light down edge side, 2-led light bar
OSAndroid 8.0
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M, 72%  NTSC
Surface Treatment Antiglare (Haze 28%)
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Weight [g] 11.8Kgs
VESA Mounting 300*400mm


inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
