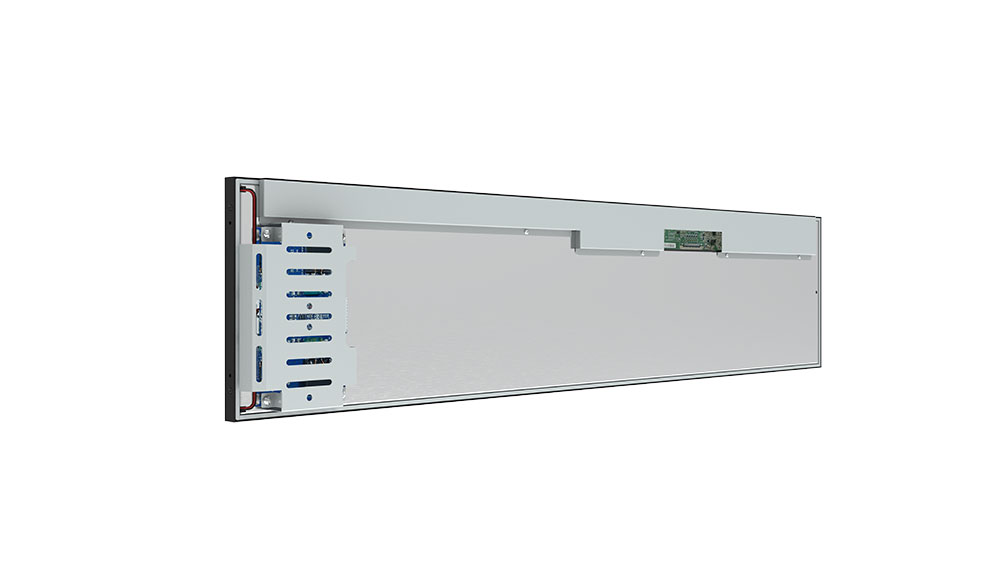

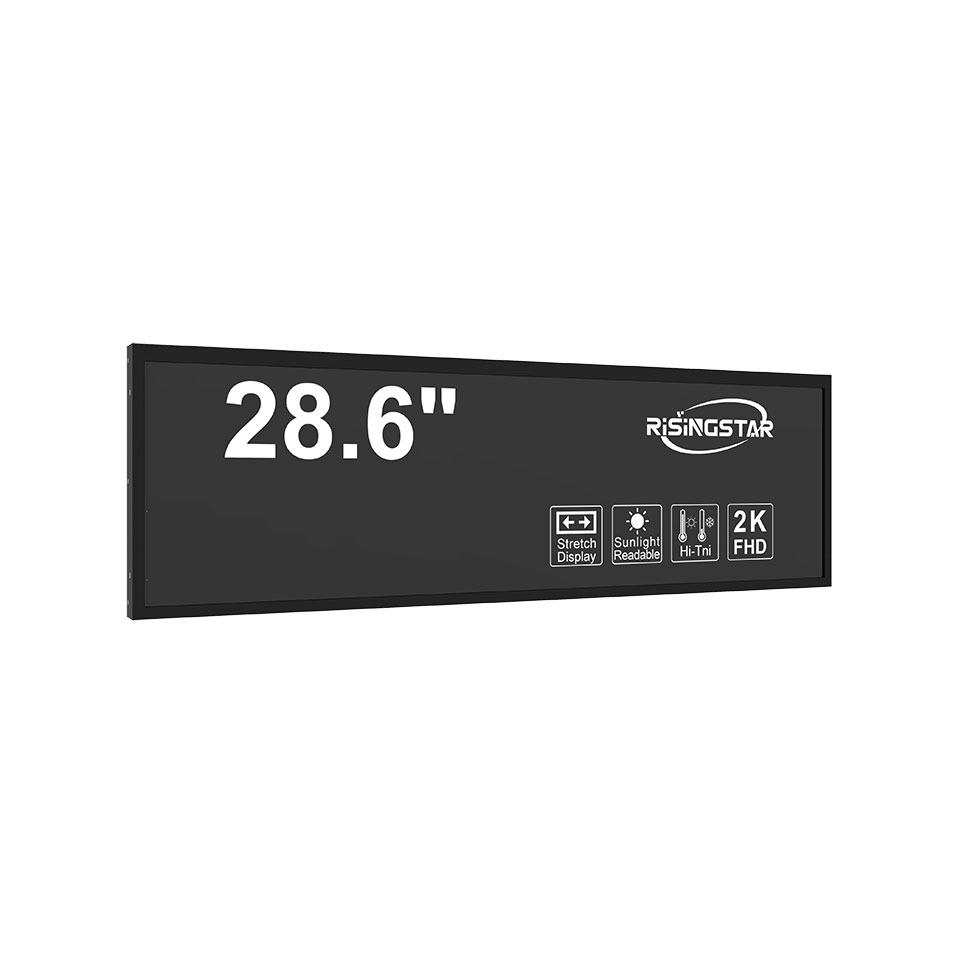

RisingStar’s 28.6 inch sunlight readable stretched bar LCD display is designed for industrial and outdoor environments requiring ultra-wide aspect ratios and high brightness performance. With a resolution of 1920×540 and brightness options up to 5000 nits, this display guarantees exceptional visibility even under direct sunlight. Its AHVA technology ensures full viewing angles (89/89/89/89), while the rugged, matte surface minimizes glare. Featuring a lightweight aluminum structure, 50,000-hour WLED backlight, and an operating temperature range of -10°C to 60°C, this fanless, driverless solution is ideal for continuous use in demanding conditions.
Application Fields

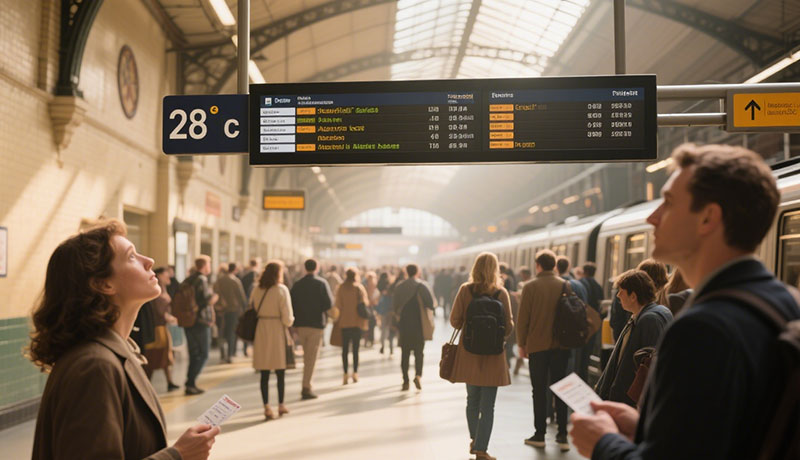

Perfect for transportation systems (bus, metro, railway), EV charging stations, gas pumps, retail shelf displays, vending machines, and outdoor digital signage where space is limited but visibility is critical.
Business Value
The 28.6" stretched bar display enhances user engagement and information delivery with minimal installation space. Its durability and brightness reduce maintenance costs, improve operational uptime, and deliver long-term ROI in smart city, mobility, and retail sectors.
| Item | Specification |
|---|---|
| Panel Size | 28.6 inches (Half-cut from 32.0-inch) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540 (69 PPI) |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 196.425 (H) mm |
| Bezel Opening Area | 702.4 (W) × 200.43 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left/Right/Up/Down, Typ.) |
| Viewing Direction | Full Viewing Angle |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time (Tr/Td) | 16 ms / 9 ms (Typ.) |
| Color Support | 16.7M colors, 72% NTSC |
| Backlight Type | WLED, 50,000 Hours Lifetime, Driverless |
| Weight | 2.70 kg (Typ.) |
| Frame Rate | 60Hz MEMC: 120Hz (60Hz Input) 120Hz+120Hz (Panel + Backlight) 240Hz (60Hz Input) |
| Touch Technology | No Touch |
| Interface Type | 51-pin LVDS (2 channel, 8-bit), Terminal |
| Power Supply | 12.0V (Typ.) |
| Operating Temp. | -10°C ~ 60°C |
| Storage Temp. | -20°C ~ 70°C |
| Applications | Industrial, Outdoor High Brightness, Cut-Type Bar Display |
| Item | Specification |
|---|---|
| Panel Size | 28.6 inches (Half-cut from 32.0-inch) |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540 (69 PPI) |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 196.425 (H) mm |
| Bezel Opening Area | 702.4 (W) × 200.43 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left/Right/Up/Down, Typ.) |
| Viewing Direction | Full Viewing Angle |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time (Tr/Td) | 16 ms / 9 ms (Typ.) |
| Color Support | 16.7M colors, 72% NTSC |
| Backlight Type | WLED, 50,000 Hours Lifetime, Driverless |
| Weight | 2.70 kg (Typ.) |
| Frame Rate | 60Hz MEMC: 120Hz (60Hz Input) 120Hz+120Hz (Panel + Backlight) 240Hz (60Hz Input) |
| Touch Technology | No Touch |
| Interface Type | 51-pin LVDS (2 channel, 8-bit), Terminal |
| Power Supply | 12.0V (Typ.) |
| Operating Temp. | -10°C ~ 60°C |
| Storage Temp. | -20°C ~ 70°C |
| Applications | Industrial, Outdoor High Brightness, Cut-Type Bar Display |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
