High Brightness Display Manufacturer — Up to 5000 nits
Sunlight readable, CE and RoHS certified. Designed for harsh outdoor and transportation environments — tested for -20°C to 70°C temperature range with a lifespan of up to 50,000 hours.
- ✓Sunlight readable — Up to 5000 nits with optical bonding
- ✓Industrial grade — Low power consumption, low heat, long lifespan
- ✓Outdoor certified — CE, RoHS
Trusted high brightness display manufacturer. 500+ clients in 50+ countries rely on our outdoor display solutions.
Authorized Panel Partners
Heat Resistant
No blackening under direct sunlight. Engineered for extreme heat.
Cleanroom Production
Class 10,000 dust-free assembly ensures zero-pixel defects.
ISO9001 Certified
Fully traceable B2B quality control for large-scale projects.
72H Aging Test
100% rigorous screening before international shipping.
High Brightness Display Modules (7" – 98")
Industrial-grade TFT LCD modules from 7" to 98" with 1,500–5,000 nits brightness, engineered for sunlight readability.
| Model name | RS238HB-GE15 |
| Screen size | 23.8" |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 500 to 3000 |
| Viewing angle | 89/89/89/89 |
| Display color | 16.7M, 74% NTSC |
| Working frequency | 60Hz |
| Model name | LC750EGY-SKM3 |
| Screen size | 75" |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 3500 |
| Size | 21.5 " |
| Panel Type | a-si TFT-LCD |
| Panel Model | P215HAN02.0 |
| Resolution | 1920 X 1080 |
| Brightness | 2500 cd/m2 (Typ.) |
| Size | 24.5 " |
| Panel Type | a-si TFT-LCD |
| Panel Model | M250HAN01.8 |
| Resolution | 1920 X 1080 |
| Brightness | 400-1000 cd/m² (Typ.) |
| Size | 27 " |
| Panel Type | a-si TFT-LCD |
| Panel Model | G270ZAN01.1 |
| Resolution | 1920 X 1080 |
| Brightness | 1000-1500 cd/m² (Typ.) |
| Model name | P750QVN02.3 |
| Screen size | 75 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 700 |
| Model name | RS430ENT-N35 |
| Screen size | 43 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 3500 |

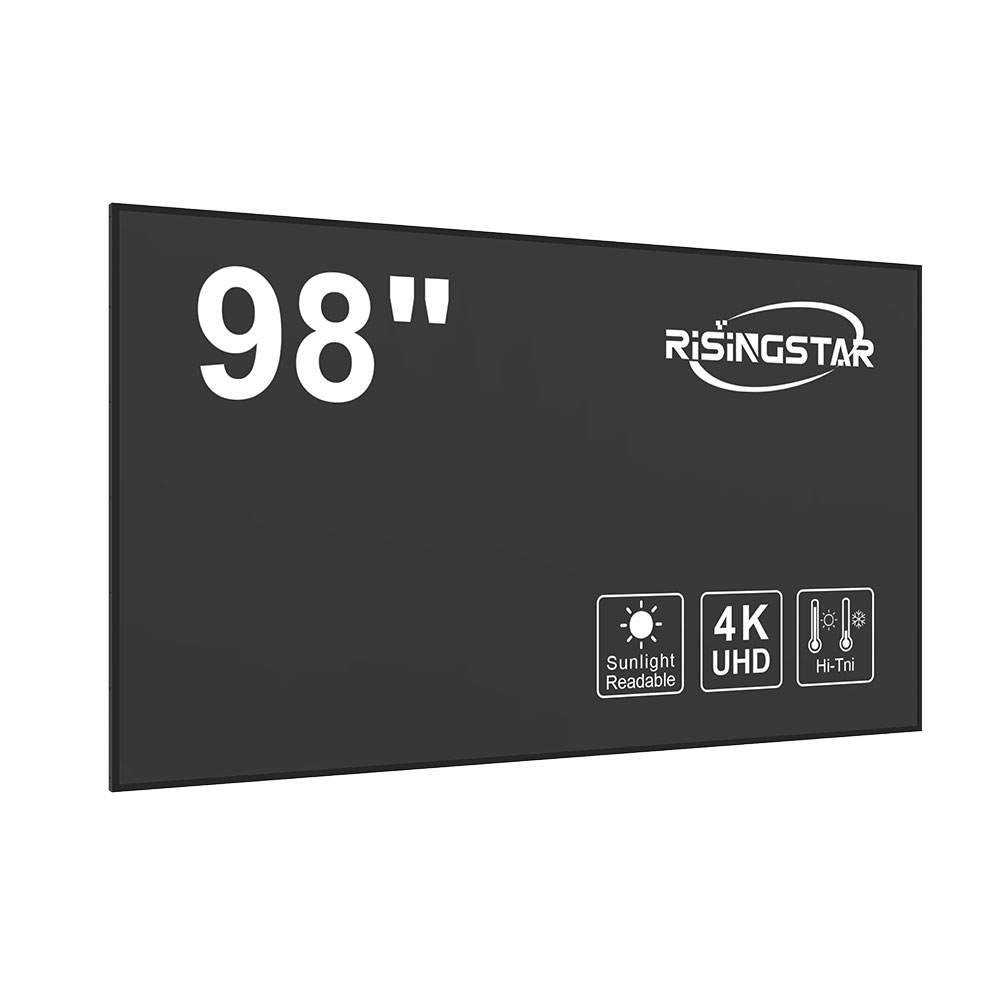

| Model name | RS980ENT-GD25 |
| Screen size | 98 " |
| Resolution | 3840×2160(RGB) |
| Brightness | 1000 to 5000nits |
| Model name | RS860ENT-GD30 |
| Screen size | 86 " |
| Resolution | 2K / 4K |
| Brightness (cd/m²) | 1000 to 5000nits |

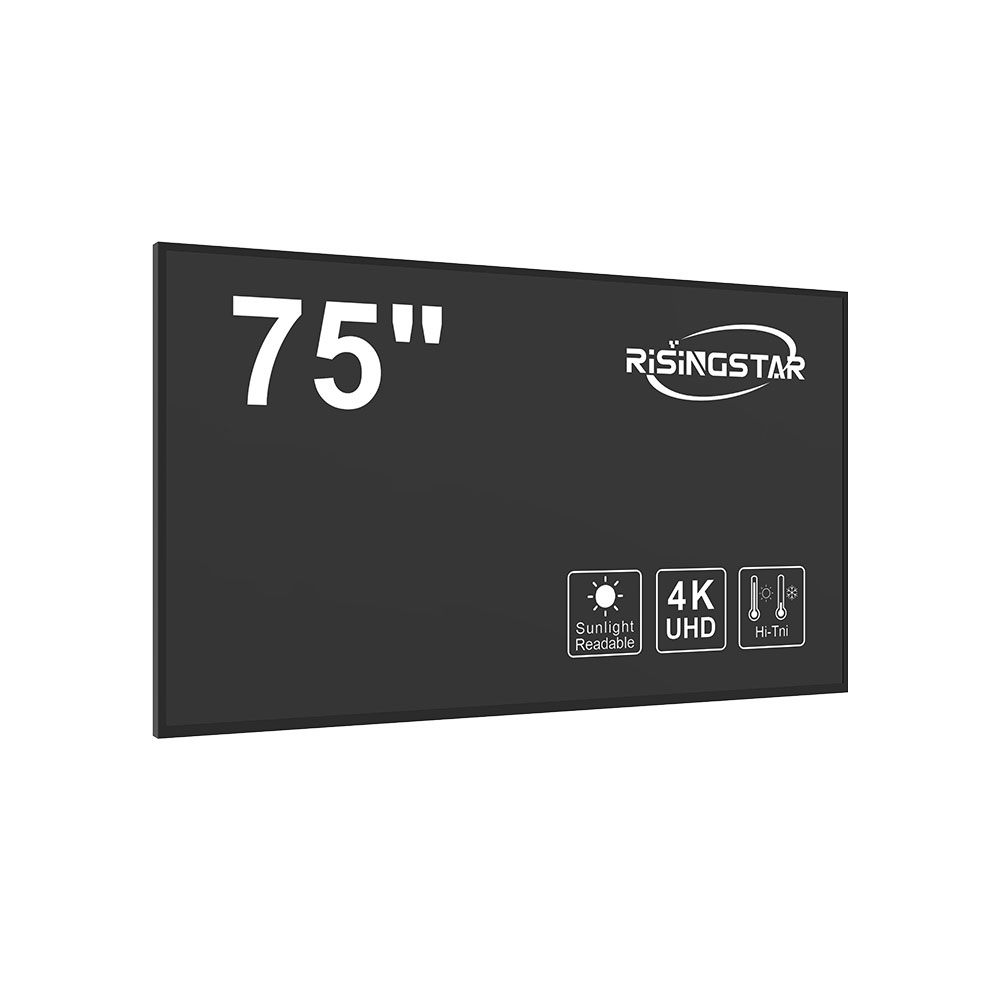

| Model name | RS750ENT-ND25 |
| Screen size | 75 " |
| Resolution | 3840×2160(RGB) |
| Brightness | 500 to 5000nits |
| Model name | RS270QUB-ND20 |
| Screen size | 27 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1920(RGB)×1080 |
| Brightness | 1500 to 5000 nits |
| Model name | G240UAN01.0 / RS24ENT-N09 |
| Screen size | 24 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1200(RGB) |
| Brightness | 500 to 5000nits |
| Model name | RS156HCE-GE10 |
| Screen size | 15.6" |
| Resolution | 1366 (RGB) × 768, WXGA, 100 PPI |
| Brightness (cd/m²) | 500 to 5000 |
| Viewing angle | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Working frequency | 60Hz (Input), MEMC-enhanced 120Hz/240Hz Options Available |

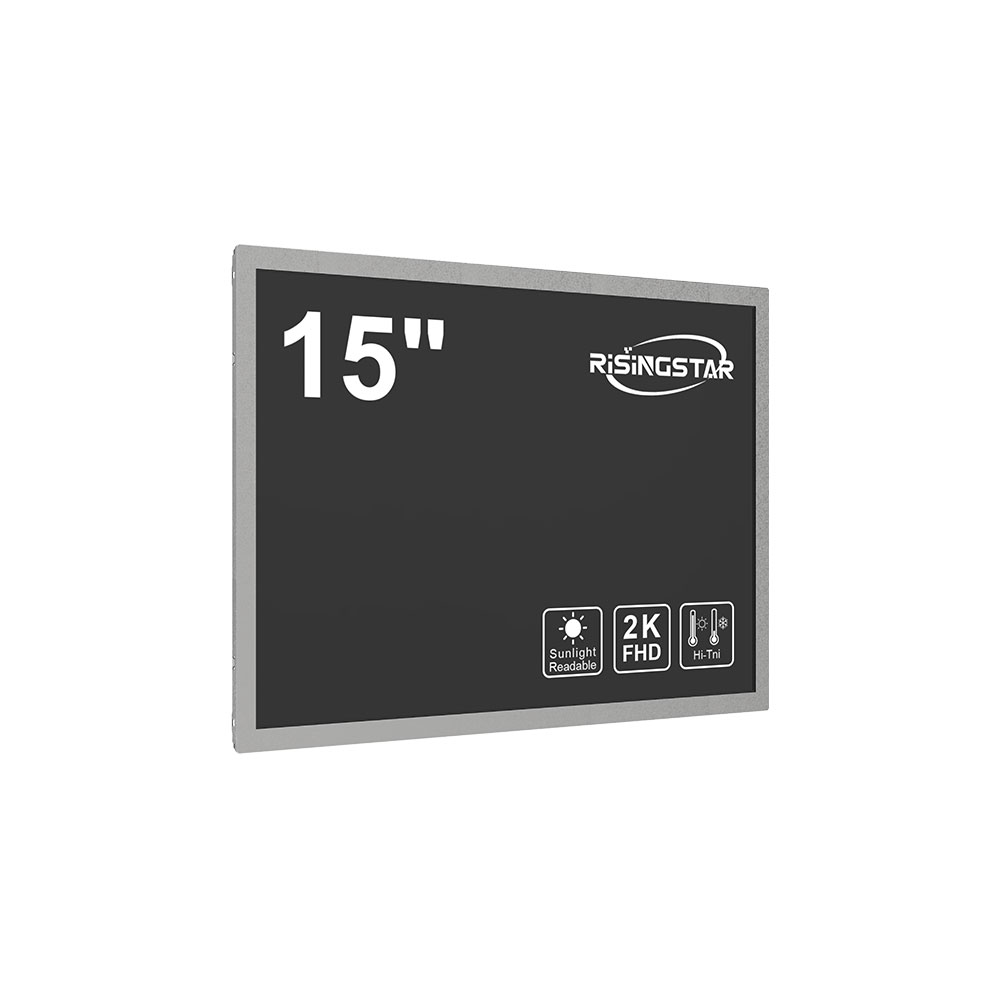

| Model name | RS156HCE-GE10 |
| Screen size | 15" |
| Resolution | 1024 (RGB) × 768 (XGA), 85 PPI |
| Brightness (cd/m²) | 500 to 5000 |
| Viewing angle | 89/89/89/89 |
| Working frequency | 60Hz |
| Model name | RS315QU1-DG15 |
| Screen size | 32" |
| Screen type | Outdoor LCD Panel |
| Resolution | 7860(RGB)×4320 |
| Brightness (cd/m²) | 1500 |
| Model name | RS750ENT-GD25 |
| Screen size | 75 " |
| Screen type | LCD panel |
| Resolution | 3840×2160(RGB) |
| Brightness (cd/m²) | 2500 |
| Model name | RS150ENT-N05 |
| Screen size | 15 " |
| Screen type | LCD Monitor |
| Resolution | 1024 768 |
| Brightness (cd/m²) | 30 to 1500 |
Our Certifications
Customized Performance
Solutions Built for Your Application
We don't just sell screens; we provide fully integrated modules tailored for specific outdoor infrastructures.
EV Charging Piles
- memory Open Frame Integration: Slim design for easy embedding into charger shells.
- light_mode Heat Resistant: No blackening in direct sunlight — vital for unshaded charging sites.
- visibility Anti-Reflective Glass: Maximum readability under intense ambient lighting.
Stretched LCD Display
- aspect_ratio Ultra-Wide Aspect Ratio: Space-saving bar design perfectly fits headers, shelves, and transit transoms.
- schedule 24/7 Industrial Reliability: Engineered for non-stop operational environments with low power consumption.
- vibration Anti-Vibration Design: High shock and vibration resistance, ideal for train and bus passenger information.

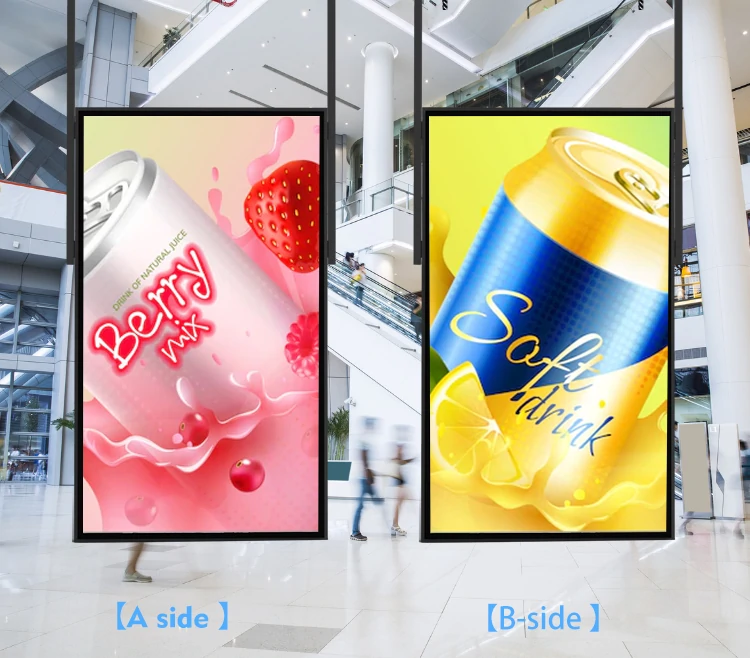

Window Facing Display
- bolt Up to 5000 Nits: High-luminance output that cuts through double-glazing and direct outdoor glare.
- Polarized Sunglasses Visible: Clear image visibility even when viewed through polarized sunglasses.
- thermostat Smart Thermal System: Built-in cooling structures prevent heat buildup inside sealed window enclosures.
Overcoming the challenges of Outdoor Deployment.
Standard screens fail within weeks outdoors. Our outdoor displays are engineered for 5+ years of reliable operation.
Sunlight Washout
Standard monitors (250-350 nits) are invisible outdoors, wasting budget on unreadable signage.
Up to 5,000 nits brightness 15x standard panels, with auto-dimming to save energy at night.
Water & Dust Ingress
Non-sealed displays fail quickly from rain, dust, and condensation in outdoor environments.
IP65/IP66 rated enclosures with optical bonding to eliminate fogging and prevent internal corrosion.
Thermal Shock & Yellowing
Extreme temperature swings cause LCD blackening, yellowing, and permanent panel damage.
Industrial panels rated -20°C to 70°C with anti-discoloration technology to prevent yellowing.
Outdoor Touch Failure
Rain, gloves, and physical impact cause standard touchscreens to fail in outdoor public spaces.
IK10-rated PCAP touch with rain rejection and glove support, optically bonded for accuracy.
High Brightness Display — Built for the Extreme
Industrial Grade vs Standard Consumer
| Technical Specs | Industrial Grade | Standard Consumer |
|---|---|---|
|
Brightness Range Luminance Output |
500 – 5000 Nits
Sun-readable brightness |
250 – 400 Nits
Indoor use only |
|
Operating Temp Thermal Endurance |
-20°C ~ 70°C
check_circle Passed Cycle Test |
0°C ~ 40°C
Blackening Risk at 45°C+ |
|
Service Life (MTBF) 24/7 Reliability |
up to 50,000 Hours
Industrial Backlight |
~15,000 Hours
Home grade components |
|
Available Sizes Customization Range |
7" – 98"
Full Scale OEM/ODM |
Standard 32" – 65"
Limited SKU options |
* Testing Environment: Ambient 50°C, Direct Solar Simulation.
Ready to Start?
Get a Tailored Technical Quote
Response Time
Quotes provided within 8 hours.
Technical Support
Free consultation on thermal & mounting design.
Expert Guide 2026
High Brightness Display The Complete Guide
A comprehensive guide covering everything engineers, integrators, and buyers need to know about high brightness LCD technology.
What Is a High Brightness Display?
A High Brightness Display is a specialized LCD engineered to remain clearly visible under strong ambient light, including direct sunlight.
Unlike consumer-grade 250–400 nits screens, these displays deliver 1,000–5,000 nits, ensuring excellent readability in harsh environments such as outdoor kiosks, transportation hubs, retail windows, and smart-city systems.
Understanding Nits (cd/m²)
High Brightness Display Comparison
A display is considered sunlight readable when brightness exceeds ambient reflected light. Industrial grade displays deliver up to 5,000 nits for harshest environments.
Why High Brightness Display Solutions Are Needed
Overcoming Sunlight Glare
Outdoor environments reach 100,000 lux. A 300-nit screen is nearly invisible, while a 2,500–5,000-nit display stays perfectly readable.
Maintaining Contrast Ratio
High brightness LCDs prevent black levels from washing out due to UV and heat exposure, maintaining clear visibility.
Ensuring Information Safety
Transport, EV chargers, and wayfinding kiosks require guaranteed legibility for safety and user experience.
High Brightness Display Brightness Levels & Applications
| Brightness | Application | Sunlight Performance |
|---|---|---|
| 700–1,000 nits | Indoor window / semi-outdoor | Moderate |
| 1,500 nits | Bright indoor / covered outdoor | Good |
| 2,500 nits | EV chargers / kiosks | Very Good |
| 3,000 nits | Outdoor signage / QSR menu boards | Excellent |
| 4,000–5,000 nits | Harsh sunlight / smart city | Superior |
Industry insight: 3,000 nits covers 80% of outdoor environments.
Understanding High Brightness Display Types
High Brightness vs Regular LCD
-
Backlight System
Industrial-grade direct LED vs consumer edge-lit
-
Thermal Stability
Optical bonding, thermal sensors, UV-resistant layers, anti-blackening
-
Power Efficiency
Optimized LED drivers reduce power consumption by 15–25%
-
Optical Bonding
Reduces reflections, increases sunlight readability by up to 25%
Outdoor High Brightness Display vs Semi-Outdoor Display
Outdoor High Brightness Displays
EV charger displays, gas pump displays, bus stops, outdoor digital signage
Semi-Outdoor High Brightness Displays
Retail window displays, mall directories, covered patios
Applications
High Brightness Display Key Features
- High Brightness Display — Up to 5,000 nits
- up to 50,000 Hours Life (24/7)
- Low Power Engineering
- Lightweight Aluminum Structure
- IP65/IP66 Waterproof
- Anti-Blackening Technology
Frequently Asked Questions.
1,000 nits is semi-outdoor level. True high brightness display solutions begin at 1,500–5,000 nits for reliable outdoor performance.
Quality displays use thermal sensors, LED drivers, and anti-blackening LCD technology to manage heat effectively.
Industrial grade LED architecture reduces energy consumption by 15–25% compared to standard high brightness display solutions.
Optical bonding fills the air gap between the display and glass, eliminating reflections and improving sunlight readability by up to 25%.
At least 1,000 nits minimum, though 2,500–5,000 nits is ideal for full sunlight environments.
Generally yes, but optimized LED backlighting minimizes extra energy use while maximizing brightness.
Extremely important. AR coatings combined with optical bonding significantly enhance contrast and readability in bright conditions.
Absolutely. Industrial grade high brightness display solutions are tested for -20°C to 70°C operation and sealed against moisture, rain, and dust.
Yes. Industrial grade high brightness display models feature IP65 or IP66 protection ratings for complete water and dust resistance in outdoor environments.
