32 inch 2500 nits sunlight readable retail digital signage
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

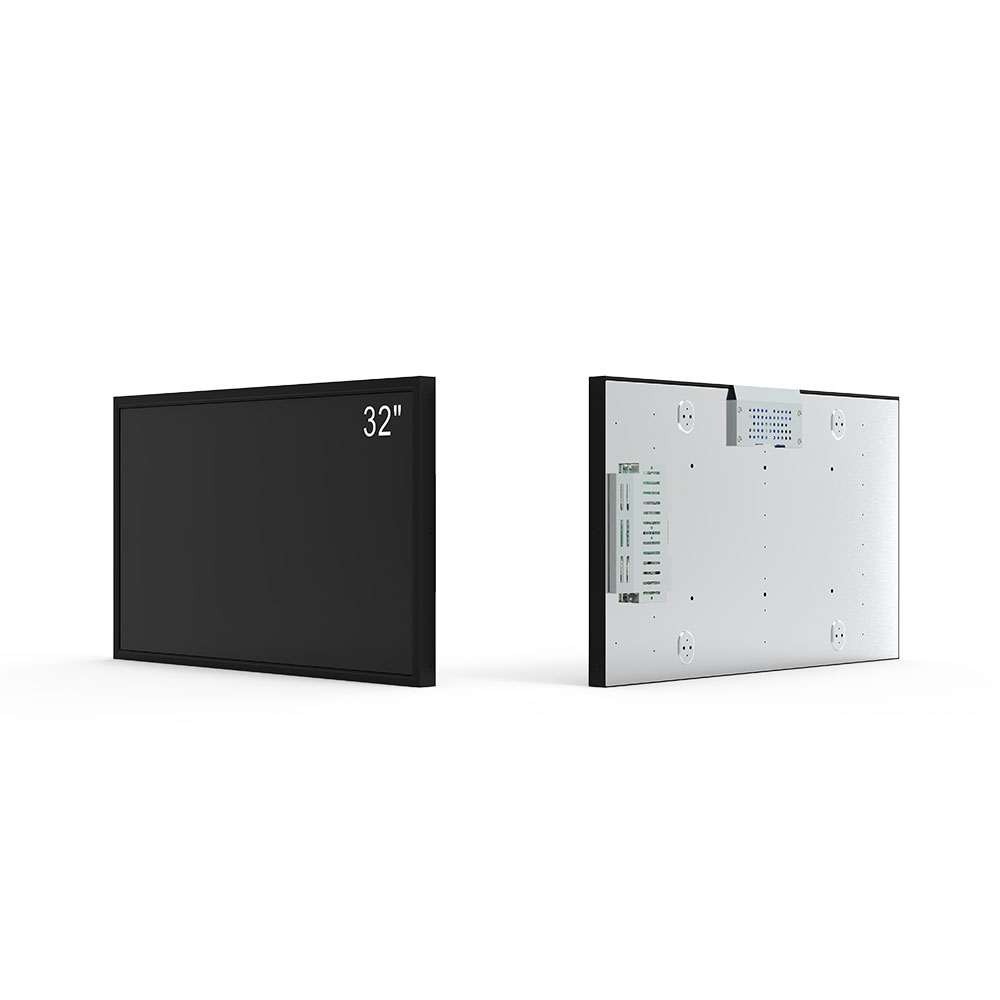

RS320HNX02D01 is a 32 inch LCD display from Risingstar from Risingstar, modified from the classic 32-inch window facing display RS320MNX01D01, with totally different housing with more holes, to increasing the thermal dissipition ability.
Risingstar monitors always have far higher brightness than most of our competitors, for the specific 32-inches we can reach 4000 nits even much higher, more information please searching on our website:
Size (inch) | 21.5 | 32 | 43 | 49 |
Model number | RS215MNX01D01 | RS320HNX02D01 | RS430HNX02D05 | RS490MNX01D01 |
Brightness (cd/m2) | 1000 | 2500 | 3000 | 2000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 |
Power (Watt) | TBD | 160 | ||
Operating temperature | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Rugged and unique housing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching weather environment.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle can reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserve the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
Window facing display series:
RS320MNX01D01, classic design, the standard type of 32-inch window facing display
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| Screen Size | 32 inch |
| Display Area (mm) | 1018.8(H) x 572.67(V) |
| Brightness | 2500 nits |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.630(H) x 0.630(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 (Typ.)(Tr/Td) (ms) |
| Input Interface | EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 AC IN*1 |
| OSD Key | AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER |
| Glass | Optional |
| Touch Type | Optional |
| Input Power | AC 110-240v |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1058 x 587.8 x 78mm |
| Mounting | 400x200mm Screws metric M8 |
| Weight (Net) | 18 kgs |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
