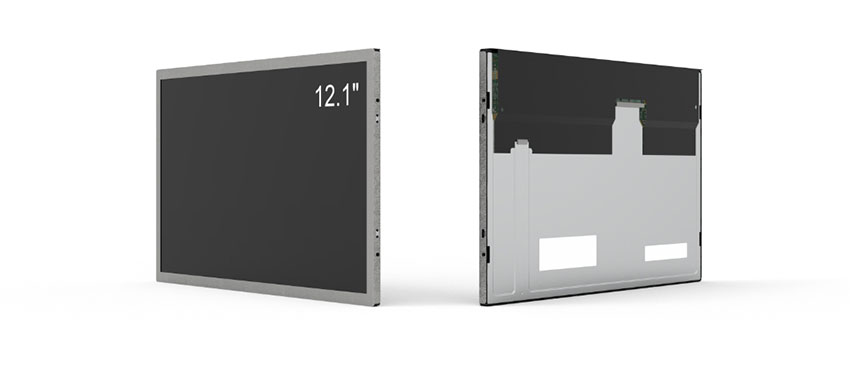

12.1-inch a-Si TFT-LCD panel
XGA resolution 1024(RGB) × 768, 105 PPI
RGB vertical stripe pixel layout
Matte surface with 3H hard coating
500 cd/m² high brightness
1000:1 contrast ratio (Transmissive)
Full viewing angle AAS (IPS-type) technology, normally-black, transmissive mode
30K-hour WLED backlight with driver built-in
Wide temperature design for industrial use
LVDS 1-channel, 6/8-bit interface
Operating temperature: -30°C to +70°C
Storage temperature: -40°C to +80°C
| Item | Details |
|---|---|
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1024(RGB) × 768 (XGA), 105 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 245.76 (W) × 184.32 (H) mm |
| Outline Dimensions | 260.5 (W) × 204 (H) × 8.9 (D) mm |
| View Area | 249.0 (W) × 187.5 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~3000 nits |
| Contrast Ratio | 1000:1 (Typ.), Transmissive |
| Optical Mode | AAS (IPS-type), Normally Black, Transmissive |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥ 10) Left/Right/Up/Down |
| Response Time | 13/12 ms (Typ.) (Tr/Td) |
| Color Depth | 262K / 16.7M, 72% NTSC |
| Backlight | WLED, 30,000 hours, with LED Driver |
| Weight | 490 g (Typ.) / 510 g (Max.) |
| Application | Industrial |
| Refresh Rate | 60 Hz 120 Hz (via built-in MEMC, 60 Hz input) 120 Hz + 120 Hz: 120 Hz panel + 120 Hz backlight 240 Hz (via built-in MEMC, 60 Hz input) |
| Signal Interface | LVDS (1 channel, 6/8-bit), 20-pin Connector |
| Power Supply | 3.3 V (Typ.) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Item | Details |
|---|---|
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1024(RGB) × 768 (XGA), 105 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 245.76 (W) × 184.32 (H) mm |
| Outline Dimensions | 260.5 (W) × 204 (H) × 8.9 (D) mm |
| View Area | 249.0 (W) × 187.5 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~3000 nits |
| Contrast Ratio | 1000:1 (Typ.), Transmissive |
| Optical Mode | AAS (IPS-type), Normally Black, Transmissive |
| Viewing Angle | 89/89/89/89 (Typ.) (CR ≥ 10) Left/Right/Up/Down |
| Response Time | 13/12 ms (Typ.) (Tr/Td) |
| Color Depth | 262K / 16.7M, 72% NTSC |
| Backlight | WLED, 30,000 hours, with LED Driver |
| Weight | 490 g (Typ.) / 510 g (Max.) |
| Application | Industrial |
| Refresh Rate | 60 Hz 120 Hz (via built-in MEMC, 60 Hz input) 120 Hz + 120 Hz: 120 Hz panel + 120 Hz backlight 240 Hz (via built-in MEMC, 60 Hz input) |
| Touch Function | No Touch |
| Signal Interface | LVDS (1 channel, 6/8-bit), 20-pin Connector |
| Power Supply | 3.3 V (Typ.) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
