15.6 Inch
Sunlight Readable LCD
WXGA or FHD. 500-1,500 Nits. 16:9 Industrial Ratio.
The **15.6 inch sunlight readable display** offers the perfect balance of screen real estate and compact enclosure compatibility. Engineered with Hi-Tni thermal stability and **3H hard coating** for continuous outdoor operation.
Featured 15.6 inch Models
Professional 15.6 inch widescreen industrial displays for outdoor excellence.
15.6-inch Sunlight Readable FHD TFT LCD Panel (1920x1080)
RisingStar® 15.6 inch RS15.6HCE-GE10 sunlight readable display. 1000 nits high brightness, 1920(RGB)×1080 resolution, Hi...
15.6 inch high brightness LCD panel with 1200 nits
RisingStar® 15.6 inch RS156ENT-N12 sunlight readable display. 1200 nits high brightness, 1920(RGB)×1080 resolution, Hi-T...
15.6" Ultra High Brightness Display Panel
RisingStar® 15.6 inch RS156ENT-GE15 sunlight readable. 500 nits, Hi-Tni for 24/7 outdoor.

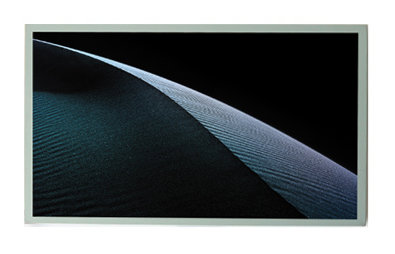

15.6" 1000 nits Sunlight Readable LCD RS156M1L-NE10
ExceptionalVisualClarityEngineeredforuncompromisingperformance,thisdisplayfeatures16.7M(8-bit)colordepthanda72%NTSCcolor...
15.6 inch high brightness LCD panel with LVDS Interface
RisingStar® 15.6 inch RS156XW-NE15 sunlight readable display. 1500 nits high brightness, Hi-Tni solar-resilient for 24/7...
15.6" Sunlight Readable TFT/IPS LCD Screen
RisingStar® 15.6 inch RS156ENT-NE10 sunlight readable. 500 nits, Hi-Tni for 24/7 outdoor.
15.6 Inch Sunlight Readable A-Si TFT-LCD Monitor
RisingStar® 15.6 inch RS156ENT-N12 sunlight readable. 1000 nits, Hi-Tni for 24/7 outdoor.
15.6 Inch Outdoor High Brightness Digital Display
RisingStar® 15.6 inch RS156HCE-GE10 sunlight readable. 500 nits, Hi-Tni for 24/7 outdoor.
15.6 inch Gas Pump Touch Monitor
RisingStar® 15.6 inch RS156ENT-GE12 sunlight readable display. 500 nits high brightness, 1920(RGB)×1080 resolution, Hi-T...
15.6 inch industrial high brightness TFT LCD panel
RisingStar® 15.6 inch RS156HCE-GE10 sunlight readable display. 1000 nits high brightness, 1920(RGB)×1080 resolution, Hi-...
15.6 inch 1000 nits outdoor sunlight readable LCD module
RisingStar® 15.6 inch RS156ENT-N10 sunlight readable display. 1000 nits high brightness, 1366 768 resolution, Hi-Tni sol...
Technical Selection Matrix
Choose the optimal 15.6“ sunlight readable LCD configuration for your industrial environment.
grid_view Resolution & LC Mode
1366 × 768 (Standard)
Cost-effective TN mode. 8ms response. Ideal for status monitors and basic outdoor signage.
1920 × 1080 (IPS)
Wide viewing angles (89°). High-density graphics. Preferred for EV charging UIs and medical terminals.
light_mode Luminance Tiers
| Brightness | Typical Application |
|---|---|
| 500 cd/m² | Shaded semi-outdoor, industrial HMI |
| 700–800 cd/m² | Semi-outdoor with indirect sun |
| 1000 cd/m² | Direct sunlight, outdoor kiosks |
| 1500 cd/m² | Extreme desert/tropical deployments |
Industrial Model Selection Guide
| Model Series | Resolution | Brightness | LC Mode | Interface | Key Features |
|---|---|---|---|---|---|
| RS156XW-NE05 | 1366×768 | 500 nit | TN | LVDS | Cost-effective, Industrial |
| RS156XW-NE10 | 1366×768 | 1000 nit | TN | LVDS | High brightness, Standard |
| RS156HAN-GE10 | 1920×1080 | 1000 nit | IPS | eDP | FHD, Wide angle |
| RS156HCE-GE10 | 1920×1080 | 1000 nit | IPS Hi-Tni | eDP | Solar resilient (110°C) |
| RS156HCE-GE15 | 1920×1080 | 1500 nit | IPS Hi-Tni | eDP | Extreme sun, Wide temp |
| RS156M1L-NE15 | 1920×1080 | 1500 nit | IPS | eDP | Local Dimming option |
Neutralizing the Solar Load:
Thermal & Optical Resilience.
Standard displays fail in the heat and glare of the real world. A standard 300-nit panel acts like a mirror under 10,000 lux ambient light, while surface temperatures can exceed 100°C.
Anti-Glare Logic
Our 15.6 inch series features an **anti-glare matte finish combined with a 3H hard coating**, reducing surface reflections and protecting the polarizer from UV degradation.
Hi-Tni Solar Stability
We utilize **High-Temperature transition (Hi-Tni)** liquid crystals stable up to 110°C, preventing the isotropic state (blackening) common in unshaded outdoor enclosures.
Quick Specs Matrix
-
wb_sunny
Max Luminance
1,500 cd/m²
-
thermostat
Solar Stability
110°C (Hi-Tni)
-
opacity
Bonding
Optical (Optional)
"Our 15.6 platform reduces internal reflections by 40% through optional optical bonding."
Application Configurations
EV Charging Stations
Displays at EV charging stations must be readable in direct sun and operable in all weather conditions. The payment interface and charging status must be clearly visible to users approaching from various angles.
Brightness
1000–1500 nits
Sealing
IP65 / IP66
Recommended Selection
Model: RS156HCE-GE10 (1000 nit, Hi-Tni)
Industrial Specification Benchmarks.
Up to 2,500 nits
Extreme sunlight readability options
Up to 110°C (Hi-Tni)
Isotropic state protection in direct sun
1920 x 1080 FHD
High-density visual precision (16:9)
Glove & Rain PCAP
Multi-touch with industrial tuning
3-Year Industrial
Standard B2B project protection
IP65 / IP66 Front
Dust and water ingress protection
Modular Integration Consistency.
Dual-Interface Flexibility
Our 15.6 series supports both **30-pin LVDS** (for legacy industrial controllers) and **eDP 2-lane** (for modern ARM/Intel boards), ensuring drop-in replacement capability.
Precision PWM Dimming
Supports **5% to 100% linear PWM dimming**, allowing for ultra-fine brightness control to match ambient light sensors and reduce night-time glare.
Conformal Coating (Optional)
PCB assemblies can be treated with industrial conformal coating to protect against salt spray, humidity, and atmospheric contaminants in marine environments.
Technical Resource Center
Download the comprehensive RS156 series technical specification. Includes detailed mechanical drawings, timing charts, power sequencing, and optical verification data for project integration.
Factory-Direct OEM/ODM Since 2009
Based in Shenzhen, we design and manufacture professional 15.6 inch outdoor displays for system integrators globally. Every unit undergoes a rigorous 72-hour burn-in test.
8 Hours
Quote Response
10 Days
Sample Delivery
3 Years
Standard Warranty
ISO 9001
Certified Facility
Expert Q&A
Technical insights into 15.6 inch sunlight readable LCD technology.
Yes. Our industrial panels are rated for operation from -20°C to 70°C, with custom options available for even harsher climates down to -30°C. We use industrial-grade components that prevent crystal sluggishness in sub-zero environments.
While not mandatory, it is highly recommended for marine and high-humidity environments. By filling the air gap between the LCD and cover glass, we reduce internal reflections, improve contrast by 40%, and eliminate the possibility of internal condensation.
Absolutely. Our outdoor-tuned PCAP touch controllers are programmed to reject water droplets and detect gloved fingers accurately, providing a seamless user experience for EV chargers and medical applications.
Direct sun exposure causes standard liquid crystals to reach their isotropic state at 65°C. Our Hi-Tni technology uses specialized liquid crystal materials that remain stable up to 110°C, preventing thermal blackening without active cooling.
Ready to Engineer Your
15.6
Inch Outdoor Solution?
Consult with RisingStar's technical team today to customize a high-brightness solution for your specific enclosure requirements.
