High brightness options from 500 to 3000 nits
1000:1 contrast ratio (Transmissive)
TN mode, normally white, transmissive type
Wide viewing angle: 85/85/80/80 (CR≥10)
Fast response time: 1.5 / 3.5 ms (Tr/Td, Typ.)
WLED backlight, 50,000-hour lifetime, with LED driver
LVDS interface (1ch, 8-bit)
Industrial-grade reliability, wide temperature tolerance
| Item | Specification |
|---|---|
| Panel Size | 18.5 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 84 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (mm) | 409.8 (W) × 230.4 (H) |
| Bezel Opening (mm) | 413.4 (W) × 234.0 (H) |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 1.5 / 3.5 ms (Tr/Td, Typ.) |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Display Mode | TN, Normally White, Transmissive |
| Color Support | 16.7M, 72% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED driver |
| Weight | 1.58 / 1.65 kg (Typ./Max.) |
| Frame Rate | 60 Hz |
| Optional Frame Rates | 120 Hz (60 Hz input, with MEMC); 120Hz+120Hz (Panel+Backlight); 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS, 1 ch, 8-bit |
| Power Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | –20 ~ 60 °C |
| Application | Industrial Equipment |
IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Soft-Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
(Note: This model is TN type)

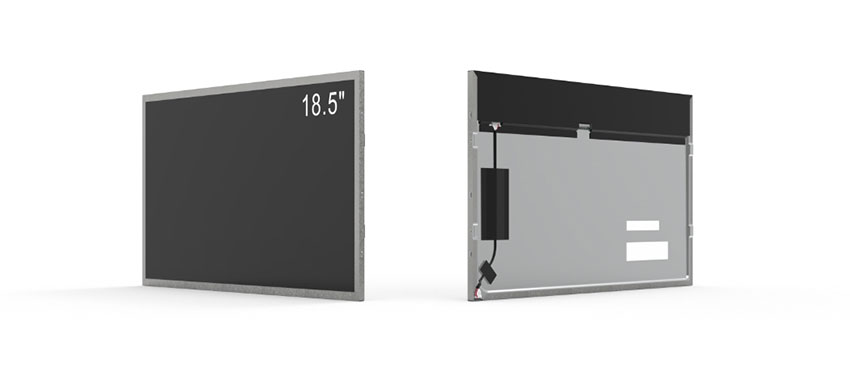

This 18.5-inch a-Si TFT-LCD module is engineered for industrial environments requiring high brightness, stable performance, and long operating life. With brightness options up to 3000 nits, the display remains clearly visible even under strong ambient light. The TN transmissive design ensures fast response time suitable for dynamic visual content, while the 72% NTSC color gamut provides vivid and accurate color reproduction.

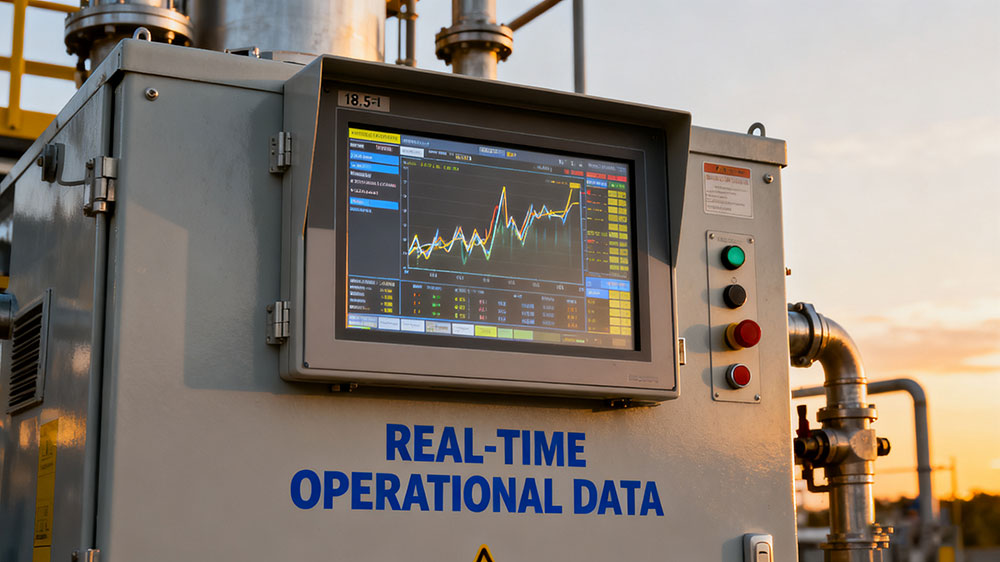

Built with a robust WLED backlight (50,000 hrs lifetime) and LVDS interface, the module integrates easily into industrial machines, kiosks, and embedded systems.
This 18.5" industrial TFT-LCD is ideal for:
Industrial control systems & HMIs
Factory automation equipment
Medical devices and monitoring terminals
ATM / Kiosk / Vending machines
Test and measurement instruments
Digital signage & information terminals
Transportation system displays
Rack-mount servers & industrial PCs
| Item | Specification |
|---|---|
| Panel Size | 18.5 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 84 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (mm) | 409.8 (W) × 230.4 (H) |
| Bezel Opening (mm) | 413.4 (W) × 234.0 (H) |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 500 ~ 3000 nits |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 1.5 / 3.5 ms (Tr/Td, Typ.) |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Display Mode | TN, Normally White, Transmissive |
| Color Support | 16.7M, 72% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED driver |
| Weight | 1.58 / 1.65 kg (Typ./Max.) |
| Frame Rate | 60 Hz |
| Optional Frame Rates | 120 Hz (60 Hz input, with MEMC); 120Hz+120Hz (Panel+Backlight); 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS, 1 ch, 8-bit |
| Power Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | –20 ~ 60 °C |
| Application | Industrial Equipment |
