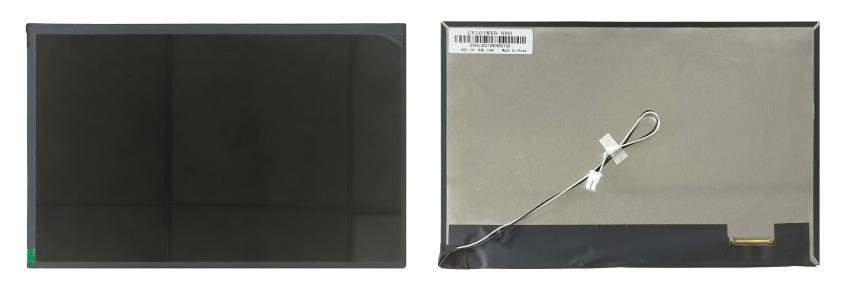

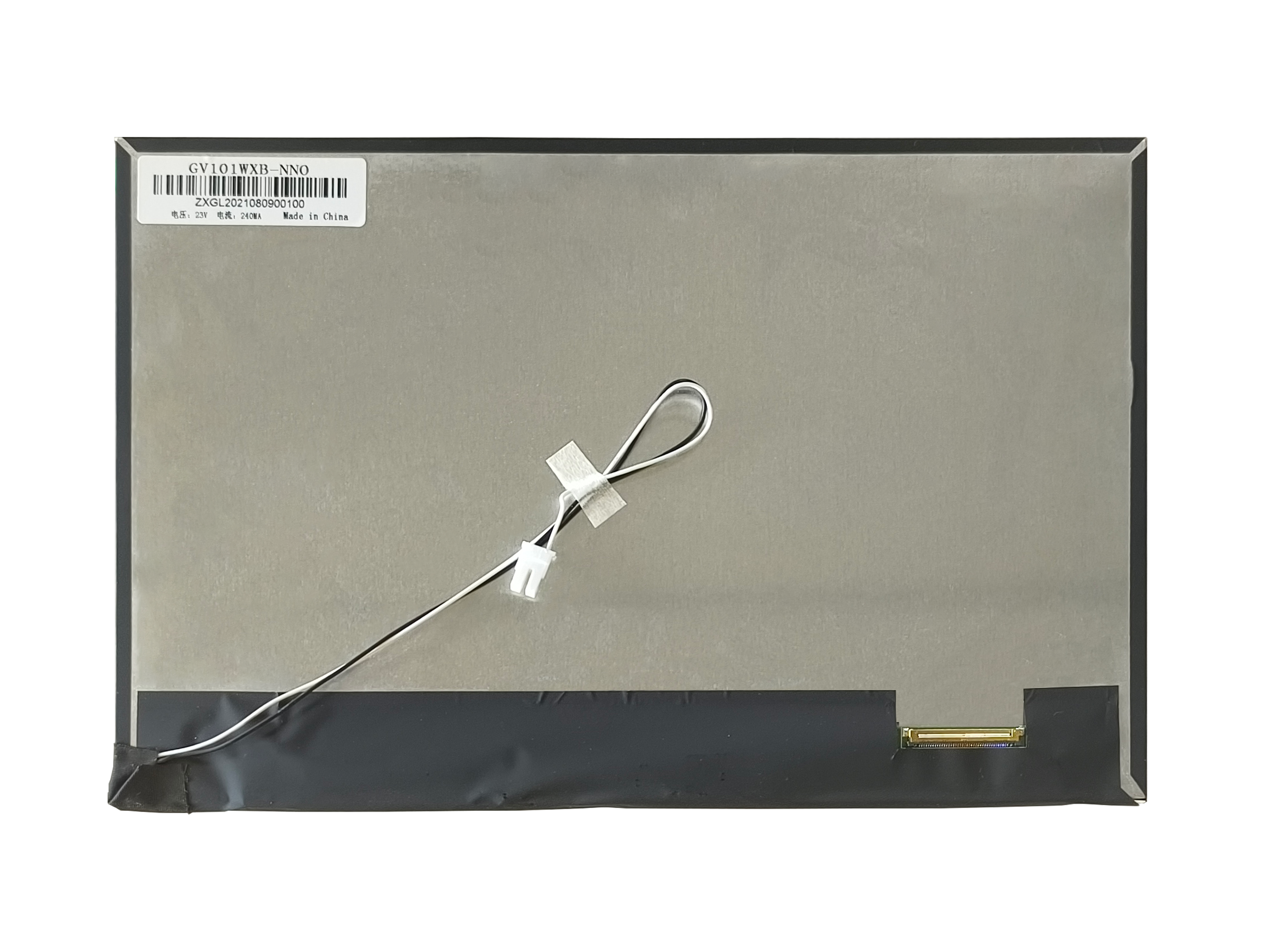

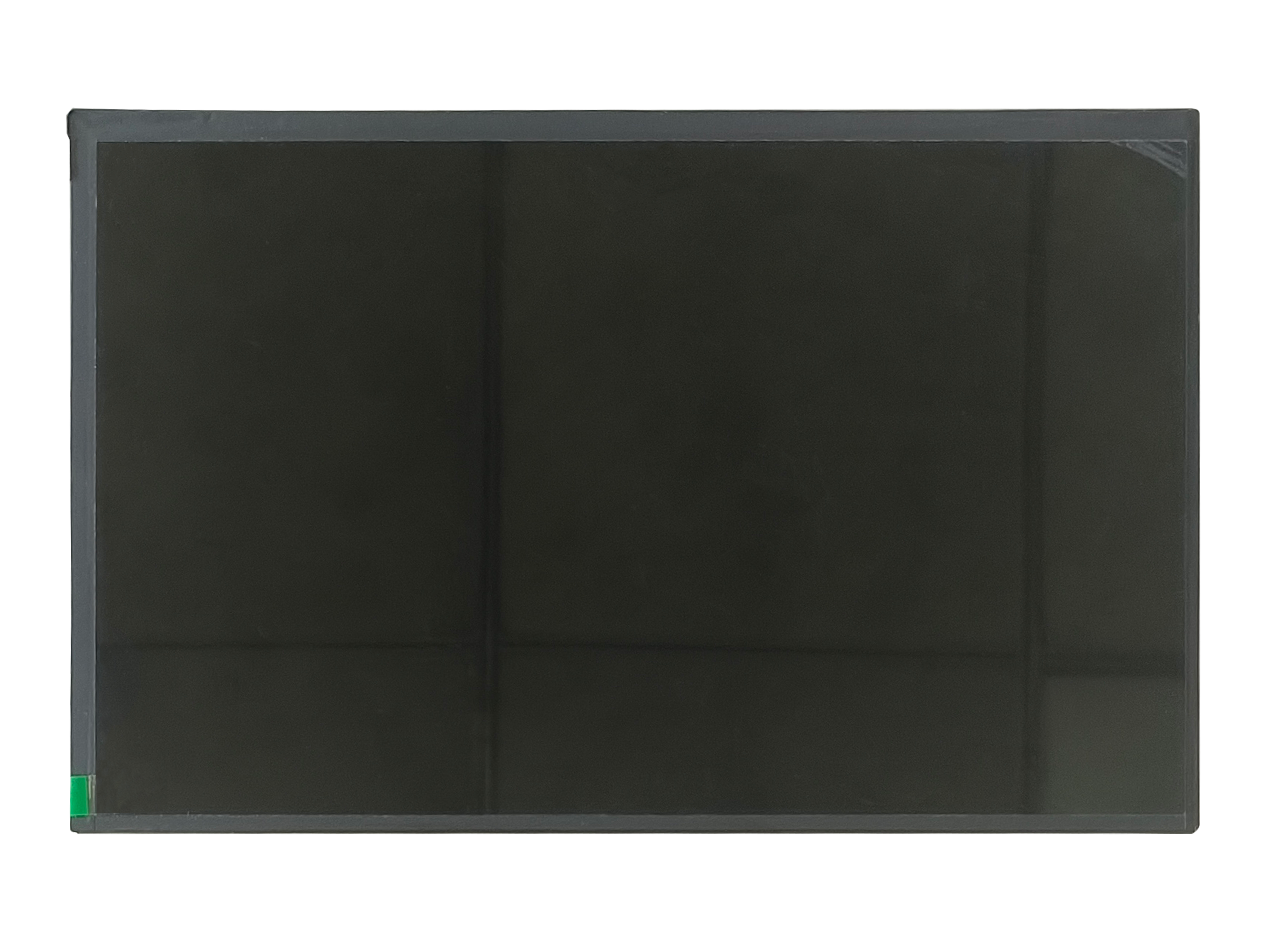

10.1" Lcd Screen 1280x800 IPS Panel Sunlight Readable
| Brand | RISINGLCD |
| Model name | RS101ENT-NE05 |
| Screen size | 10.1 " |
| Screen type | LCD module, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 |
| Brightness (cd/m²) | 500 |
| Contrast degree | 1000:1 |
"RS101ENT-NE05 is one of the small-sized LCD panels from RisingStar, featuring an original LCD module from AU Optronics. Combined with RisingStar's own design for the backlight structure, it can achieve a brightness of 500 nits or even higher, making it suitable for use in various areas such as industrial, military, medical, and more."
The LCD panel is the core of an LCD display, usually purchased by professional manufacturers who make complete LCD displays or other machines that require a screen to display necessary information.
Size | 10.1 inch |
Panel type | a-Si TFT-LCD |
Dispaly area | 216.96 × 135.6 mm(H*V) |

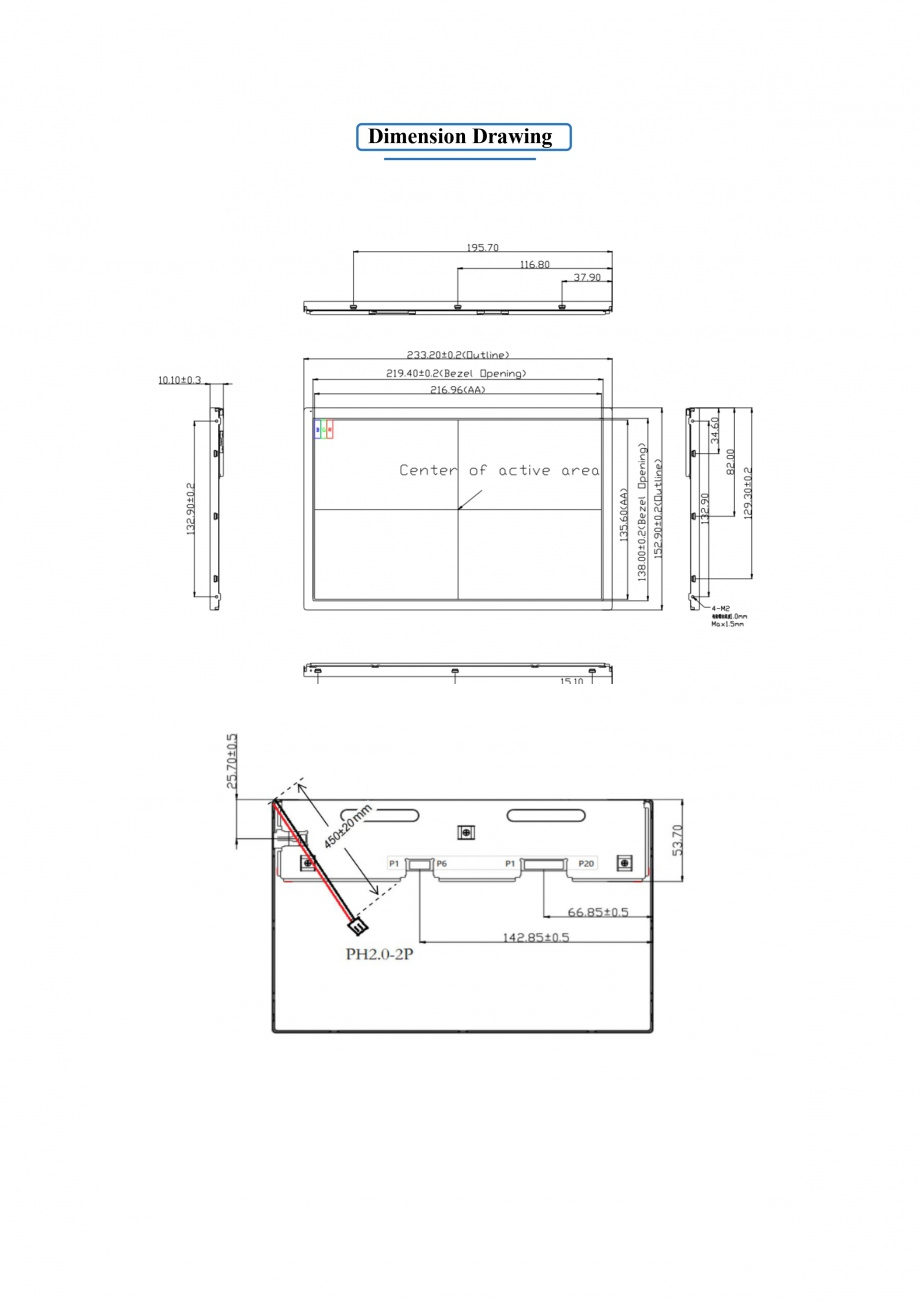

Outline size | 233.2 × 152.9 × 10.1 mm (H*V*D) |
Dispaly mode | IPS,Normally black,Transmissive |
Drive-screen Voltage | 3.3V (Typ) |
Resolution | 1280*800 , WXGA |
Display ratio | 16:9 |
Display brightness | 500 cd/m2 |
Constrast Ratio | 1200:1 |
View angle | 89/89/89/89 |
Display color | 6.7M ,72% |
Working freqyency | 60Hz |
Surface Treatment | Haze ,Hard coating(3H) |
Light source type | WLED |
Backlight lifetime | up to 50,000 hoursrs |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
