27 Inch 2500 Nits Outdoor high brightness LCD module panel
| Brand | Risinglcd |
| Model name | RS270ENT-N12 |
| Screen size | 27 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 2500 |

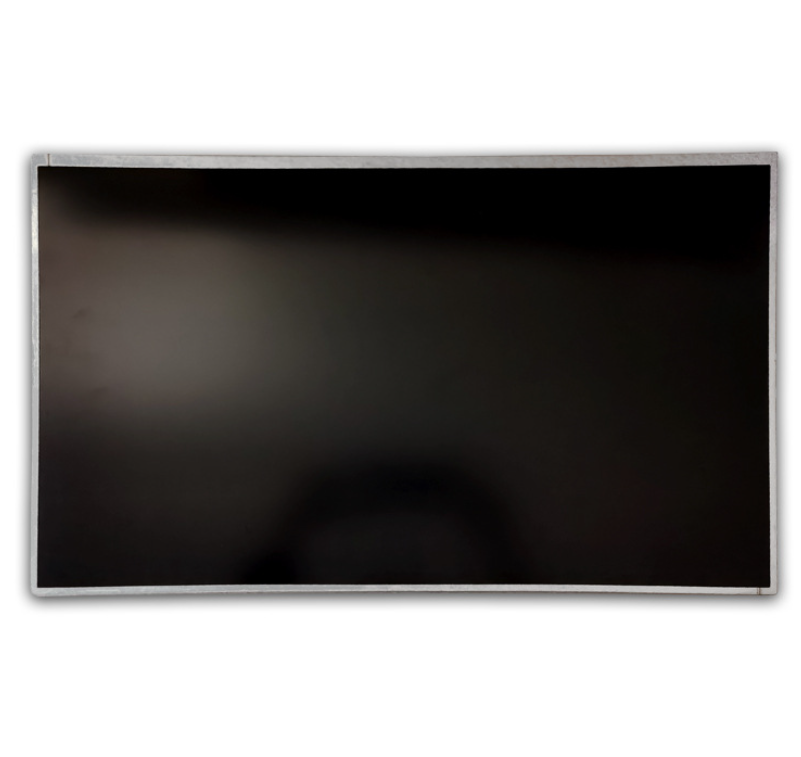

27 Inch 2500 Nits Outdoor high brightness LCD module panel
27 inch 2500 nits outdoor digital screens with direct backlight ,the high brightness can be achieve 2500nits.27 inch lcd module adopt aluminum alloy structure,with direct backlight, it can achieve higher brightness, aluminum alloy structure heat dissipation effect is better, under the same brightness conditions, Risingstar 27 inch 2500 nits outdoor digital screens with lower power consumption than other panels, heat dissipation performance is better.
27 inch outdoor digital screens high brightness 2500nits can work in harsher environment, daylight readable LCD panel, standardized structure design can match various terminal equipment.27 inch outdoor digital screens is widely used in car body advertising,outdoor industrial machine,gas station and other outdoor displays.
27 inch DLED Lcd Module Product Parameter | |||
| size | 27" | ||
| Brightness | 2500 | nits | |
| Active Area | 597.888(H)*336.312(V) | mm | |
| Dimensional outline | 622.1(H)*365.5(V)*40(D) | mm | detail refer to drawing |
| Number of pixels | 1920*1080 | ||
| Type | TFT-LCD | ||
| Pixels Pitch | 0.3114(H)*0.3114(V) | mm | |
| Pixel arrangement | RGB Vertical stripe | ||
| Display color | 16.7M | colors | |
| display mode | Normally black | ||
| Constrast Ratio | 1000:1 | ||
| View Angle | 89/89/89/89(Typ)(CR≥10) | ||
| Weight | 5.0 | kgs | Estimated |
| Interface type | LVDS (2ch,8-bit),30 pin | ||
| Surface treatment | Haze 25%,3H | ||
| Backlight | DLED | ||
| Working temperature | -20℃ ~ 70℃ |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
