A good sunlight readable display is typically considered to be an LCD above 1000 nits brightness, RisingLCD RS490ETN-ND15 can achieve 1500 nits high brightness, that screen can be clearly read even in the direct sunlight,

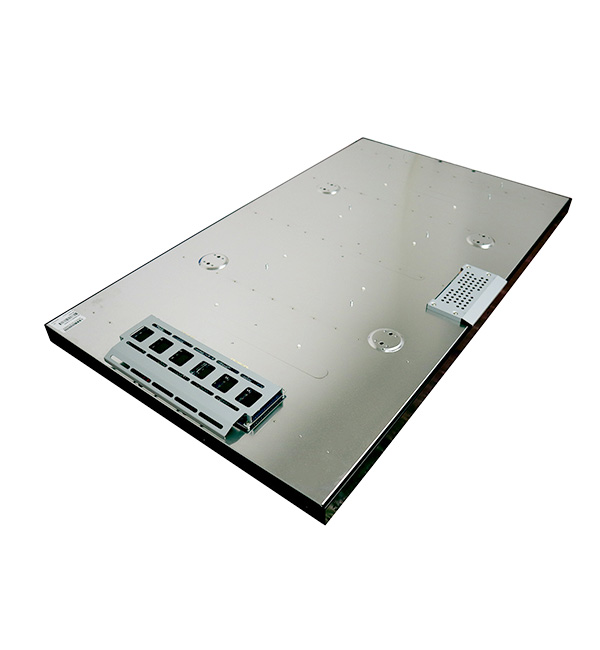

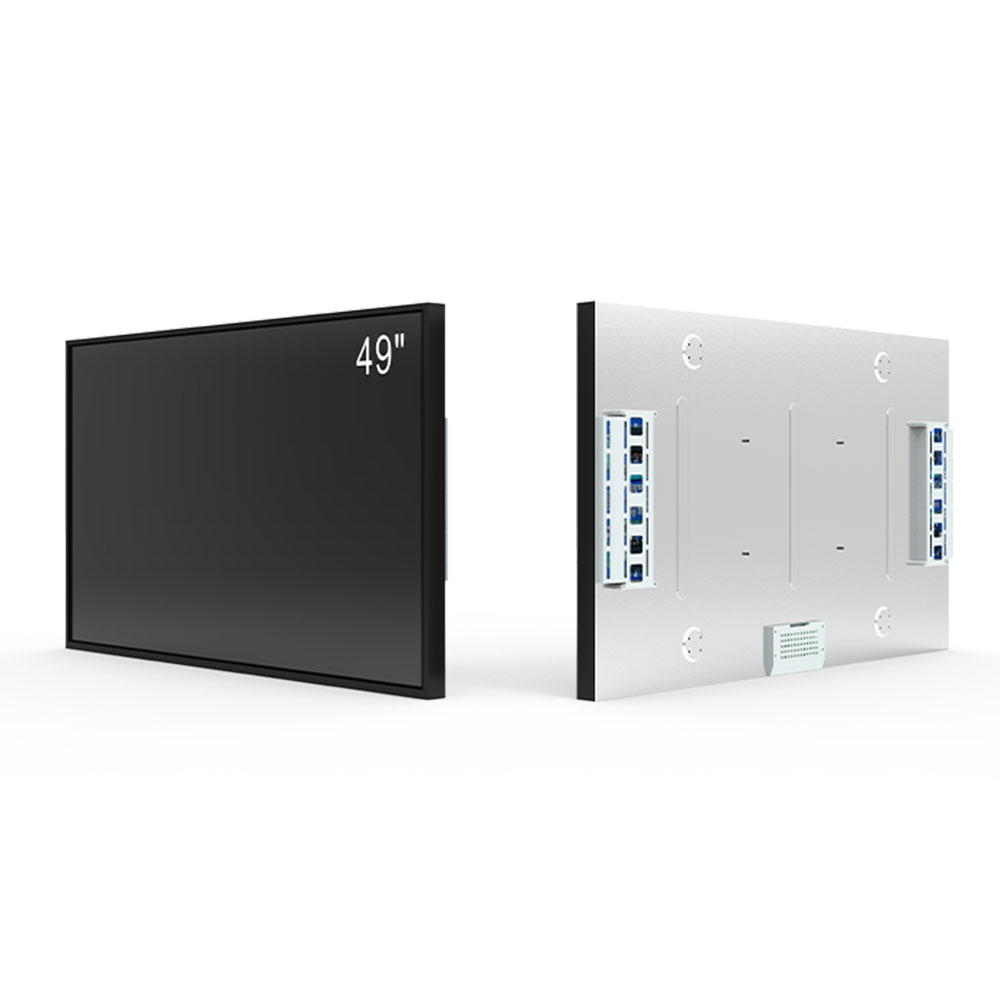

RS490ENT-ND15 is a 49-inch high brightness TFT LCD panel from Risingstar, use the own design backlight structure allowed the brightness reach 1500-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brigthness than most of our competitors, for the specific 49-inches we can reached 4500 nits even much higher, more information please searching our website:
Size (inch) | 32 | 43 | 49 | 55 | 75 |
Model number | RS320ENT-ND15 | RS430ENT-ND30 | RS490ENT-ND15 | RS550ENT-ND25 | RS750ENT-ND40 |
Brightness (cd/m2) | 1500 | 3000 | 1500 | 2500 | 4000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Contrast ratio | 1200:1 | 1200:1 | 1300:1 | 1200:1 | 1200:1 |
Opreating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | 0 ~50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high qualtiy displays for each of our customers.

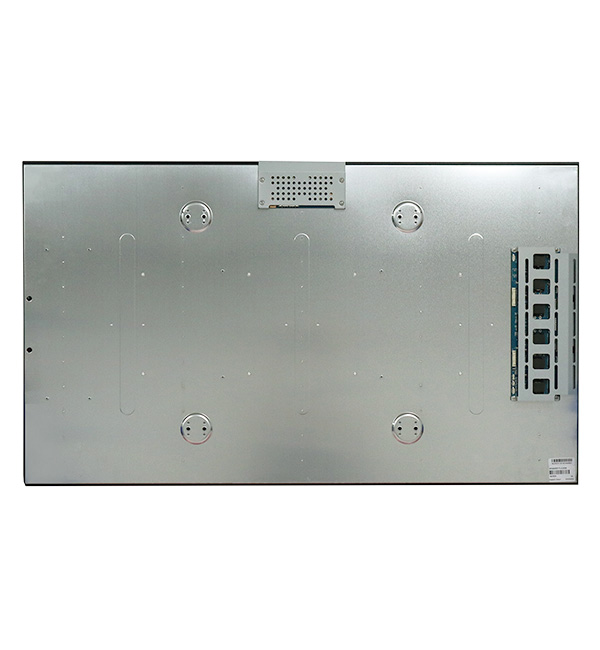

Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED buble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the sepcific 49-inch panel, it can reached 4500-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Window facing display series:
RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display
| Screen Diagonal | 49 inch |
| Model No | RS490ENT-ND15 |
| Active Area | 1073.78(W)×604(H) mm |
| Pixels | 1920(RGB)×1080, SXGA, 86PPI |
| Physical Size | 1106.4(W)×641.6(H)×60.3(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1300:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Weight [g] | 10Kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Support Color | 16.7M, 73% NTSC |
| Surface Treatment | Hard coating (2H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
