43 inch waterproof and rugged LCD window facing display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

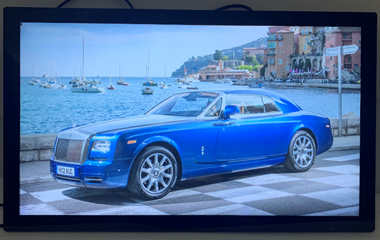

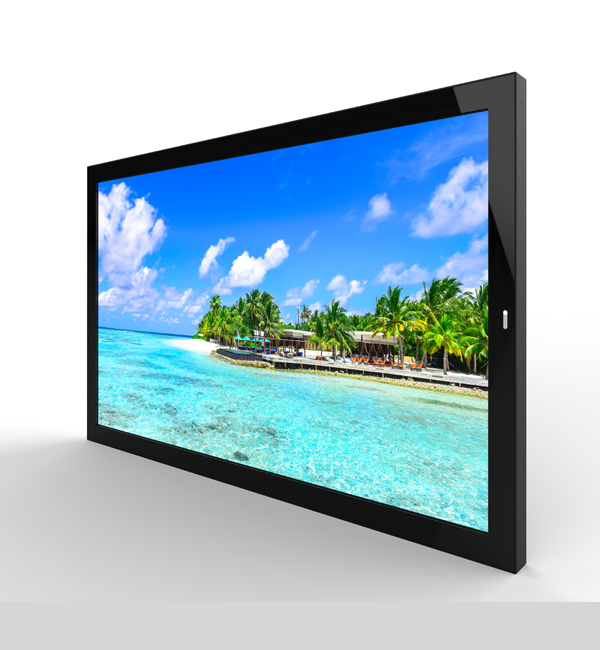

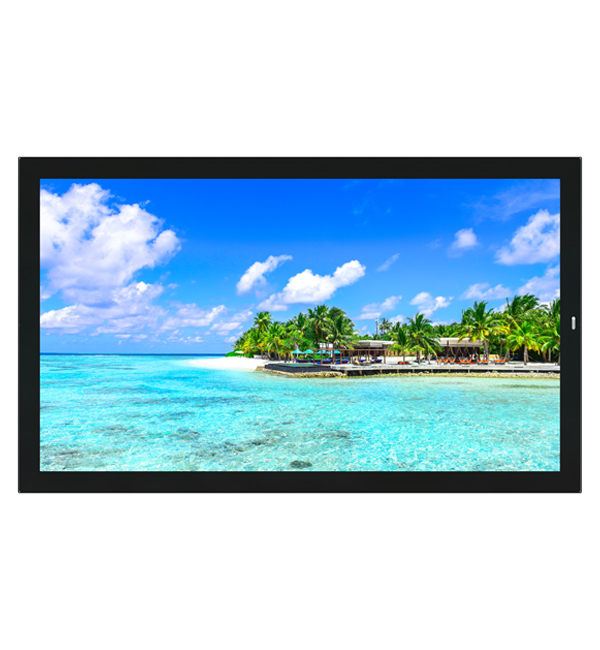

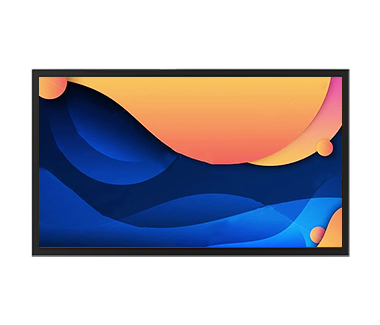

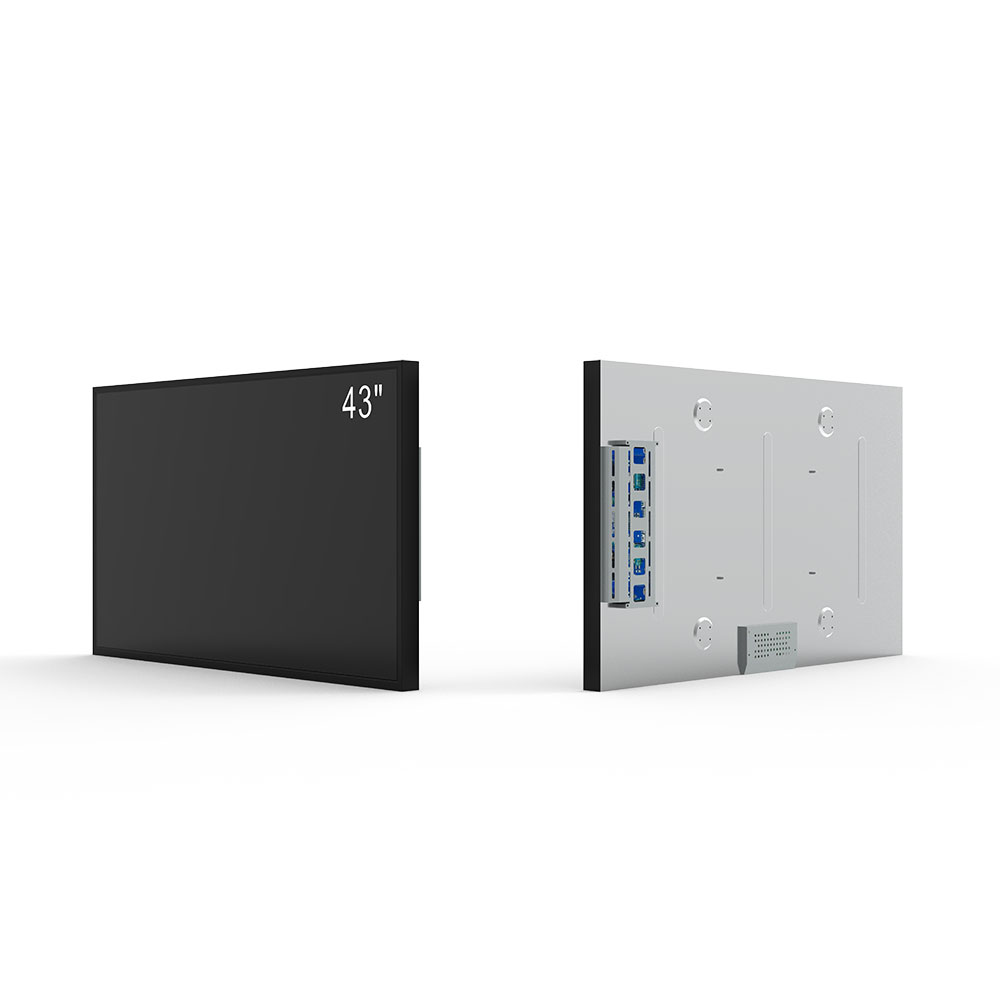

RS430LNX01P01 is a 43 inch LCD display from Risingstar, which is a special product in our list, this display was modified from one of our classic product RS430MNX01D01, with lower brightness but higher grade water and dust proof.

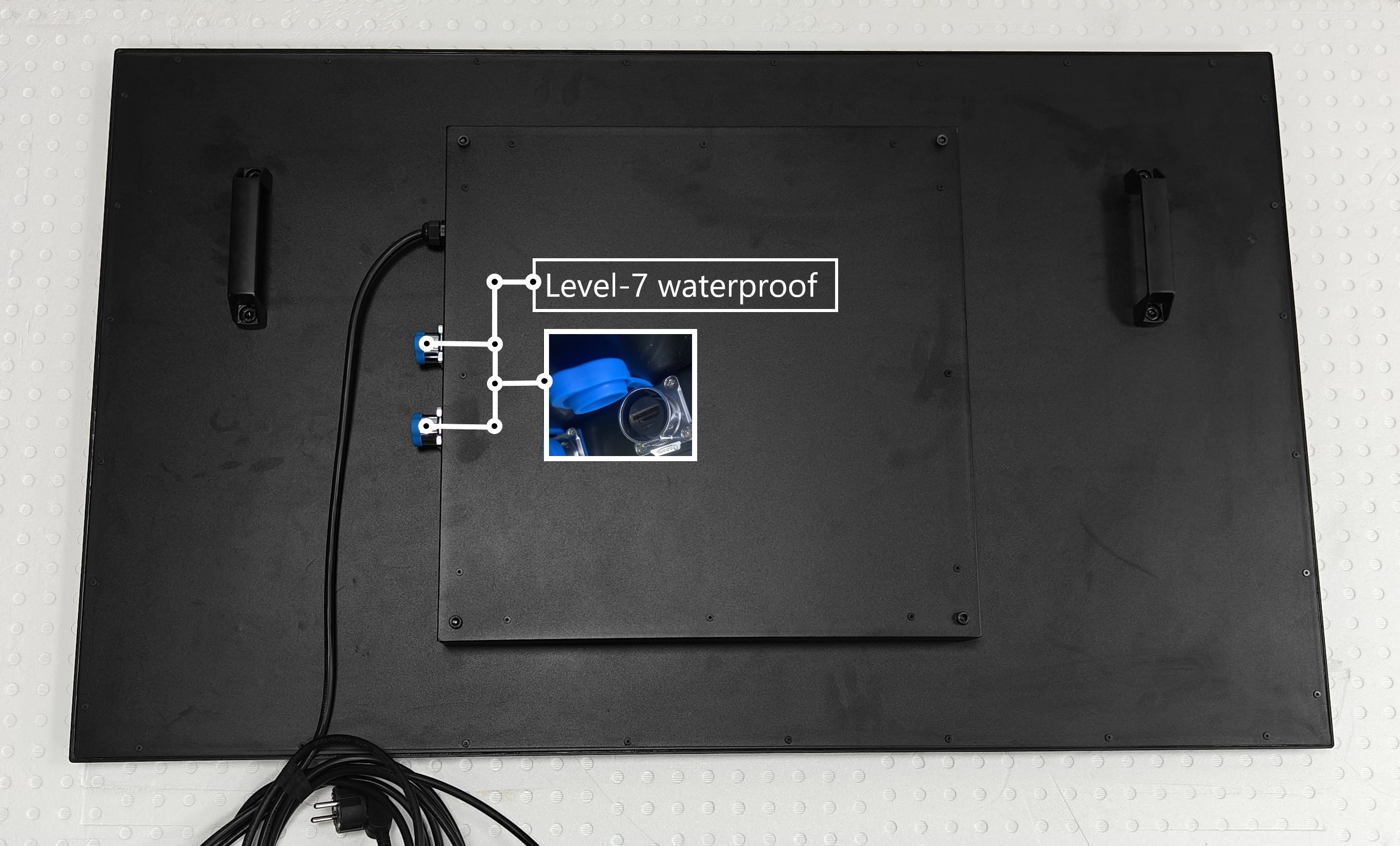

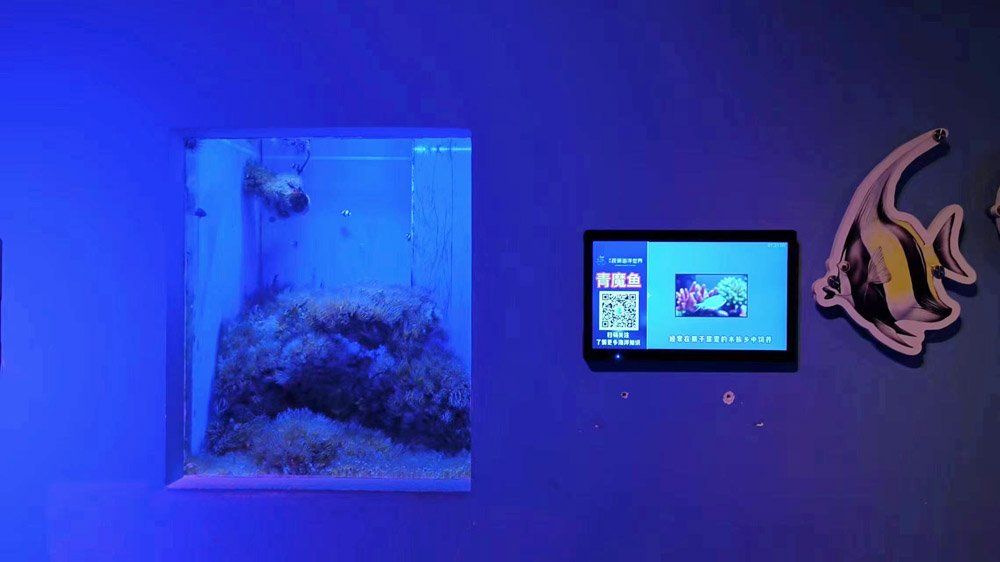

In usually, Risingstar always focus on ultra high brightness LCD display and LCD panel, this low brightness indoor IP67 waterproof display is specially designed for the indoor environment with low ambient light also high humidity place, such like Aquarium and ship/yacht/boat.
Depends on the lowe birghtness, RS430LNX01P01 only need 51W for power consumption, so you do not need worry about the consumption if mounting it on the boat, more information please searching on our website: www.risinglcd.com
Size (inch) | 21.5 | 32 | 43 | 55 | 65 |
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430LNX01P01 | RS550MNX01D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 500 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 51 | 265 | 300 | ||
Operating temperature | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C | -20 ~ 70 °C |
LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

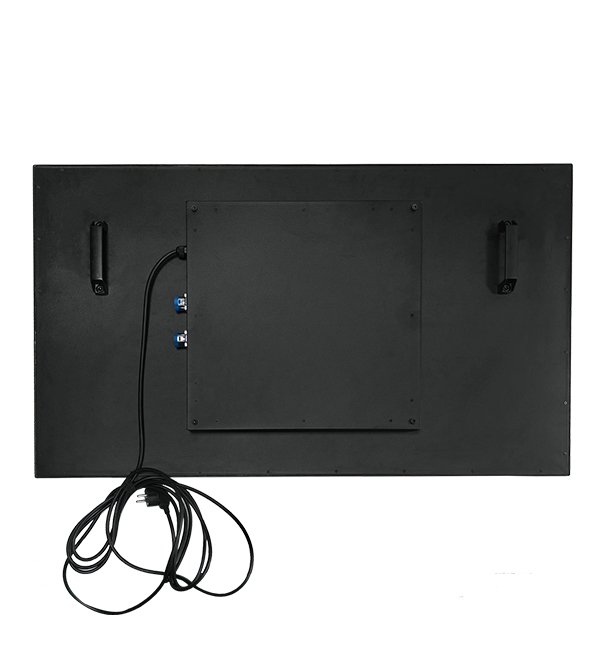

Hosuing: The classic Risingstar display has full metal shells with matte black coating, this allowed the display has strength to afford and protect the vulnerable electroinc components from possibly impacts.

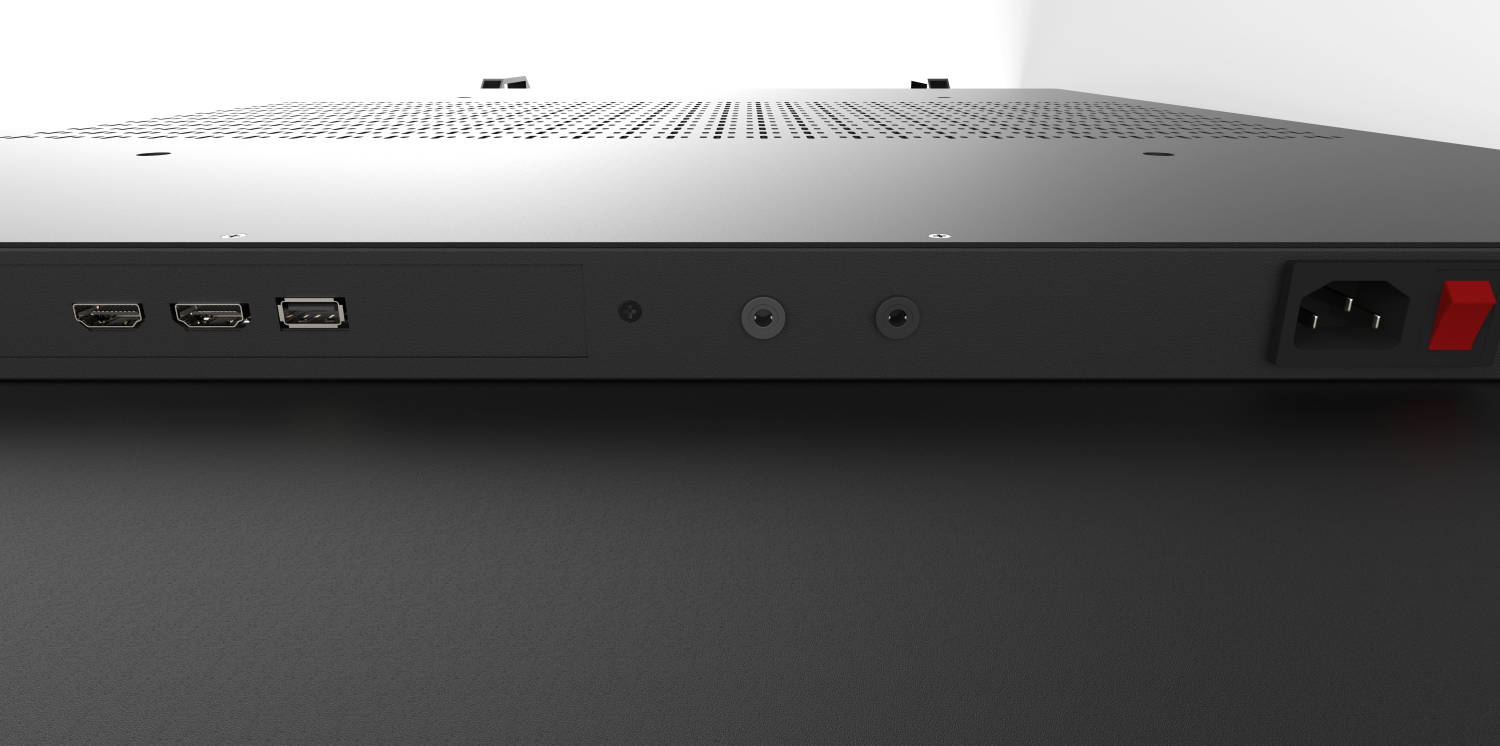

Electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possible OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
43-inch window facing display series:
RS430MNX01D01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...
| Display | Panel Size | 43 inch |
| Panel Brand | LG/AUO/BOE | |
| Display Area | 940.9*529.3 MM | |
| Brightness | 500 cd/m2 | |
| Resolution: | 1920*1080 | |
| Aspect Ratio: | 16:9 | |
| Constrast Ratio. | 1200/1 | |
| Response Time | 8 (Typ.)(Tr/Td) ms | |
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |
| Backlight | （DLED) | |
| Life Hour | up to up to 50,000 hoursours | |
| Control System | Smart Dimming | Support |
| Intelligent Temperature Control | Support | |
| Remote Control Function | Support | |
| AV Inputs | Video | HDMI, VGA |
| Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ |
| Maximum Power | 51W | |
| Shell | Shell Material | Sheet Metal |

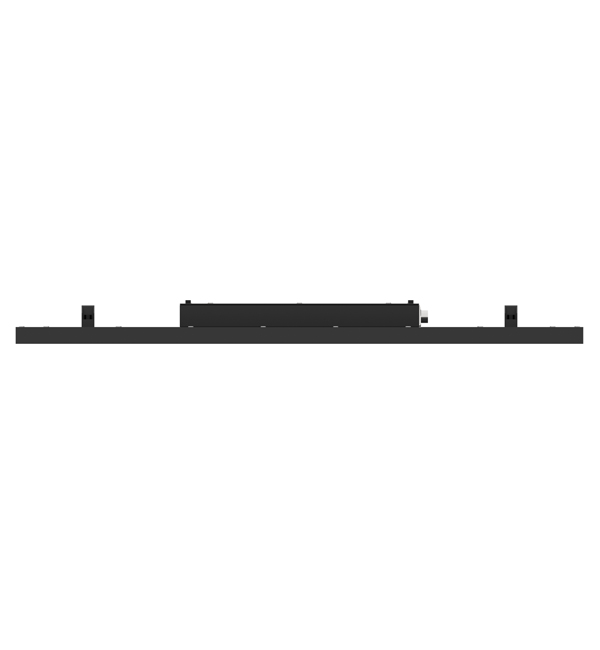

| Product Size | 1020*608.5*72mm | |
| Weight | 32.5kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | |
| Protection Glass | Thickness | 5mm AR tempered glass |
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount |
| Operating Environment | Operating Environment | Outdoor IP67 |
| Operating Ttemperature and Humidity | -20-70°C/5%-95%RH | |
| Multimedia | Motherboard Type | PC/HD Driver Board (optional) |
| IO interface | HDMI/VGA/DVI | |
| Option | AD Board | Computer Mother Board |
| Network Transmission | Standalone Mode、WIFI、3G、4G | |
| Touch | 10 points touch, 20 points touch, Capacitive touch |
The information described in this specification is preliminary and can be changed without prior notice.
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
