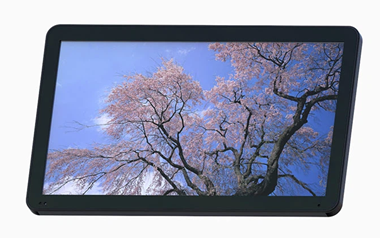

23.6 inch high brightness 1500 nits open frame TFT LCD

23.6 inch high brightness 1500 nits open frame TFT LCD

RisingStar® 23.6 inch RS236HJJ-NE15 sunlight readable display. 1500 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

23.6 inch open frame LCD monitor can be customize in different brightness for multi-usage such as ATM ,viewing digital maps and other indoor or outdoor machines.


23.6 inch open frame LCD monitor main features:

· 1920x1080 Resolution, 16:9 aspect ratio

·3000:1 contrast ratio, and 1500-nit brightness, sunlight readable,

· High quality panel with 89/89/89/89 viewing angle.

· Built-in auto light sensor,

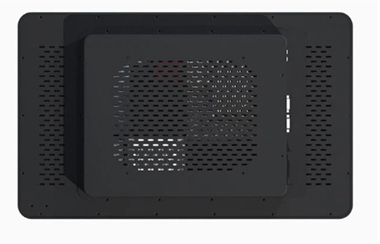

· VESA mount compatibility as standard (rear mount optional)

Open frame

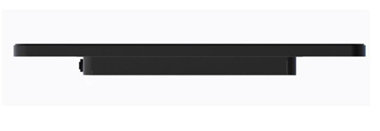

1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.

2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.

3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.

4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.

5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.

High brightness

1500 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.

Screen Diagonal23.6  inch
Model NoRS236HJJ-NE15
Active Area521.28(W)×293.22(H) mm
Pixels1920(RGB)×1080, FHD, 93PPI
Physical Size577.8(W)×357.6(H)×52.2(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
White Luminance ( Center )1500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio3000:1 (Typ.)
Optical Response Time20 (Typ.)(G to G) ms
Nominal Input Voltage5.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g]2.31±0.11Kgs
Interface Type30 pins   LVDS (2 ch, 8-bit)
Support Color16.7M , 72% NTSC
Surface TreatmentHard coating (3H),
RoHS ComplianceRoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS236HJJ-NE15 23.6 inch high brightness display 23.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
