The RisingStar 32-inch Fuel Dispenser Touch Display is not just a robust solution for gas pumps and outdoor kiosks—it also embodies the core features of a stretch bar display (or stretched bar LCD). Designed for ultra-wide, high-brightness, sunlight-readable environments, this display delivers exceptional performance under demanding industrial and outdoor conditions. With up to 5000 nits brightness, industrial-grade low-power architecture, and IP65 waterproof design, it’s the perfect combination of reliability, clarity, and style.
A stretch bar display—also called a stretched bar LCD, ultra-wide bar display, or bar-type signage—is a re-engineered LCD panel cut and reshaped into a wide aspect ratio, typically between 16:3 and 32:9. These displays are designed for tight or narrow spaces, such as fuel dispensers, shelf edges, public transportation, retail signage, and dashboard systems.
Because of their elongated shape, stretch bar displays can efficiently deliver dynamic digital content in spaces where standard 16:9 or 4:3 displays cannot fit. They are widely used in smart retail, EV charging stations, train and metro information boards, subway passenger information displays, and digital advertising strips.
Engineered for performance and longevity, RisingStar’s stretched bar displays combine cutting-edge technology with industrial reliability.
Up to 5000 nits brightness ensures perfect visibility even in direct sunlight.
High contrast ratio (3000:1) and optical bonding minimize glare and reflection.
Anti-glare coating and wide viewing angles (178°/178°) ensure consistent clarity from all directions.
IP65-rated protection against dust and water ingress.
-30°C to +80°C extreme temperature operation.
Aluminum alloy housing with lightweight and efficient heat dissipation.
Over 50,000 hours lifespan for long-term reliability in outdoor installations.
Custom direct-lit LED backlight for energy efficiency.
Intelligent thermal design reduces power usage and extends panel life.
Available in open frame, panel mount, or enclosure-integrated formats.
Compatible with Android / Windows / Linux systems.
Supports HDMI, VGA, RS232, USB, LAN, WiFi, and 4G/5G options.
Can be customized for aspect ratio, resolution, and brightness level based on project needs.
Optional 10-point capacitive touch with glove and water operation modes.
Anti-fingerprint and scratch-resistant cover glass.
Ideal for interactive fuel dispensers, smart retail displays, and transportation terminals.
Stretch bar LCDs are rapidly transforming how digital content is displayed in confined or elongated environments. RisingStar provides tailor-made solutions for a wide range of industries:
| Industry | Typical Application | Display Function |
|---|---|---|
| Fuel & EV Charging Stations | Fuel dispenser screen, charging kiosk | Advertisement, price info, promotions |
| Public Transportation | Metro, train, bus, tram displays | Passenger information, arrival times |
| Retail & Supermarkets | Shelf-edge display, menu bar, window signage | Real-time promotions and pricing |
| Smart Buildings & Real Estate | Lobby or elevator strip signage | Digital wayfinding and branding |
| Casino & Entertainment | Slot machine interfaces, gaming dashboards | Information and status displays |
| Industrial & Logistics | Control panels, dashboards | Status, process visualization |
As a leading industrial LCD manufacturer, RisingStar specializes in high-brightness outdoor displays, sunlight readable LCDs, and custom digital signage displays for mission-critical environments.
With over 15 years of experience in display manufacturing, RisingStar has supplied custom LCD panels to transportation, energy, and retail industries worldwide. Each product is certified under CE, FCC, and RoHS standards and undergoes rigorous vibration, temperature, and humidity testing.
We offer multiple aspect ratios (8:3, 16:3, 32:9, etc.), brightness levels (1000–5000 nits), and size ranges from 6.2” to 86” to match your project requirements. Stretch bar displays can be fully tailored in terms of mounting, brightness, interface, touch function, and system integration.
Our displays are tested for 50,000-hour operation, featuring wide temperature backlight modules, anti-UV coatings, and optimized heat dissipation for long-term outdoor use. Each product is engineered to maintain stable performance under harsh sunlight and temperature fluctuations.
Direct LED backlight ensures uniform brightness and lower power draw.
High-transmission panel enhances clarity under sunlight.
Optical bonding reduces reflection and prevents fogging or internal condensation.

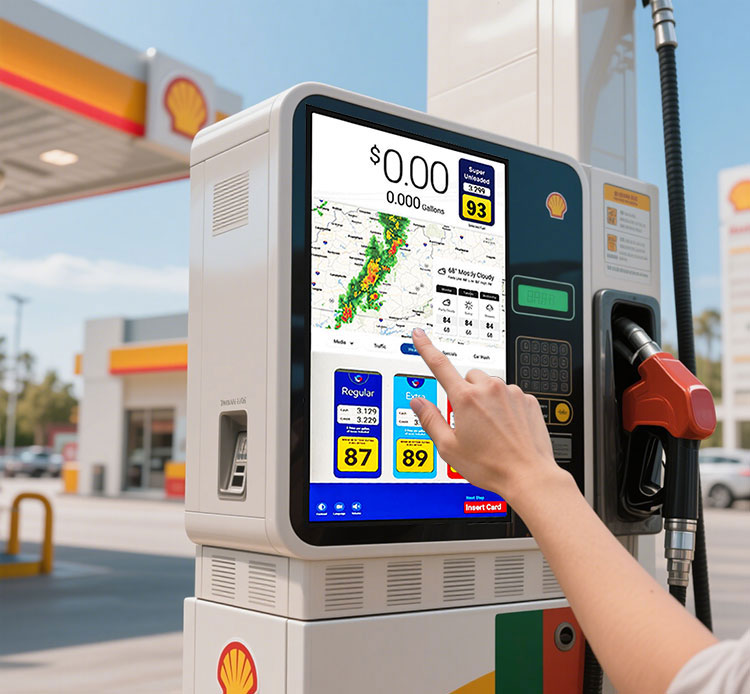

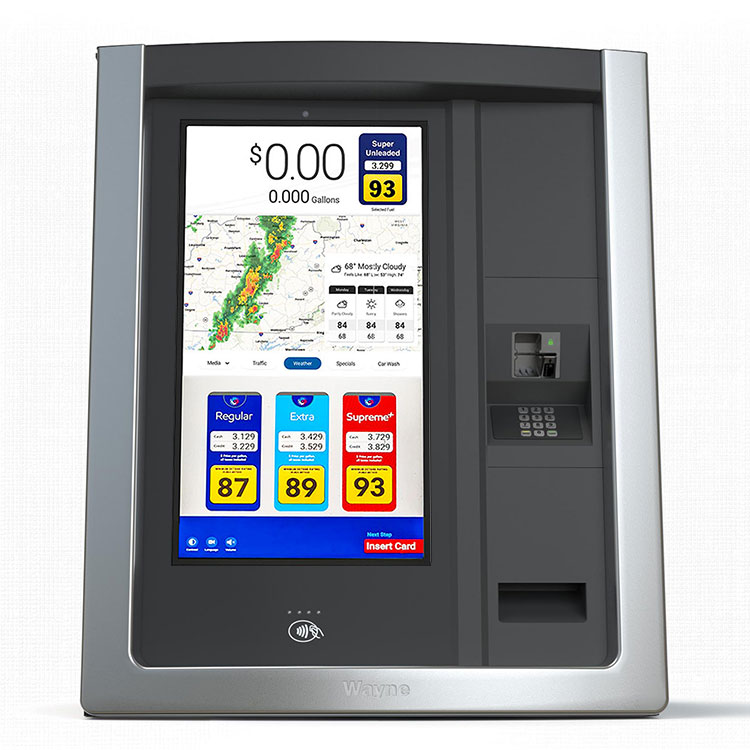

This 32-inch touch display is specifically designed for fuel dispensers and outdoor advertising kiosks, combining stretch bar design with high brightness and interactive capability. It provides real-time digital content such as fuel prices, promotions, video ads, and weather updates, making it ideal for gas stations, EV charging points, and roadside advertising.
| Parameter | Specification |
|---|---|
| Screen Size | 32-inch (stretched) |
| Brightness | 3500–5000 nits |
| Resolution | 1920×540 / 1920×480 (customizable) |
| Contrast Ratio | 3000:1 |
| Operating Temp | -30°C to +80°C |
| Lifespan | ≥ 50,000 hours |
| Touchscreen | Optional PCAP multi-touch |
| Interfaces | HDMI, VGA, USB, RS232, LAN, Audio |
| Enclosure | Aluminum / IP65 sealed front |
| Power | DC 12V / 24V |
| Mounting | Open frame / wall / panel mount |
When choosing a stretch bar display for your project, consider the following key factors:
Brightness & Environment — Outdoor use requires at least 2500–5000 nits brightness with optical bonding and anti-glare coating.
Durability — Ensure IP-rated enclosure, industrial components, and UV-resistant materials.
Aspect Ratio — Select a ratio (e.g., 16:3, 32:9) that fits your installation space and content layout.
System Compatibility — Choose Android or Windows OS according to your content management system (CMS).
Power Efficiency — Look for energy-saving LED backlights and smart dimming to reduce operational costs.
Q1: Can the 32" stretch bar display operate continuously outdoors?
Yes. It is engineered for 24/7 continuous operation, with thermal and power management ensuring stable performance.
Q2: Can I customize the aspect ratio or resolution?
Absolutely. We provide flexible customization including aspect ratio, resolution, and enclosure design to suit your integration needs.
Q3: Is this display compatible with content management systems?
Yes, RisingStar displays support CMS platforms for remote content scheduling, real-time updates, and cloud control.
Q4: Does the touch panel support wet or gloved operation?
Yes, the PCAP touch panel supports multi-touch, wet, and glove operation modes.
Q5: What’s the warranty period?
All RisingStar displays come with a 2-year warranty and lifetime technical support.
RisingStar displays are used by transportation operators, energy providers, and smart retail integrators in over 40 countries. Our customers include leaders in EV infrastructure, public transport, and digital signage industries who demand long-term, sunlight-readable performance.
Looking for a custom stretch bar display solution for your project?
Our engineers will help you design the perfect fit — whether for EV chargers, fuel pumps, or public transport displays.
📞 Tel / WhatsApp: +86 15889469208
📧 Email: info@risinglcd.com
🌐 Website: www.risingstarlcd.com
Rising Star is Global Trusted Manufacturer of Fuel Dispenser Touchscreens
32 Inch Fuel Dispenser Touch Display: Sunlight-Readable, Rugged All-Weather Performance, 30%+ Energy Savings
1. 2000nit High-Brightness Display: Ensures crisp visibility for ads and critical information even under blazing sunlight14.
2. IP65 Dust/Waterproof & Military-Grade Durability: Withstands extreme temperatures (-30℃~80℃), heavy rain,
and impacts for 24/7 reliability in harsh environments.
3. Smart Energy-Saving Mode: reducing annual electricity bills by over $1200.
Why Global Manufacturers Trust This Solution?
1. Patent-Backed Innovation: Advanced touchscreen technology certified for fuel dispenser safety and efficiency.
2. Industrial-Grade Components: Built for high-traffic gas stations with long-term stability and low maintenance56.
3. Direct ROI Boost: Turn customer traffic into ad revenue streams with eye-catching display performance.

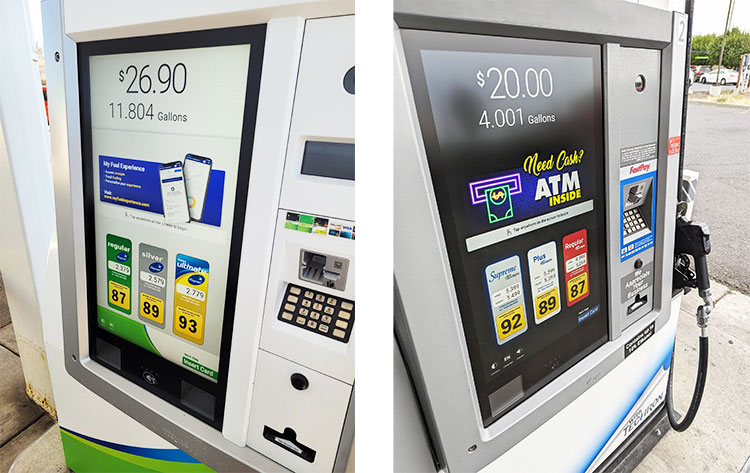

Product application locations

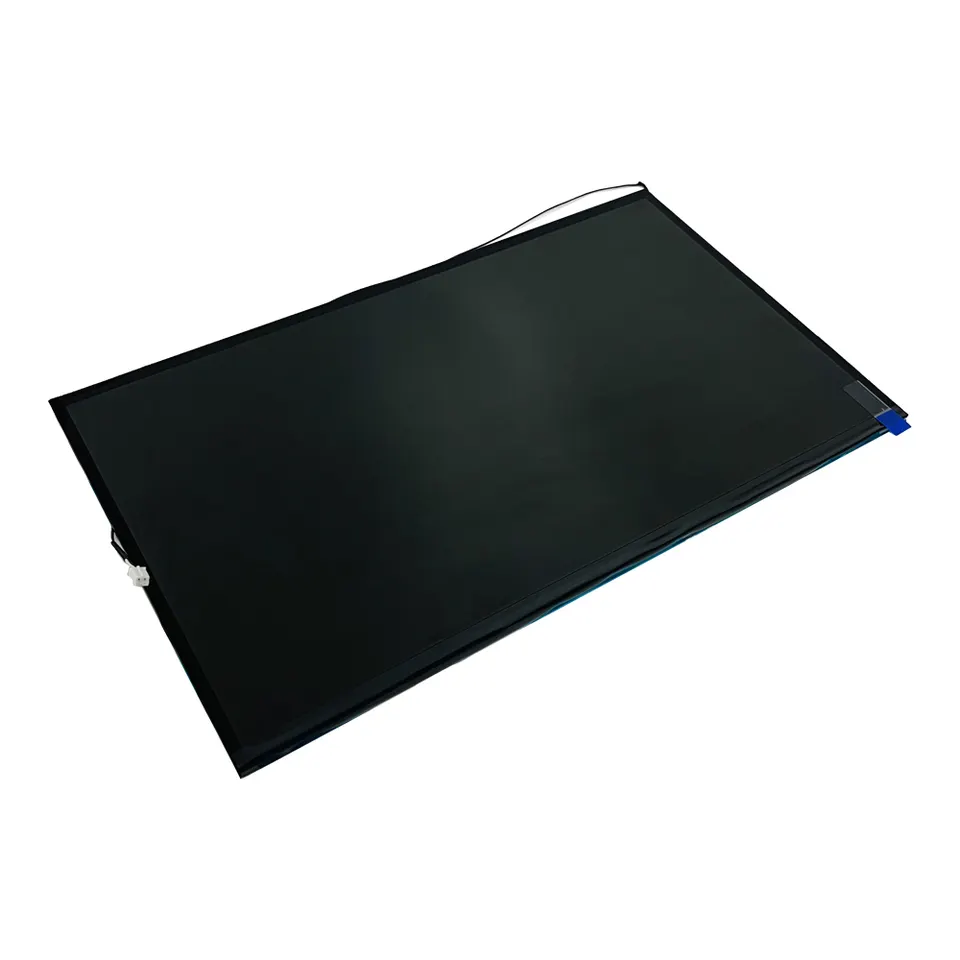

A+ grade wide temperature LCD panel
Normal operation in an environment of 24H-20 ℃ to 70 ℃.
Designed for gas station environments, our display features highly responsive capacitive touch technology with millisecond-level accuracy. It seamlessly supports glove and wet-hand operation, ensuring reliable performance in harsh conditions like fuel spills, temperature shifts, and high-frequency use.
IK10 tempered glass with optical bonding provides the strongest protection
Having multiple national patent certificates
Provide customized LCD screen sizes for various fuel dispensers
10.1 inches to 110 inches, please contact info@risinglcd.com
| Type | Size | Brightness |
|---|---|---|
| LCD module | 10" to 120" | 500 to 5000 nits |
| outdoor monitor | 32" to 75" | 500 to 5000 nits |
| waterproof monitor | 32" to 75" | 500 to 5000 nits |
| bus stop display | 21.5" to 86" | 500 to 5000 nits |
| window display | 43" to 75" | 500 to 3000 nits |
| double-sided display | 10" to 88" | 500 to 3000 nits |
| stretch display | 32" to 75" | 500 to 5000 nits |
| outdoor TV | 43" to 86" | 500 to 3000 nits |
| terrace TV | 10.1" to 86" | 500 to 3000 nits |
| touch monitor | 55" to 86" | 500 to 2500 nits |
| interactive screen | 43" to 86" | 500 to 2000 nits |
| battery Mobile monitors | 43" | 500 to 2000 nits |
| circular monitors | 23.6" | 500 to 3000 nits |
| mirror display | 21.5" to 65" | 500 to 1500 nits |
| Screen Diagonal | 32 inch |
| Brand | Risingstar |
| Model No | RS320FHB-GD20 |
| Active Area | 698.4(W)×392.85(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 69PPI |
| Physical Size | 731.9（H）*431.4(V)*90.5(D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 2000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 15 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 4.85(Typ.) |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 72% NTSC |
| Surface Treatment | Antiglare (Haze 1%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -20 ~ 70 °C |
