21.5 inch 2000nits sunlight readable industrial LCD display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RisingLCD RS215ENT-N20 sunlight readable LCD display are designed to operate in very bright environments, such as in daylight time, one sunlight readable LCD display typically provide at least 1000nits of brightness compared with typical industrial display with 200-300nits.
RS215ENT-20 sunlight readble display is a customized model based on the BOE original industrial GV215FHM-N10 lcd display to meet the requirement for outdoor application with the below advantages:
Brightness over 2000nits, with RisingLCD self-developed backlight design, adopting the imported LED as light source, long life span and energy-efficiency. Wide industrial operation temperature -20 ~ 70 ° specification with robust mechanical design to assure stable function even running under hash outdoor environment.
RS215ENT-20 sunlight readble industrial LCD displays are built with RisingLCD own delveoped LED backlights as well as light sensors for auto brightness dimming, so to save energy and extend the life span of the LCD panel.
RS215ENT-20 sunlight readable industrial LCD display With High TNI LC
Our sunlight readable industrial LCD display applicate the high TNI LC technology which is a great importance for displays that are operating in a strong sunlight condition. Long time exposure in outdoor strong sunlight, the display will associated with excessive heating on the display surface, when the classic LCD display works in such conditions, there occur black spots on the display. RS215ENT-N20 is equipped with a high temperature LCD panel capable of with standing temperatures up to to 110˚C (230°F) without blackening
RS215ENT-20 sunlight readable industrial LCD display supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
RisingLCD is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests. OEM/ODM are all welcomed!
| Item No | RS215ENT-N20 |
| Panel Brand | BOE display |
| Panel Item | GV215FHM-N10 |
| Size | 21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080, FHD, 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.64(W)×268.11(H) mm |

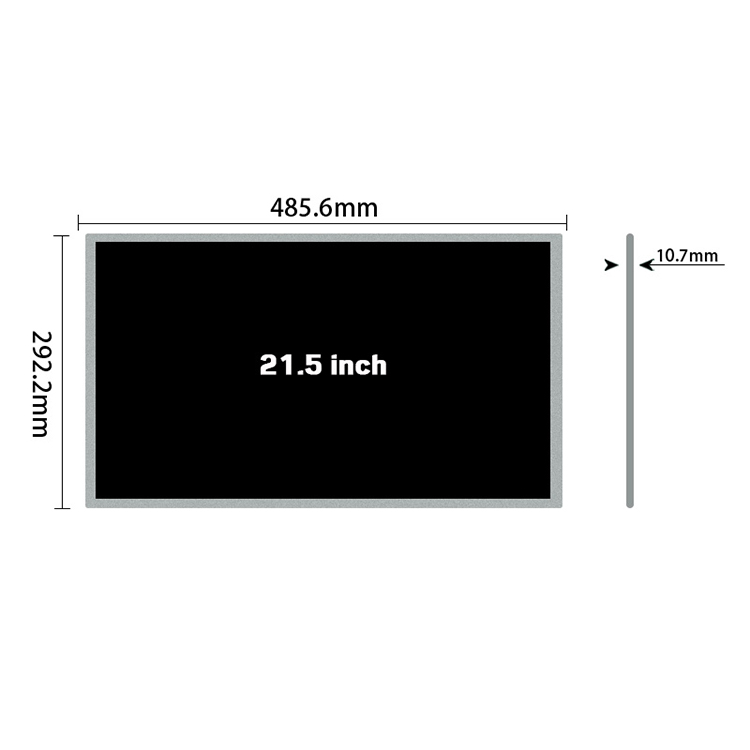

| Outline Size | 485.6(W)×292.2(H) mm |
| Bezel Area | -- |
| Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 2000cd/m² RisingLCD customized |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | ADS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Display Color | 16.7M |
| Backlight | WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Panel Weight | 1.93Kgs (Typ.) |
| Frame Rate | 60Hz |
| Input Voltage | 5.0V(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
