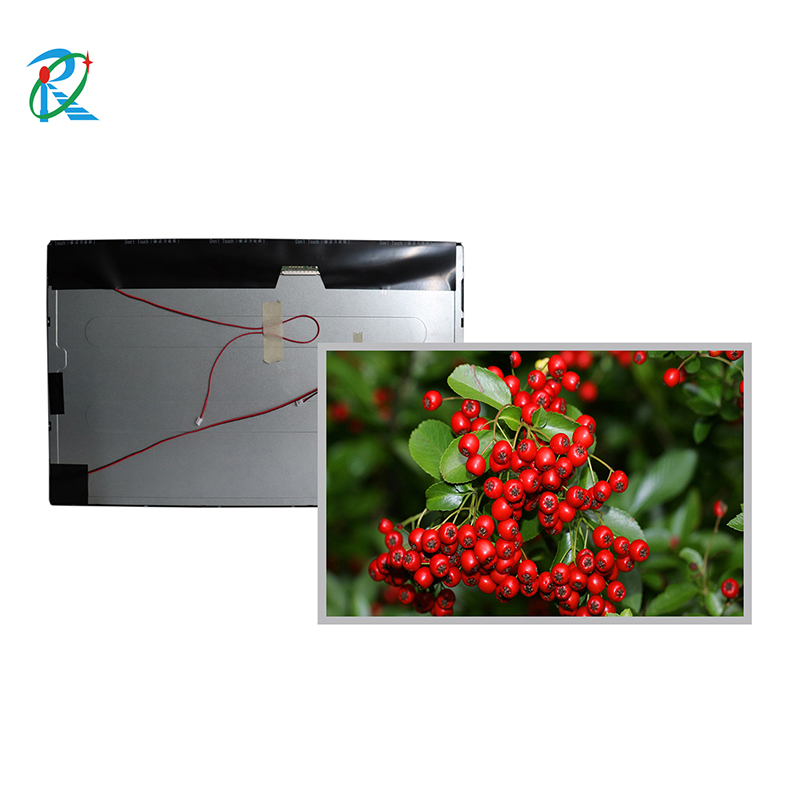

1000 nit TFT outdoor lcd panel
| Brand | Risinglcd |
| Model name | RS133ENT-N13 |
| Screen size | 13.3 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080(RGB) |
| Brightness (cd/m²) | 500-1500 |
Shenzhen risingstar 1000 nits tft outdoor lcd panel ,the size 13.3 inch .Risingstar Outdoor's advanced color management solution provides more detailed color management options, allowing users to fine-tune colors either automatically or manually;Side-entry lighting design, brightness 500--1500nits (optional), brightness uniformity can reach more than 90%;The color saturation is high, the picture is clear, and the picture quality is fine.
1000 nits tft outdoor lcd panel product feature:
1. original AUO/BOE brand lcd panel
2. high brightness 1000nits -1500nits.
3.Ultra HD
4.easy to install.
Size | 13.3inch |
Panel item | RS133NET-N10 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black，transmissive display |
Pixels | 1920*1080 |
brightness | 1000cd/m2 |
Constrast Ratio | 800：1 |
Response Time | 25ms |
View angle | 89/89/89/89 |
View area | 295.07*166.68mm(H*V) |
Dispaly area | 293.472*165.078mm(H*V) |
Outline Size | 309.7*184.1*10.1mm(H*V*D) |
Signal Type | LVDS,30Pin |
Working freqyency | 60Hz |
Working temperature | 0- 70ﾟC |
Storage Temperature | -30 ~ 80 °C |
Display ratio | 16:9 |
Display color | 16.7m |
Nominal Input Voltage | 3.3V |
Surface Treatment | Haze |
Weight | 0.5kgs |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
