65 inch industrial high brightness TFT LCD panel with 2500 nits brightness

65 inch industrial high brightness TFT LCD panel with 2500 nits brightness

RS650ENT-GD25: 65" 2500 nits big-screen panel. 3840x2160. Designed for transit hub displays and stadium screens.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

Risingstar RS650ENT-GD25 is with an ultra HD 4k IPS 65inch BOE industrial LCD panel, high resolution 3840(RGB)×2160 (UHD) 51PPI, and 16:9 aspect ration, the high bright LED backlight display provides over 2500nits of high brightness, and 1200:1 contrast ratio and Transitivity 5.1%, all that of features that making the LCD panel sunlight readable, it is ideal for the outdoor application.

65 inch industrial high brightness LCD Main Features:

Original A grade LCD panel

High resolution: 3840*2160

Brightness up to 2500 nits

Auto brightness control

Wide industrial working temperature '-30 ~80 °C

Aluminum alloy structure easy heat dissipation

24/7 working time

Auto brightness control

Different external lighting condition requires different brightness levels, an onboard light sensor was built-in our industrial high brightness panel that measures the ambient light in the area and automatically adjust the image light accordingly, offer a best experience to the viewer, and also can save the energy cost, reduce the heat and extends the life of the screen.

Wide industrial working temperature

Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. This industrial high brightness LCD panel display is equipped with a high-temperature LCD screen capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.

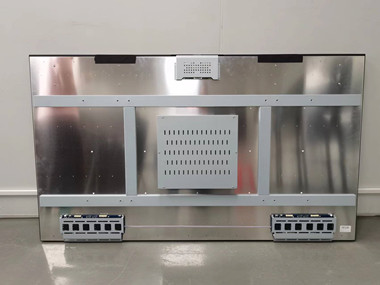

Aluminum alloy structure

We use aluminum alloy structure that is high thermal conductivity to maximize heat transfer, reduces the overall operation temperature, it is ideal to use in a higher environment, the heat dissipation is four times that of the ordinary metal structure.

Application:

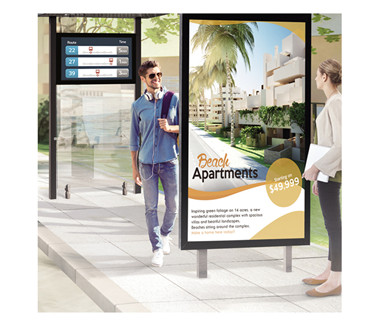

Outdoor digital signage, Industrial Public transportation, Large Shop Windows, Car Dealerships, Wedding Shops, Hotels, Tourism, entire retail and hospitality industry

Screen Diagonal65 inch
Model NoRS650ENT-GD25
Active Area 1431.5*28.48(W)×803.52(H) mm
Pixels3840(RGB)×2160, UHD, 59PPI
Physical Size1661.66(W)×843.1(H)×58(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )3000 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1200:1 (Typ.)
Optical Response Time 8 (Typ.)(G to G) ms
Nominal Input Voltage 12V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g] 28Kgs
Interface Type51 pins   V-by-One 8 lane Connector
Support Color 16.7M,  73% NTSC
Surface Treatment Hard coating (2H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS650ENT-GD25 65 inch high brightness display 65 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
