2500 nits outdoor digital display screens
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

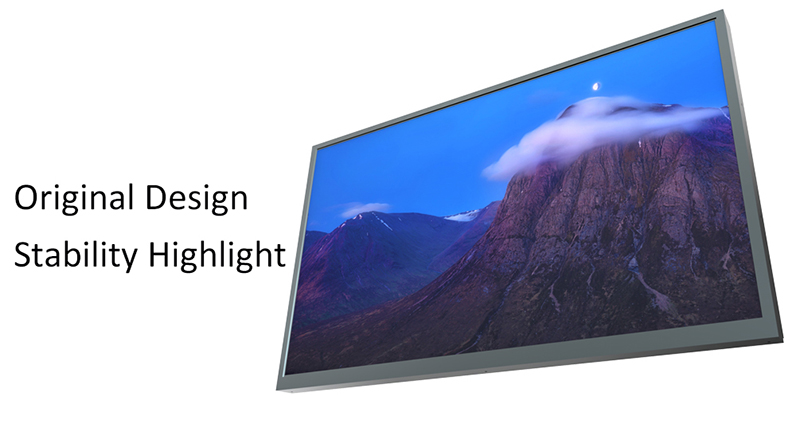

Shenzhen risingstar high bright 2500 nits outdoor digital display screens ,This is high bright lcd panel with LG/AUO/BOE original brand glass. The brand panel has features stable performance, low power, clear picture and long service life.
Outdoor digital display screens feature:

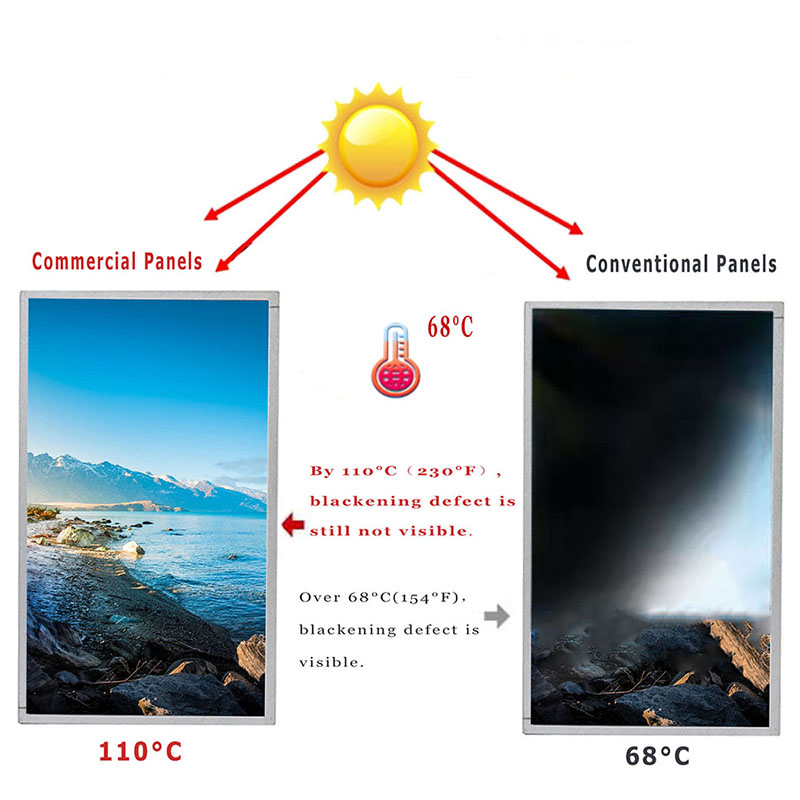

1.LG/AUO/BOE's original grade LCD panel, long-term sunlight without blackening;
2. High and low temperature resistance -30 to 110 degrees;
3. Aluminum alloy structure, better heat dissipation, 3 times better than the conductivity of the electrolytic plate;
4. The backlight supports automatic dimming, knob dimming, PWM dimming;
5. Outdoor special optical materials, with a temperature resistance of 120 degrees Celsius;
6. Direct backlight design, higher reliability.

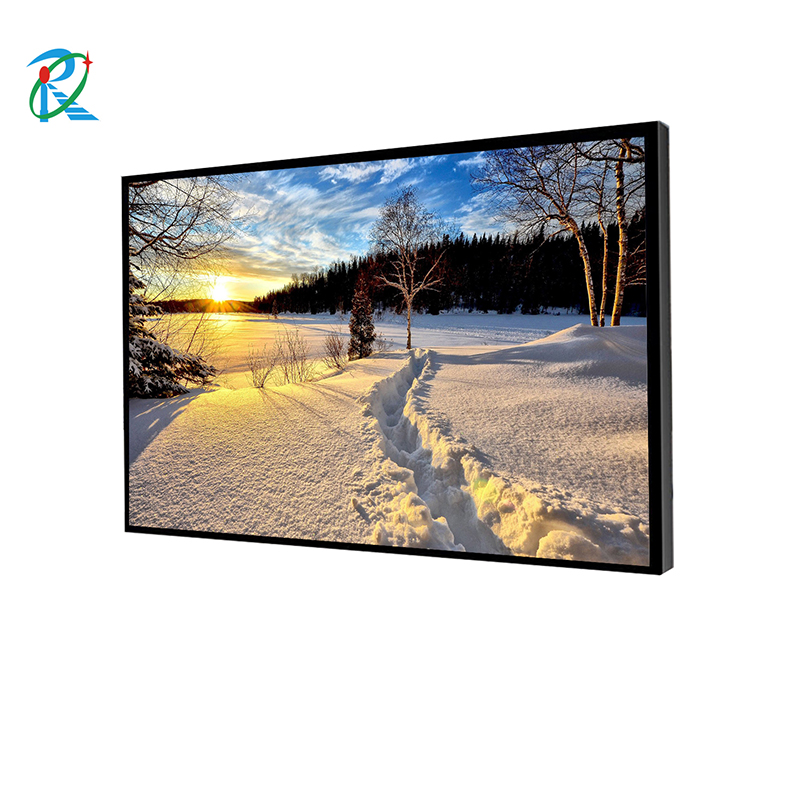

2500 nits outdoor digital display screens,the size 32 inch ,is widely used in park ,gas station,shop windows show,outdoor tv display ,zoo and so on.
Package and shipping
Size | 32inch |
Panel item | RS320NET-N20 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black，transmissive display |
Pixels | 1920*1080 |
brightness | 500-5000cd/m2 |
Constrast Ratio | 1200:1 |
Response Time | 6ms |
View angle | 89/89/89/89 (Min) |
View area | 700.6*396.5mm(H*V) |
Dispaly area | 698.4*392.85mm(H*V) |
Outline Size | 725.2*422.7*14.4mm(H*V*D) |
Signal Type | LVDS |
Working freqyency | 60Hz |
Working temperature | 0- 50ﾟC |
Storage Temperature | -30 ~ 80 °C |
Display ratio | 16:9 |
Display color | 16.7m |
Backlight Voltage | 12V |
Backlight Power Consumption | 40w |
Surface Treatment | Haze 3%,Hard coating(2H) |
Weight | 4kgs |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
