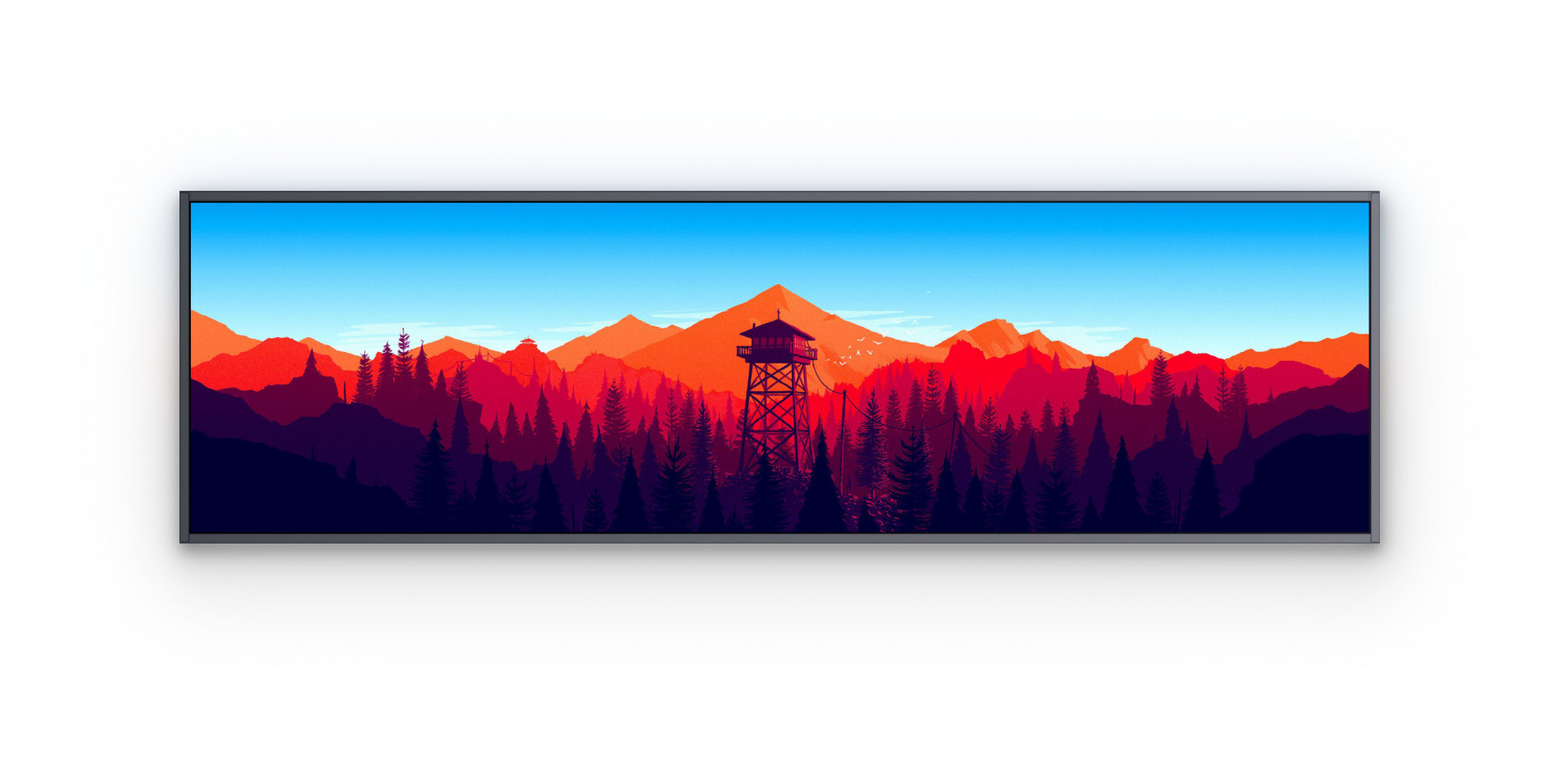

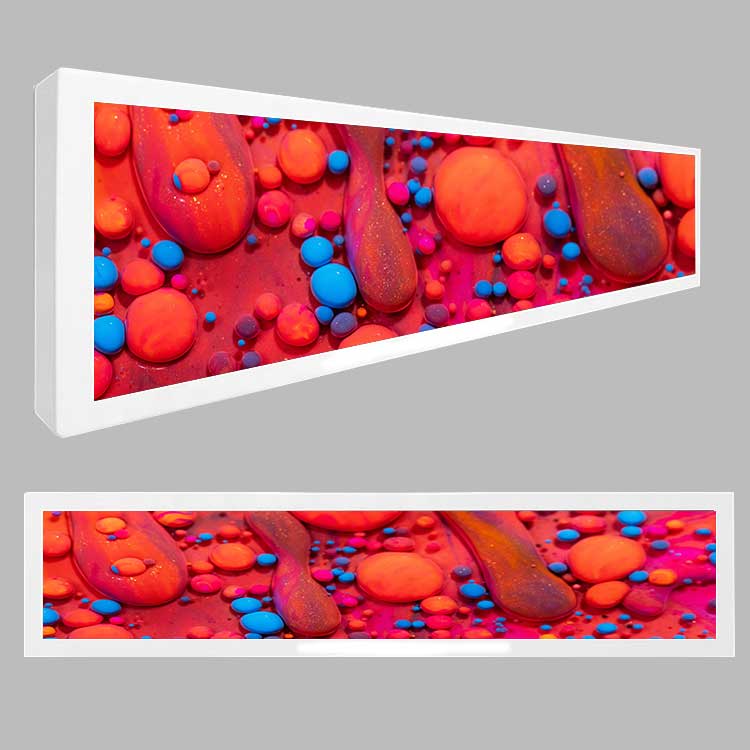

49.5 inch stretch bar LCD monitor P495IVN01.0
| Brand | AUO |
| Model name | P495IVN01.0 |
| Screen size | 49.5 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1920(RGB)×540 |
| Brightness (cd/m²) | 1500 |
49.5 inch stretch bar LCD monitor P495IVN01.0
General Description:

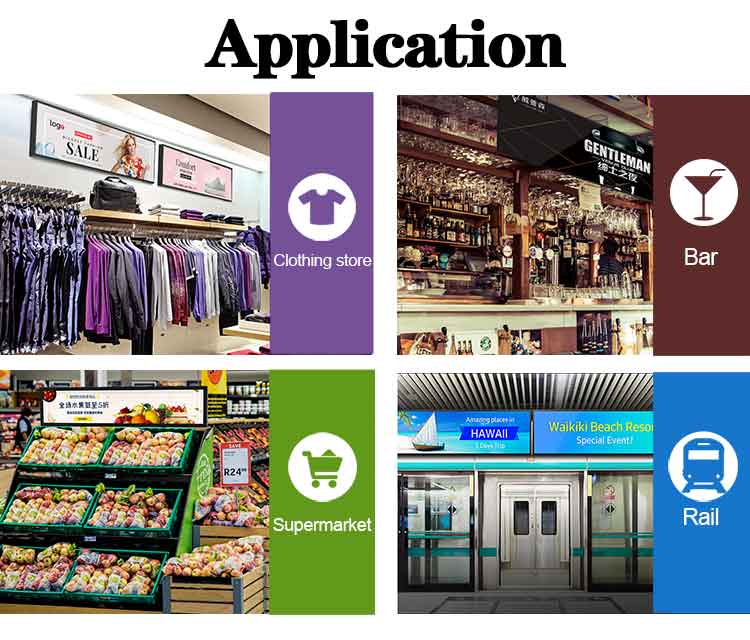

RisingLCD 49.5inch Stretch bar LCD monitor is with the original AUO 2K screen P495IVN01.0, the resolution is 1920*540, and it equipped with an Edge LED backlight, LED inverter, a MVA screen, the monitor characterizes with a brightness of 1500 cd/m², a static contrast ratio of 4000:1. it is widely used in shopping street, supermarket, gas station, Rail.

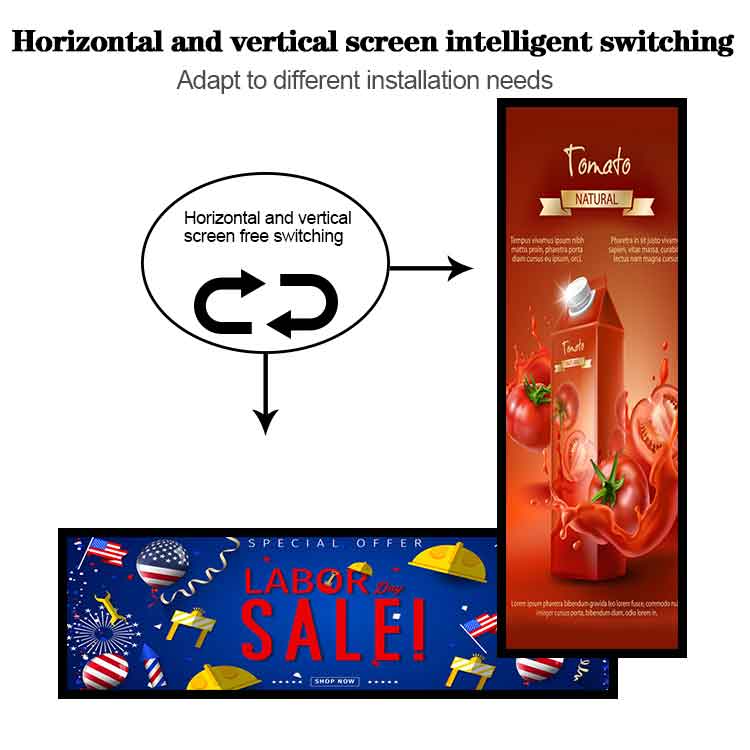

It adapt to different installation needs, horizontal and vertical screen. And support multiple program release channels.
OEM and ODM are welcomed!
RisingLCD Advantage:
OEM/ODM is acceptable!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
RisingLCD is your best choice!
Ref no.P495IVN01.0, P495IVN02.0,
Hot Tags: stretched bar lcd, 3000 nits lcd panel, China, factory, cheap, price, customized, quotation, window facing LCD, 4000 cd/m² LCD Display, 49.5 inch, Strip Screen, industrial
| 49.5 inch stretch bar LCD monitor P495IVN01.0 | |
| Panel Brand | AUO |
| Panel Item | P495IVN01.0 |
| Size | 49.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)*540 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1209.6*340.2(H*V)mm |
| Outline Size | 1212.6*343.2(H*V)mm |
| Bezel Area | 1232.4*363*29(W*H*D)mm |
| Surface Treatment | Antiglare (Haze 28%) Hard coating(3H), |
| Brightness | 1500-3000cd/m² |
| Constrast Ratio. | 4000：1（Typ.)(TM) |
| View Angle | 89/89/89/89(Min) |
| Display Model | AMWV3, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 8(Typ.)(G to G) ms |
| Display Color | 16.7B 72% sRGB |
| Backlight | WLED, 70K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 6.4Kgs |
| Frame Rate | 60Hz |
| Signal Interface | LVDS(2ch,8-bit), 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
