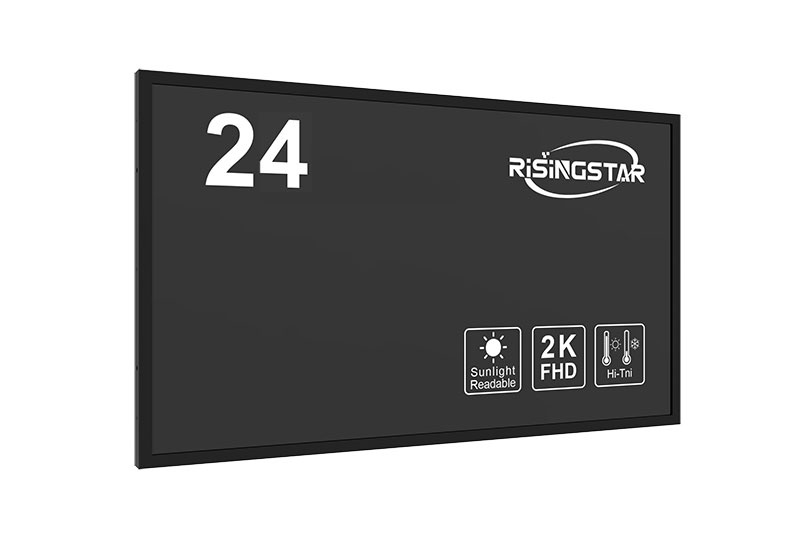

RisingStar’s 24-inch 2000nits sunlight readable industrial LCD display is engineered for environments where ordinary monitors fail. Delivering four to six times the brightness of standard displays, this screen ensures crystal-clear visibility even under direct sunlight. With rugged design, wide temperature tolerance, and long service life, it is the ideal solution for outdoor kiosks, transportation systems, industrial controls, and digital signage.

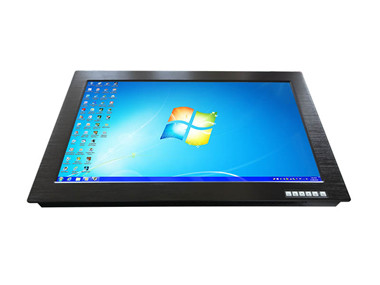

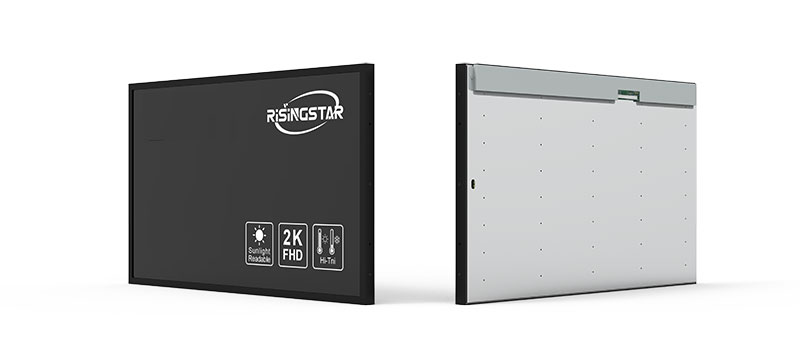

RisingStar physical picture
Ultra High Brightness: 2000 nits luminance for full sunlight readability.
Optical Bonding & Anti-Reflection: Reduces glare, increases contrast, and strengthens durability.
Wide Operating Temperature: Reliable from -20°C to +70°C for outdoor and industrial use.
Energy-Efficient LED Backlight: Low power consumption with >50,000 hours lifespan.
Durable Aluminum Housing: Lightweight, slim, and designed for thermal efficiency.
Wide Viewing Angle (178°): Clear images from multiple perspectives.

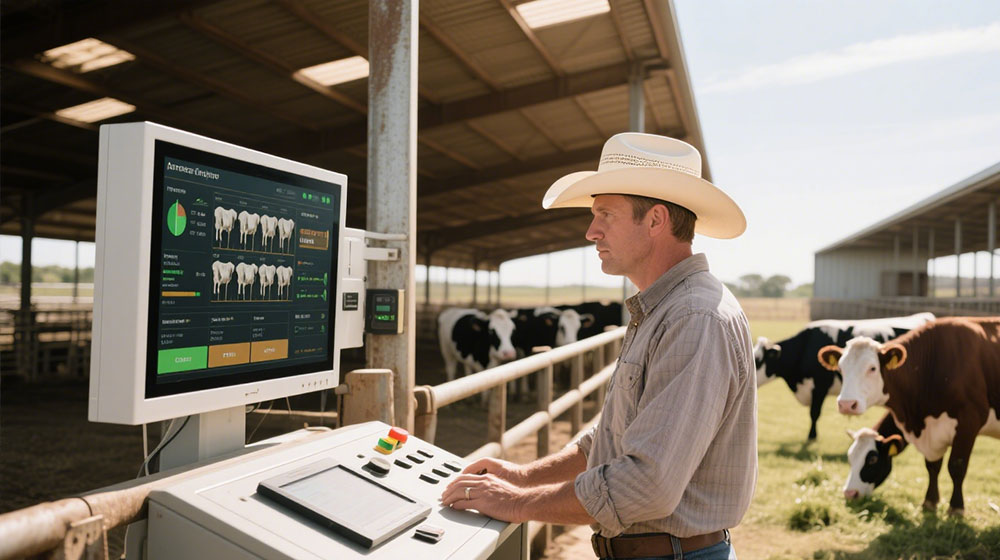

RisingStar Application Cases
24 inch 2000nits Sunlight Readable Industrial LCD Display Specifications
| Item | Specification |
|---|---|
| Item No | RS240ENT-N20 |
| Panel Brand | RisingStar |
| Panel Item | G240HW01 V1 |
| Size | 24 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920 (RGB) × 1080 (FHD), 91 PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 531.36 × 298.89 (H × V) mm |
| Outline Size | 556 × 323.2 × 17 (H × V × D) mm |
| Bezel Area | 535.36 × 302.89 (H × V) mm |
| Surface Treatment | Antiglare (Haze 25%), Hard Coating (3H) |
| Brightness | 2000 cd/m² (RisingLCD Customized) |
| Contrast Ratio | 5000:1 |
| View Angle | 89/89/89/89 (Typ., CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 16/9 ms (Typ., Tr/Td) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight | 10S7P WLED, 50K hours, with LED Driver |
| Touch Screen | Without |
| Panel Weight | 2.30 ± 0.2 Kgs |
| Frame Rate | 60 Hz |
| Input Voltage | 5.0 V (Typ.) |
| Working Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State | In Production |
Brightness, measured in nits (cd/m²), is the key factor for outdoor readability. A typical office monitor offers just 300 nits, while semi-outdoor displays reach around 1000 nits. RisingStar’s industrial-grade panel pushes the limit to 5000 nits, ensuring text, images, and video remain sharp and vivid even in direct sunlight.
| Display Type | Brightness (nits) | Outdoor Visibility |
|---|---|---|
| Standard Office Monitor | 300–500 | Unreadable in sunlight |
| Semi-Outdoor Display | 800–1000 | Readable in shaded areas |
| RisingStar Sunlight Readable Monitor | 1000 to 5000 | Fully readable in direct sunlight |
The 24-inch 2000nits sunlight readable monitor is widely adopted across industries where visibility and reliability are mission-critical:
Transportation: Passenger information displays at bus stops, metro stations, and railway platforms.
Industrial: Factory automation control panels, EV charging stations, oil & gas instrumentation.
Commercial: Outdoor kiosks, retail signage, fuel dispenser screens, parking systems.

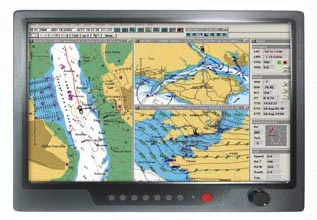

Marine & Military: Navigation consoles, rugged outdoor control systems, mission-critical field applications.
Engineered for industrial reliability, the monitor operates flawlessly in extreme environments. With a backlight lifetime of over 50,000 hours and optional IP65 protection, it delivers consistent performance for 24/7 operations. Compliance with CE, FCC, and RoHS standards ensures product safety and environmental responsibility.
Lightweight aluminum housing with excellent heat dissipation.
Open frame or panel mount installation options.
Optional ambient light sensor for automatic brightness adjustment.
VESA compatibility for flexible mounting.
What is the ideal brightness for outdoor readability?
Anything above 1000 nits is considered sunlight readable, but 2000 nits ensures full visibility even under direct sunlight.
How does optical bonding improve performance?
It reduces internal reflections, increases contrast, and enhances durability by eliminating the air gap between the LCD and cover glass.
Can this monitor withstand harsh environments?
Yes. With a -20°C to +70°C operating range and optional IP65 protection, it is built for industrial and outdoor deployment.
What’s the difference between 1000 nits and 2000 nits?
1000 nits may be sufficient in shaded outdoor areas, but 2000 nits guarantees clear visibility under direct sunlight.
Contact RisingStar today for a quote, datasheet, or technical consultation.
RS240ENT-20 sunlight readable display is a customized model based on the AUO original industrial G240HW01 V1 lcd display to meet the requirement for outdoor application with the below advantages:
True AUO Industrial Grade LCD Panel
2000 nits (cd/m²) sunlight readable Brightness
Auto Brightness Control
Wide Operational Temperature Range
High Environmental Performance and Reliability
5000:1 Exceptional Contrast for Improved Sunlight Readability
Touch Screen Technologies Available(optional)
True AUO Industrial Grade LCD Panel
AUO 24.0 inch diagonal TFT LCD display, with LED driver, wide operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C and high resolution1920(RGB)×1080 (FHD) 91PPI. 5000:1 Constrast Ratio, this LCD panel is ideal for industrial equipments.
With RisingLCD customized LED Backlight, this RS240ENT-N20 sunlight readable LCD display can achieve 2000nits high brightness and it is recommended to operate in very bright environments, such as in daylight time, one sunlight readable LCD display typically provide at least 1000nits of brightness compared with typical industrial display with 200-300nits.
Auto Brightness control,
RS240ENT-20 sunlight readble industrial LCD displays are built with RisingLCD own delveoped LED backlights as well as light sensors for auto brightness dimming, so to save energy and extend the life span of the LCD panel.
High Environmental Performance and Reliability
Our sunlight readable industrial LCD display applicate the high TNI LC technology which is a great importance for displays that are operating in a high environmental such as a strong sunlight condition. high TNI LC technology improve this display wide environmental performance and reliablity. Long time exposure in outdoor strong sunlight, the display will associated with excessive heating on the display surface, when the classic LCD display works in such conditions, there occur black spots on the display. RS240ENT-N20 is equipped with a high temperature LCD panel capable of with standing temperatures up to to 110˚C (230°F) without blackening
5000:1 Exceptional Contrast for Improved Sunlight Readability
5000: 1 High Constrast Ratio of this display, will highly improve this display sunlight readability, and let the information and words will be read even in the strong sunlight.
.
RisingLCD is a high-tech enterprise specilized in the research and development of outdoor high brightness LCD modules, with many years experience in the design and manufacturing and sales, we can offer you 10.1inch to 100inch LCD panel with brightness of 500nits to 5000nits according to the customers requests.
OEM/ODM are all welcomed!
| Item No | RS240ENT-N20 |
| Panel Brand | RisingStar |
| Panel Item | G240HW01 V1 |
| Size | 24 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080 (FHD) 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 531.36 × 298.89 (H×V)mm |
| Outline Size | 556 × 323.2 × 17 (H×V×D)mm |
| Bezel Area | 535.36 × 302.89 (H×V)mm |
| Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 2000cd/m² RisingLCD customized |
| Constrast Ratio. | 5000:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | AMVA3, Normally Black, Transmissive |
| Response Time | 16/9 (Typ.)(Tr/Td) ms |
| Display Color | 16.7M 72% NTSC |
| Backlight | 10S7P WLED , 50K hours , With LED Driver |
| Touch Screen | Without |
| Panel Weight | 2.30±0.2Kgs |
| Frame Rate | 60Hz |
| Input Voltage | 5.0V(Typ.) |
| Working Temperature | -20 ~ 70 ° |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
