65 inch Larger size outside LCD monitor DV650QUM-N00
| Brand | RisingStar |
| Model name | RS650QUB-GD30 |
| Screen size | 65 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840 2160 |
| Brightness (cd/m²) | 1500 to 5000nits |
65-Inch Outdoor High-Brightness LCD Monitor RS650QUB-GD30
Sunlight Readable • Optical Bonding
Product Overview
The RS650QUB-GD30 65-inch outdoor LCD monitor is designed for demanding environments where visibility and durability are critical. Featuring ultra-high brightness (1500 nits+), optical bonding technology, this display delivers clear and vibrant images even under direct sunlight. It is the perfect solution for outdoor digital signage, EV charging stations, transportation hubs, and stadium applications.
Key Features & Specifications
Screen Size: 65 inches
Brightness: ≥ 1500 nits, ensuring sunlight readability
Contrast Ratio: [insert value] for superior image clarity
Optical Bonding: Eliminates internal reflections and enhances durability
Resolution: [insert resolution, e.g., 3840×2160 (4K UHD)]
Viewing Angle: Wide angle for consistent visibility
Operating Temperature: [insert temperature range]
Lifetime: [insert backlight lifespan, e.g., 50,000+ hours]
Interfaces: HDMI / VGA / USB / Custom options

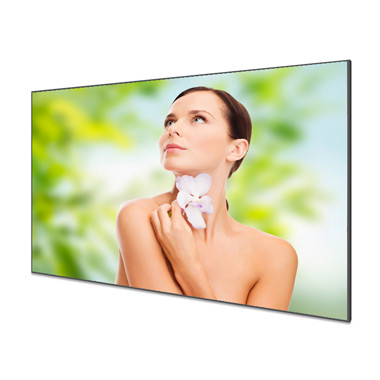

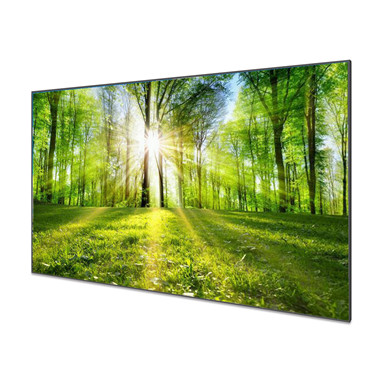

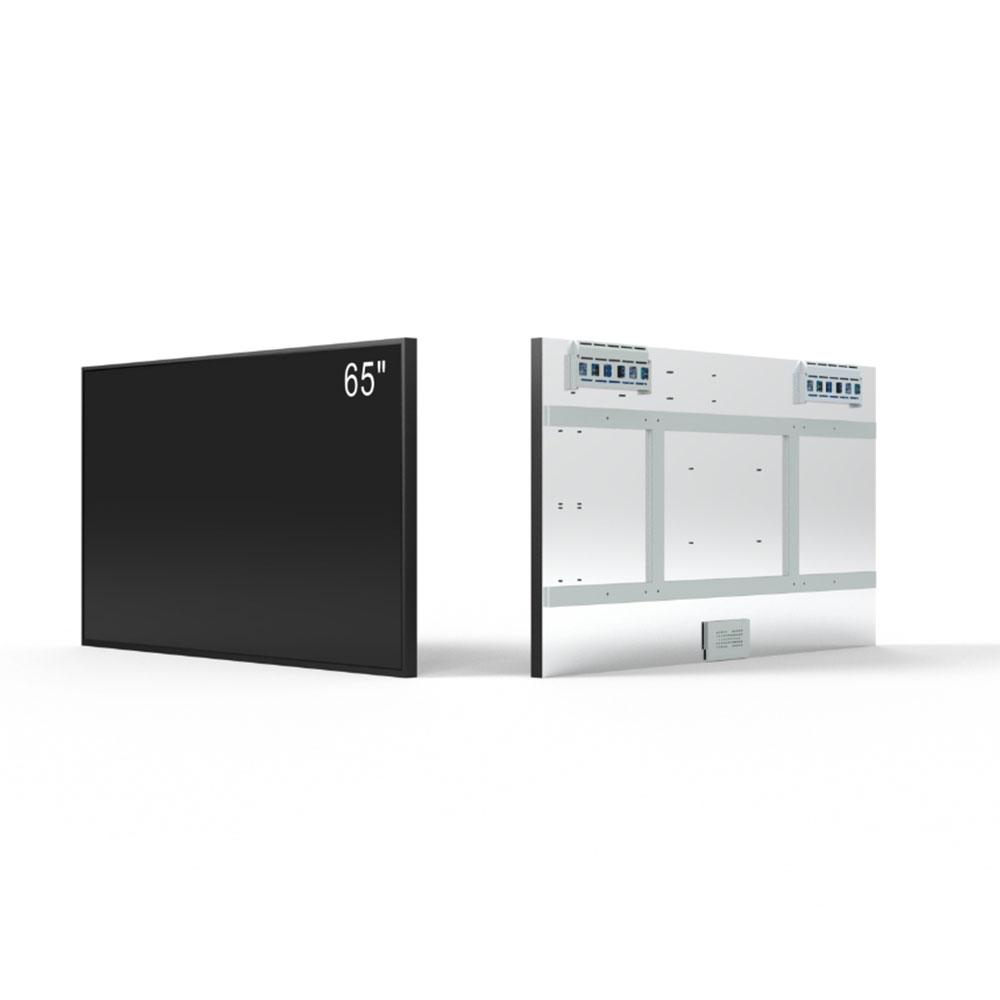

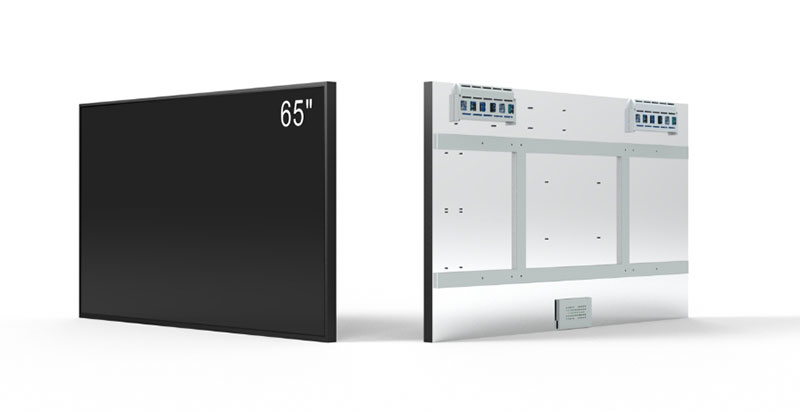

Product images
Application examples
Technical specifications
| Specification | Details |
|---|---|
| Panel Size | 65 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 × 2160 (UHD), 68 PPI, RGB vertical stripe |
| Active Area | 1428.48 mm (W) × 803.52 mm (H) |
| Outline / Opening Area | 1433.4 mm (W) × 808.6 mm (H) |
| Surface Treatment | Matte (Haze 28%), Hard Coating 2H |
| Brightness | 1500 to 5000 nits |
| Contrast Ratio | 1100:1 (Typ., Transmissive) |
| Recommended Viewing Angle | Full Viewing Angle |
| Response Time | 8 ms (Typ., G to G) |
| Viewing Angle (Min.) | 89° / 89° / 89° / 89° (Left/Right/Up/Down, CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 1.07B colors, 68% NTSC |
| Backlight Type | WLED, 50,000 hours, No driver |
| Weight | 21.5 kg (Typ.) / 22.6 kg (Max.) |
| Application | Outdoor/Indoor displays, digital signage |
| Frame Rate | 60Hz standard; 120Hz (60Hz input) via MEMC; 120Hz+120Hz panel + backlight; 240Hz (60Hz input) via MEMC |
| Touch Technology | None |
| Interface Type | 51 pins, V-by-One 8 lanes |
| Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Supported IPS Hard-Screen Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Soft-Screen Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
Why Choose RS650QUB-GD30?
🌞 Sunlight Readable – Engineered for crystal-clear visibility in bright outdoor environments.
🔌 Flexible Applications – Compatible with outdoor advertising, charging stations, transportation displays, and public information kiosks.
♻️ Energy Efficient – Designed for long-term use with optimized power consumption.
Application Scenarios

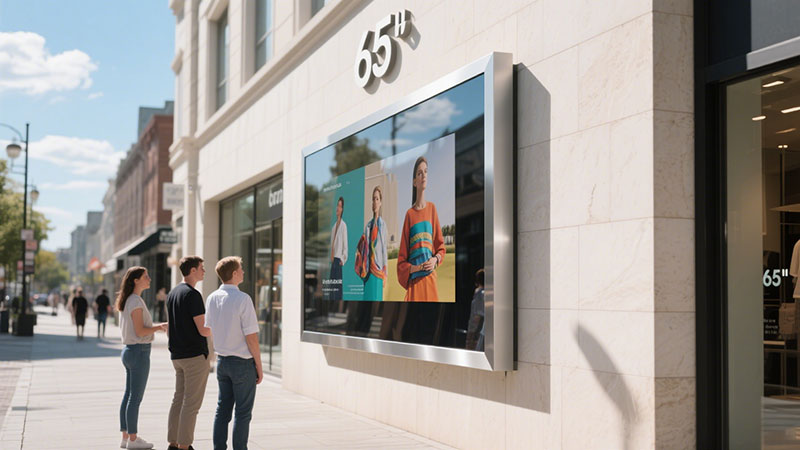

Outdoor Digital Signage: Perfect for shopping centers, plazas, and retail promotions.
EV Charging Stations: Clear visibility ensures smooth user interaction.

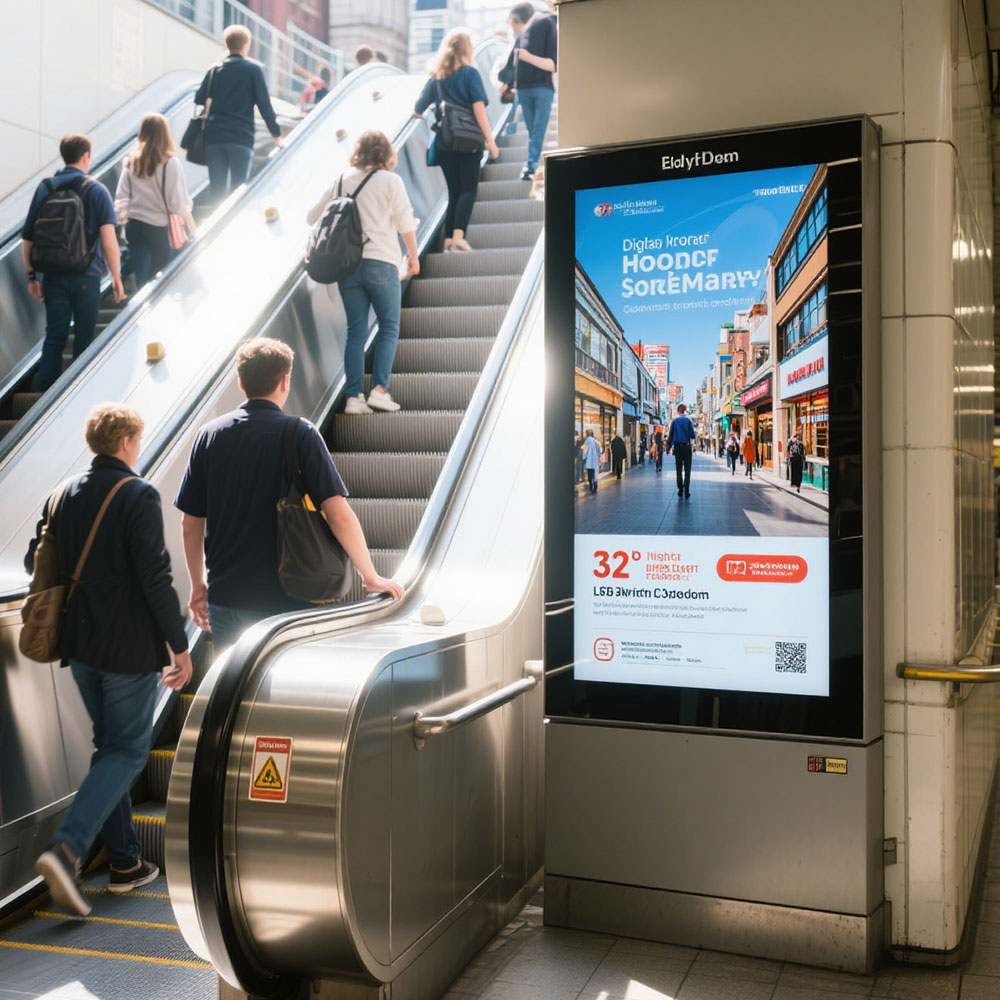

Transportation Hubs: Reliable real-time information at bus stops, train stations, and airports.
Sports Arenas & Events: Large-size display for impactful live broadcasting and advertising.
Customer Success Case
“We integrated the RS650QUB-GD30 into a window display project. Even in strong sunlight, the screen remains clearly visible. Its durability and clarity exceeded our expectations. - Project Manager, European Partner
Certifications & Quality Assurance
Certified with CE, FCC, RoHS standards.
Manufactured under ISO9001 & ISO14001 quality management systems.
Backed by RisingLCD’s industry experience and trusted by global partners.
Warranty & Support
Standard Warranty: 1 year, with optional extended coverage.
24/7 Technical Support: Remote troubleshooting and on-site assistance available.
Secure & Reliable: All communications and services are protected with HTTPS data encryption.
Frequently Asked Questions (FAQ)
Q1: Can the screen be read under direct sunlight?
Yes. With ≥1500 nits brightness and optical bonding, the RS650QUB-GD30 remains perfectly visible outdoors.
Q2: What environments is this monitor suitable for?
It is ideal for outdoor advertising, transportation signage, EV charging stations, and public information systems.
Q3: Is it waterproof?
Yes. The IP65 rating ensures full protection against rain, dust, and humidity.
About RisingLCD
RisingLCD specializes in outdoor high-brightness display solutions, with decades of engineering experience in TFT-LCD technologies. Our products are trusted by global integrators, equipment manufacturers, and distributors for reliable and professional display performance.
Get a Quote
Interested in the 65-inch Outdoor High-Brightness LCD Monitor RS650QUB-GD30?
📩 Contact our sales team today for pricing, customization options, or technical consultation.
| Specification | Details |
|---|---|
| Panel Size | 65 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 × 2160 (UHD), 68 PPI, RGB vertical stripe |
| Active Area | 1428.48 mm (W) × 803.52 mm (H) |
| Outline / Opening Area | 1433.4 mm (W) × 808.6 mm (H) |
| Surface Treatment | Matte (Haze 28%), Hard Coating 2H |
| Brightness | 1500 to 5000 nits |
| Contrast Ratio | 1100:1 (Typ., Transmissive) |
| Recommended Viewing Angle | Full Viewing Angle |
| Response Time | 8 ms (Typ., G to G) |
| Viewing Angle (Min.) | 89° / 89° / 89° / 89° (Left/Right/Up/Down, CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Color Support | 1.07B colors, 68% NTSC |
| Backlight Type | WLED, 50,000 hours, No driver |
| Weight | 21.5 kg (Typ.) / 22.6 kg (Max.) |
| Application | Outdoor/Indoor displays, digital signage |
| Frame Rate | 60Hz standard; 120Hz (60Hz input) via MEMC; 120Hz+120Hz panel + backlight; 240Hz (60Hz input) via MEMC |
| Touch Technology | None |
| Interface Type | 51 pins, V-by-One 8 lanes |
| Supply Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Supported IPS Hard-Screen Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Soft-Screen Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
