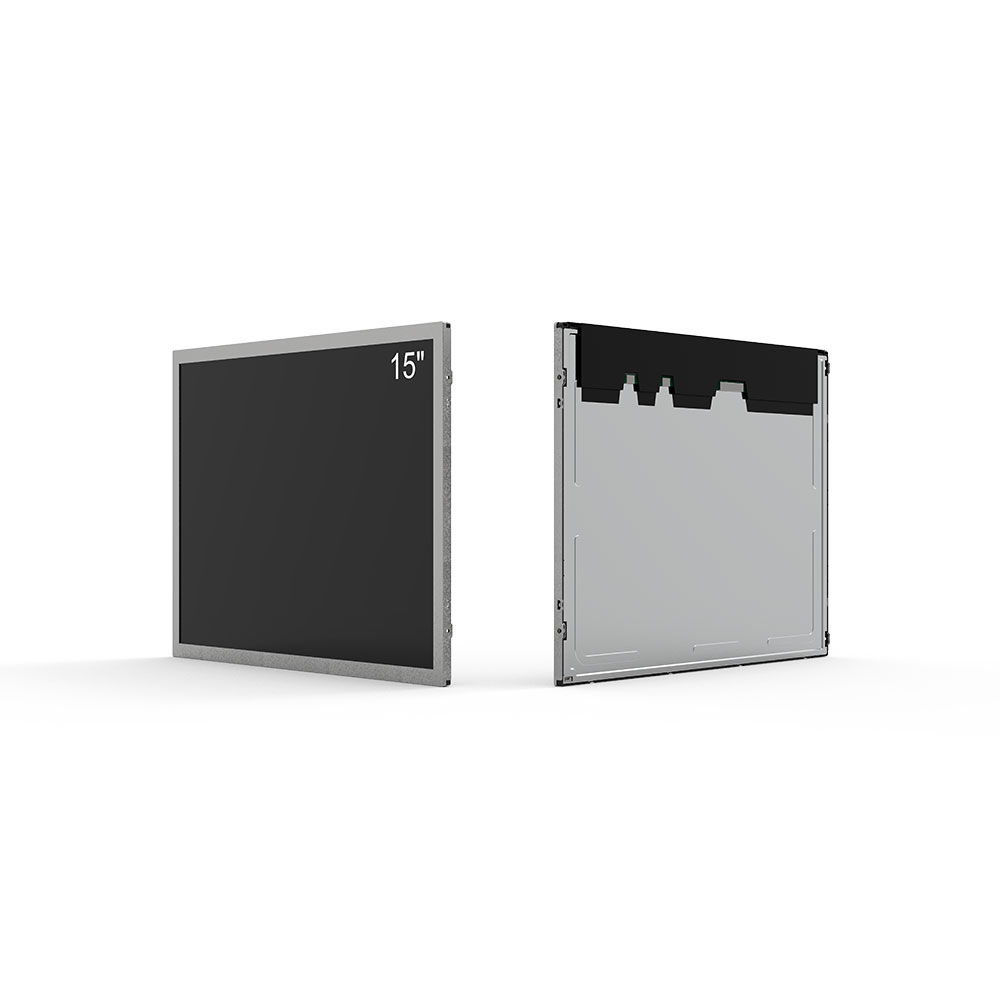

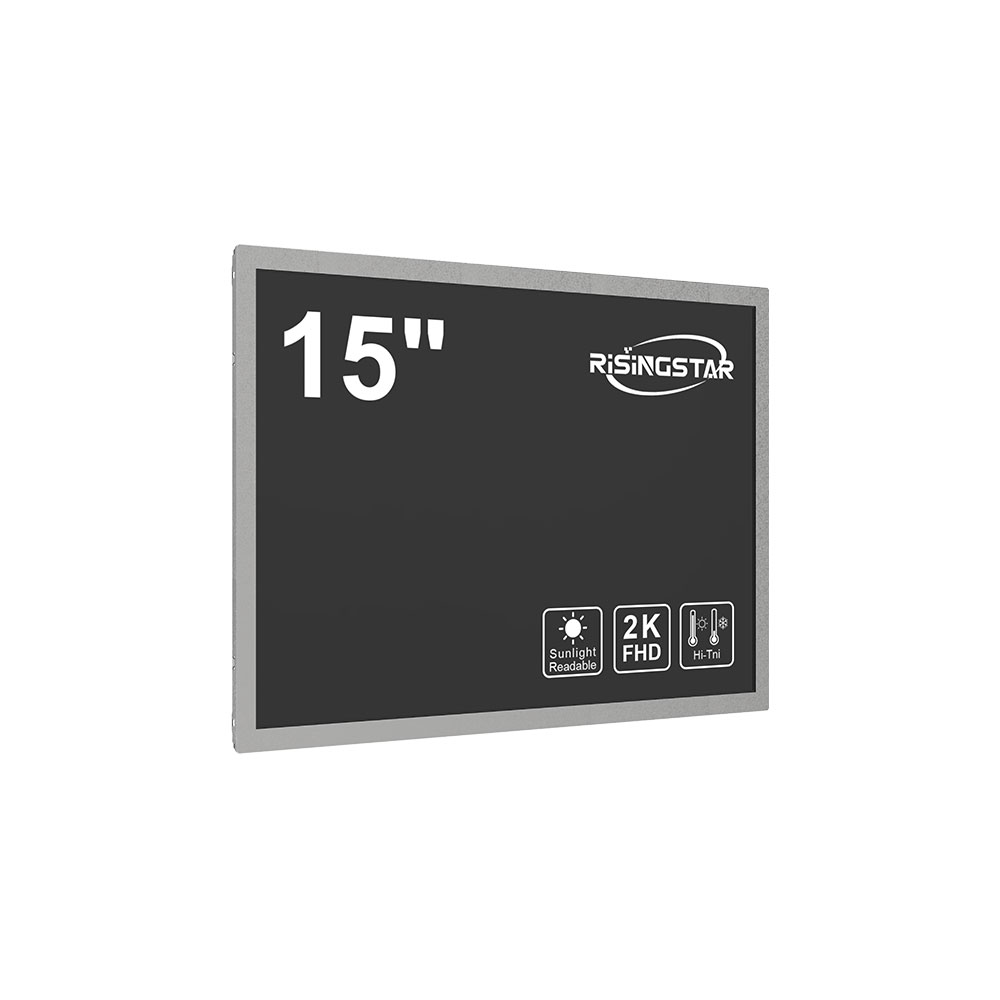

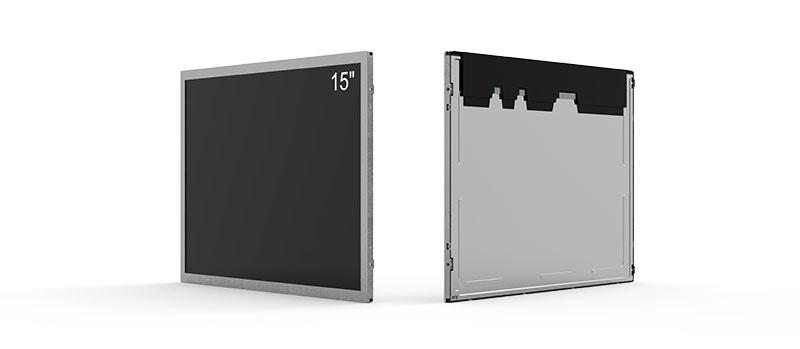

RisingStar’s 15-inch a-Si TFT-LCD display module is designed for professional applications demanding high performance, reliability, and excellent visibility under ambient light. Featuring a resolution of 1024(RGB)×768 (XGA) with an 85 PPI pixel density, this panel delivers crisp, clear visuals, ideal for industrial and medical environments. Its high-brightness 1000 to 5000nits backlight ensures sunlight readability, while the 1000:1 contrast ratio and wide viewing angles (89°/89°/89°/89°) guarantee consistent image quality from any direction.
Built on AHVA (Advanced Hyper Viewing Angle) technology—a high-end IPS-type solution—this LCD supports full viewing angles and transmissive, normally black mode for enhanced contrast and power efficiency. The anti-glare surface with a 3H hard coating offers durability and excellent readability in challenging lighting conditions.
With a robust operating temperature range of -20 to 70°C, integrated WLED backlight rated for 50,000 hours, and LVDS 8-bit interface, this display is built for demanding use cases. It weighs only 920g and supports 3.3V driving voltage, making it well-suited for embedded systems. Optional MEMC (Motion Estimation Motion Compensation) technology allows smooth 120Hz or even 240Hz visual performance.
RisingStar’s 15" TFT LCD is a proven choice for OEMs seeking dependable, sunlight-readable display solutions in mission-critical fields like industrial control systems, medical imaging, and HMI terminals.

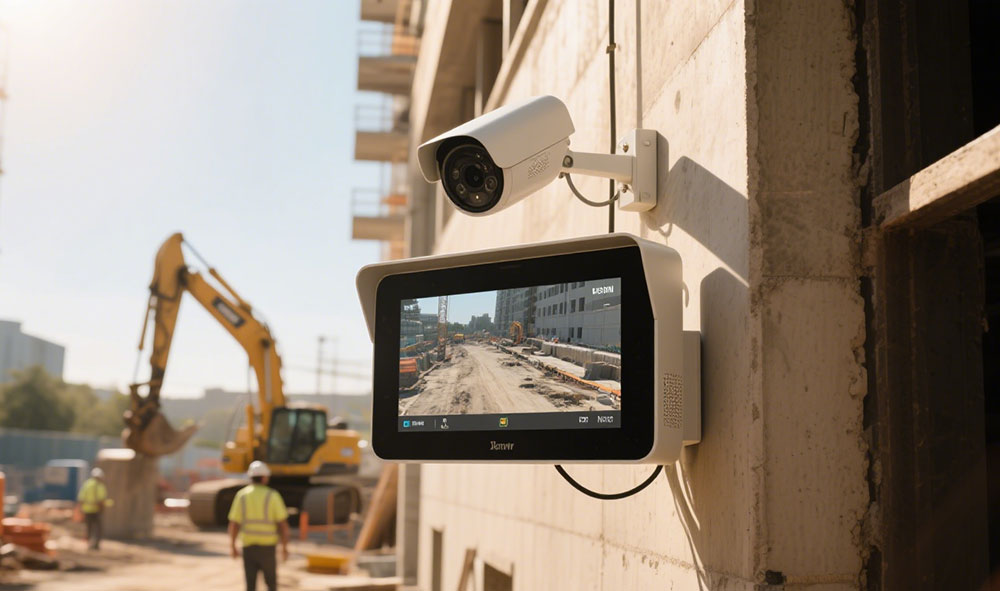

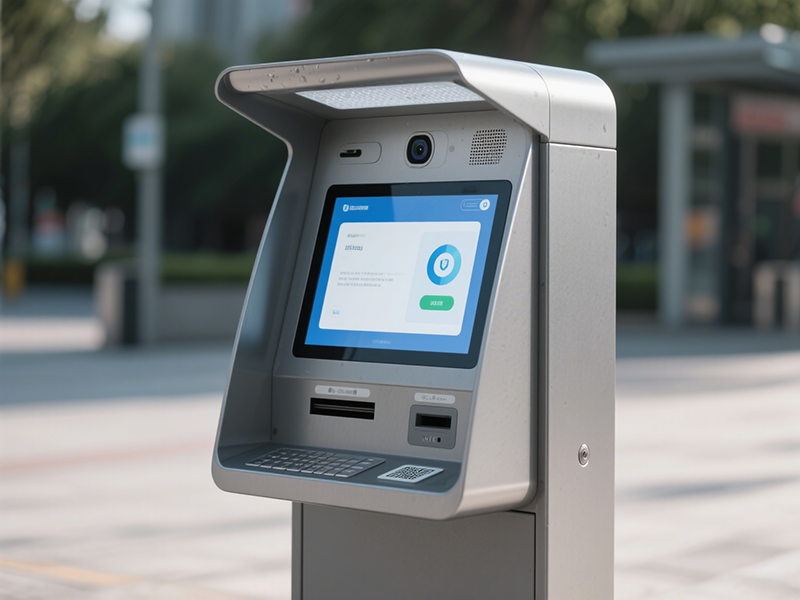

Application Cases
15 Inch Sunlight Readable TFT LCD Display – Industrial Grade Panel Specification Specification Table:
| Item | Description |
|---|---|
| Panel Size | 15.0 inch |
| Panel Type | a-Si TFT-LCD (Liquid Crystal Module) |
| Resolution | 1024(RGB) × 768 (XGA), 85 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area | 304.128(W) × 228.096(H) mm |
| Outline Dimensions | 326.5(W) × 253.5(H) × 9(D) mm |
| View Area (Bezel Opening) | 309.9(W) × 236.3(H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 1000 to 5000nits |
| Contrast Ratio | 1000:1 (Typical, TM) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Display Mode | AHVA (IPS-like), Transmissive, Normally Black |
| Response Time | 25 ms (Typical, Tr + Td) |
| Color Depth | 16.2M Colors, 60% NTSC |
| Backlight Type | WLED with Driver, Lifetime: 50,000 hours |
| Refresh Rate | 60Hz (Standard), Optional MEMC for 120Hz/240Hz input handling |
| Touch Panel | None |
| Weight | 920g (Max) |
| Interface | LVDS (1ch, 8-bit), 20 pins, Terminal Type |
| Power Supply Voltage | 3.3V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +70°C |
| Application Areas | Industrial |
15 Inch Sunlight Readable TFT LCD Display – Industrial Grade Panel Specification Specification Table:
| Item | Description |
|---|---|
| Panel Size | 15.0 inch |
| Panel Type | a-Si TFT-LCD (Liquid Crystal Module) |
| Resolution | 1024(RGB) × 768 (XGA), 85 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area | 304.128(W) × 228.096(H) mm |
| Outline Dimensions | 326.5(W) × 253.5(H) × 9(D) mm |
| View Area (Bezel Opening) | 309.9(W) × 236.3(H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 1000 to 5000nits |
| Contrast Ratio | 1000:1 (Typical, TM) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Display Mode | AHVA (IPS-like), Transmissive, Normally Black |
| Response Time | 25 ms (Typical, Tr + Td) |
| Color Depth | 16.2M Colors, 60% NTSC |
| Backlight Type | WLED with Driver, Lifetime: 50,000 hours |
| Refresh Rate | 60Hz (Standard), Optional MEMC for 120Hz/240Hz input handling |
| Touch Panel | None |
| Weight | 920g (Max) |
| Interface | LVDS (1ch, 8-bit), 20 pins, Terminal Type |
| Power Supply Voltage | 3.3V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +70°C |
| Application Areas | Industrial |
