P420IVN03.0 42" Stretched-Bar High brightness LCD
| Brand | AUO |
| Model name | P420IVN03.0 |
| Screen size | 42 " |
| Screen type | LCD Monitor |
| Resolution | 1920(RGB)×480 46PPI |
| Brightness (cd/m²) | 2500 |

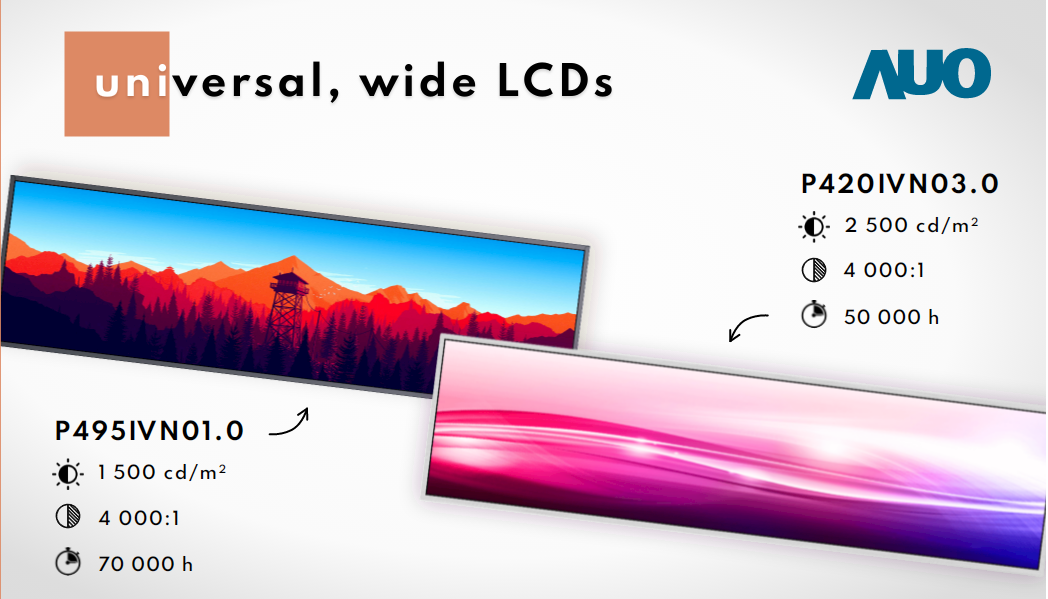

P420IVN03.0 42" Stretched-Bar High brightness LCD
P420IVN03.0 is a 42" stretched-bar LCD, it offers a very high brightness of 2500cd/m² and wide-viewing angle (89°/89°/89°/89°) and 4000:1 Contrast Ratio. P420IVN03.0 is also use the hiTNI technology that prevents that liquid crystals from changing the state of their aggregation under the infuluence of the sunlight and temperatures. If do not use this technology, the black spots could appear on the active area of the LCD if it is located at a heavily sunlit spot.
P420IVN03.0 stretched bar LCD can be operated in the temperature range from -20 to 70°C, and Storage Temperature: -30℃ ~ 80℃. With the 1920(RGB)×480 high resolution, and 2500nits high brightness, this stretched bar could let you have a vivid world with high luminance, contrast ratio, low reflection and wide viewing angle, it can make you see the real image even under the sunlight, this stretched bar lcd gives you a comfortable visual experience no mater what you are iong at any time.

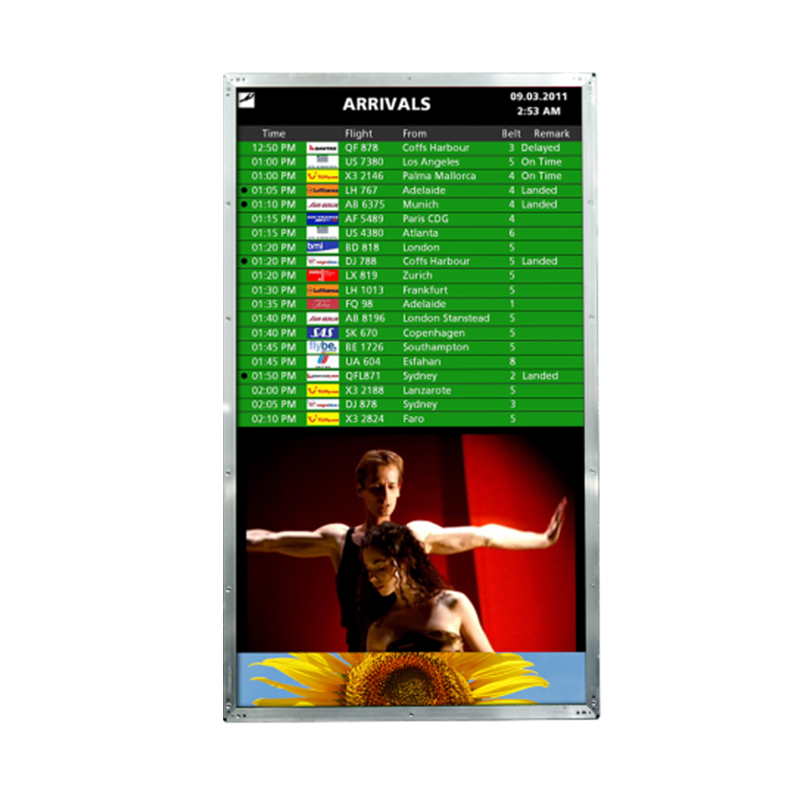

P420IVN03.0 stretched-bar LCD is ideal for consumer electronics, medical equipment, industry and automation,digital signage systems, commerical applications as the information carriers, such as government offices, clinics, musume, exhitition, library, entertainment KTV.
And the screen orientationI is option, it can be customized based on the customers requests.
Some models are no longer available from AUO, but you can contact us for a alternative solutions.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, highbrightness window facing display and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| P420IVN03.0 42" Stretched-Bar High brightness LCD | |
| Panel Brand | AUO |
| Panel Item | P420IVN03.0 |
| Size | 42 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)*480 46PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1039.68*259.92(H*V)mm |
| Outline Size | 1059.48*283.32*56.9(H*V*D)mm |
| Bezel Area | 1043.68*263.92(H*V)mm |
| Surface Treatment | Reflection 1.45% (Max.) |
| Brightness | 2500cd/m² |
| Constrast Ratio. | 4000:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | AMVA3, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 5 (Typ.)(G to G) |
| Display Color | 16.7M/1.078 72% s RGB |
| Backlight | WLED, 50K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 5.50Kgs |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Backlight Voltage | 12V |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
