49.5 inch 1920*540 stretch LCD advertising display monitor

49.5 inch 1920*540 stretch LCD advertising display monitor

BrandRisinglcd
Model nameRS495ENT-N03
Screen size49.5 "
Screen typeStretch LCD Monitor
Resolution1960 540 (FHD)
Brightness (cd/m²)300 to 1000
Overview Specifications Customized Services Support & Shipping

  49.5 inch 1920*540 stretch LCD advertising display monitor.

This item strip LCD screen uses an imported aluminum substrate, and the ability to absorb and dissipate heat with great efficiency reduces the light decay of the LED lamp. The backlight heat has a low influence on the liquid crystal substrate, achieving energy saving and long life, effectively saving energy, and the product is lighter and thinner.

Can be cut to any size according to customer requirements. The thickness of the strip screen module can be adjusted according to customer requirements.

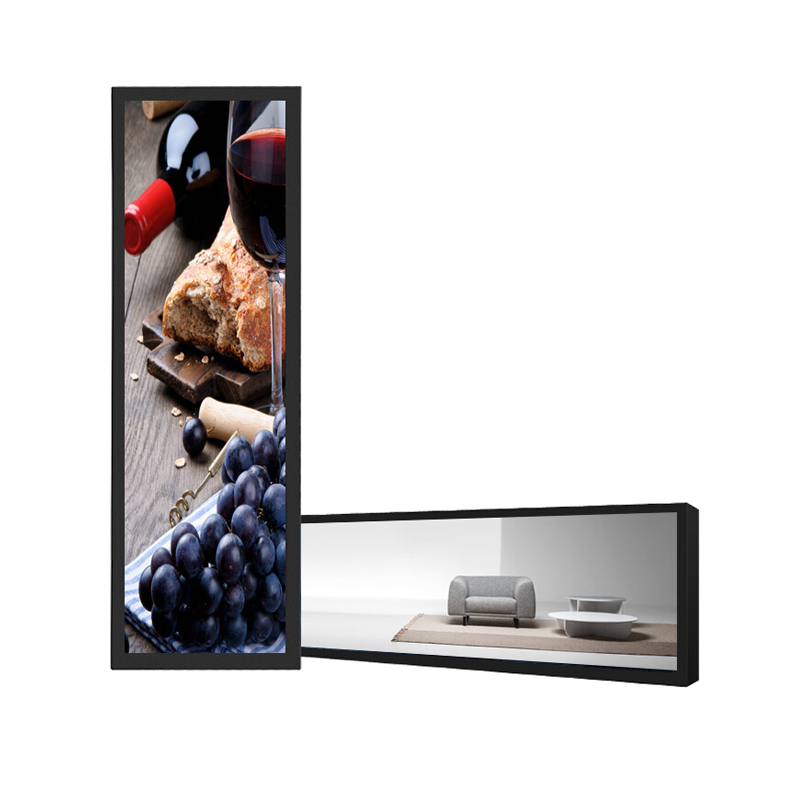

Support horizontal and vertical screen playback switching, according to different functional requirements of customers, a variety of configurations are optional.

RS495ENT-N03 49.5 inch high brightness display 49.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display


LCD screen paramenter

Size

49.5inch

Panel item

RS495ENT-N07

Backlight Type

LED

Display mode

 IPS,Normally black，transmissive display

Pixels

1960*540 (FHD)

brightness

 300-1000cd/m2  available

Constrast Ratio

1200:1

Display color

16.7m.8bit

View angle

89/89/89/89

Dispaly area

1209.6*340mm(H*V)

Outline Size

1248.2*378*54mm(H*V*D)

Respon Time

6ms

  System Parameter

CPU

Alli A40i, quad-core ARM Cortex A7 1.2 GHz

System

Android 4.4.2

Memory

1+8G

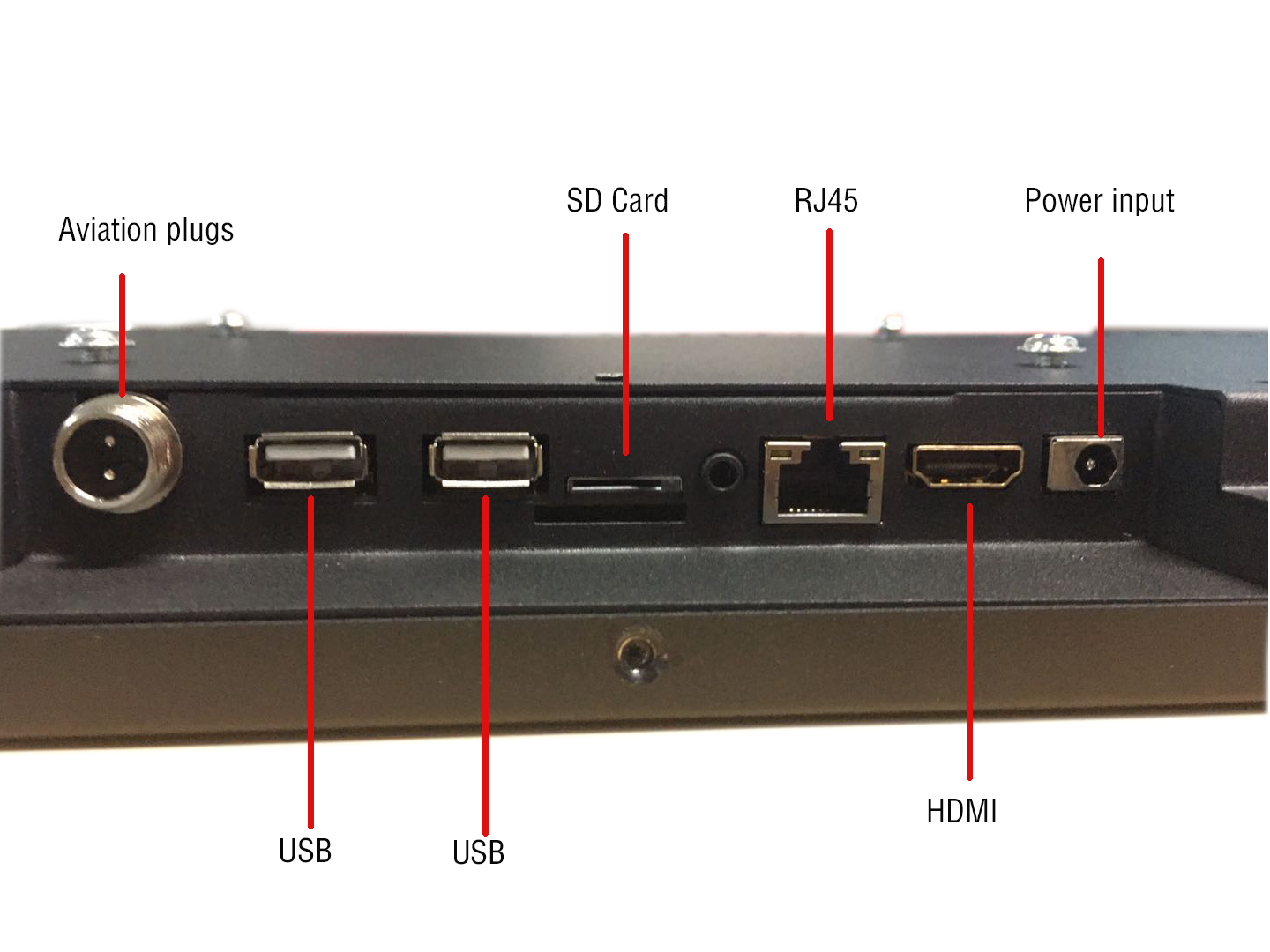

  Interface

USB

2

RJ45

1

Micro SD

1

HDMI

1

DC2.0 IN

1

 Others

Installation method

Wall-mounted, horizontal screen (installation accessories are also available)

Appearance material

 metal

Video format

Support MPEG1/2、MPEG4、SP/ASP、XVID、VP8/6、AVS/AVS+、H.264 BP/MP/HP、H.263/WMV、WMV7、WMV8 ect.

Audio Format

WMV、AVI、FLV、RM、RMVB、MPEG、TS、MP4、MP3 ect

Network

Ethernet ,Wifi

Power supply

AC 220V50

External adapter power supply

＜45W

Standby Consumption

<0.5W

Weight

9.5kgs
