Curved touch LCD panel 32 inch for gaming monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Item No | RS320ENT-N03CG |
| Size | 32 inch |
| Radius of Curvature | 1500 R |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920*1080 |
| Brightness | 350 nits |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 698.4*392.85 (H×V) mm |
| Dispay Mode | IPS |
| Aspect Ratio: | 16:9 |
| Contrast ratio | 4000:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | Normally Black, Transmissive |
| Surface treatment | Hard coating(2H), Antiglare |
| Display Color | 16.7B 72% NTSC |
| Refresh Rate | 60Hz |
| Curvature Rate: | 1500mm |
| Backlight | WLED , 50K hours , W/ LED Driver |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
The curved screen monitors wrap the player in the favorite games, compared with the flat monitor, the curved monitor help surround the player with the gaming experience to hit a great level of immersion
RS320ENT-N03CG is RisingLCD 32 inch curved lcd panel that using the projected capacitive touch technology, with a 32inch curve screen, high contrast 4000:1, and high resolution 1920*1080, refresh rate 60Hz, Curvature rate 1500mm that is a best curved monitors help immerse you in your favorite gameworld.
RisingLCD can offer you a series of Curve LCD display to you, sizes are 32 inch, 43inch, 49 inch 55inch, Radius are : 1000mm, 1500mm or1800mm Portrait or landscape mode are all supported. Integrated Projected Capacitive (PCAP) Multi-touch are optional.

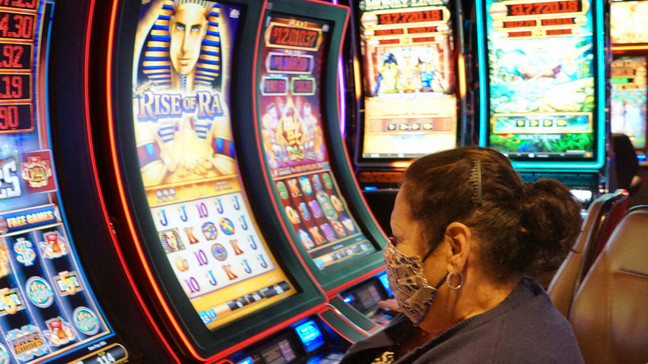

The curve display is the enhanced solution for casino slot machines, gaming, signage, kiosks and other public information terminals
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
