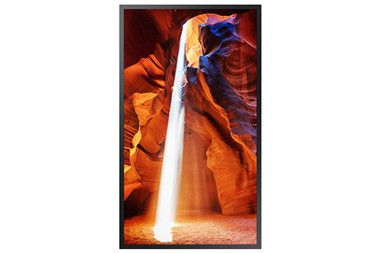

Sharp LQ201U1LW32 Original 20.1" inch LCD panel industrial Application

Sharp LQ201U1LW32 Original 20.1" inch LCD panel industrial Application

BrandSharp
Model nameRS201ENT-N026
Screen size20.1 "
Screen typeLCD Panel
Resolution1600(RGB)×1200
Brightness (cd/m²)1000
Overview Specifications Customized Services Support & Shipping

Sharp 20.1 inch Original A grade LCD panel, model No: LQ201U1LW32, Diagonal size 20.1 inch it is a-Si TFT-LCD display panel produced by Sharp Corporation.

LQ201U1LW32 is with an integral WLED backlight system and with LED Driver, it is without touch screen. And the operating temperature range is -20℃ ~ 70℃ and the storage temperature range of -30℃ ~ 80℃, with a Life ≥ 50K hours WLED Backlight.  This LCD panel is ideal to be applied to Industrial, Medical Imaging etc.

LQ201U1LW32 Main Features:

Diagonal size: 20.1 inch

Pixel Format: 1600(RGB)×1200  [UXGA]  99PPI

Active Area: 408(H)×306(V) mm

Bezel Area: 413.2(H)×311.2(V) mm

Brightness: 260 nits,

Wide view angle 85/85/85/85 (Typ.)(CR≥10)

Great contrast ratio : 1400:1

RS201ENT-N026 20.1 inch high brightness display 20.1 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoRS201ENT-N026
Panel BrandSharp display
Panel ItemLQ201U1LW32
Size20.1 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 1600(RGB)×1200   (UXGA)    99PPI
Pixel FormatRGB Horizontal Stripe
Display Area408 × 306 (H×V)
Outline   Size 436 × 335 × 20.4   (H×V×D)
Bezel Area413.2 × 311.2 (H×V)
Surface   Treatment Antiglare, Hard   Coating (2H)
Brightness260 (Typ.)(cd/m²)
Constrast   Ratio.1400:1
Aspect   Ratio: 4:3
View Angle85/85/85/85   (Typ.)(CR≥10)
Display ModelVA, Normally Black,   Transmissive
Response Time30 (Typ.)(Tr+Td)   ms
Display Color16.7B 71% NTSC
Backlight WLED , 50K hours , With LED Driver
Touch   Screen Without
Interface TypeLVDS (2 ch, 8-bit) ,   30 pins Connector
Panel   Weight 2.4kgs(Typ./Max.)
Frame Rate60Hz
Input   Voltage 12V(Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Current   State: In Production
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

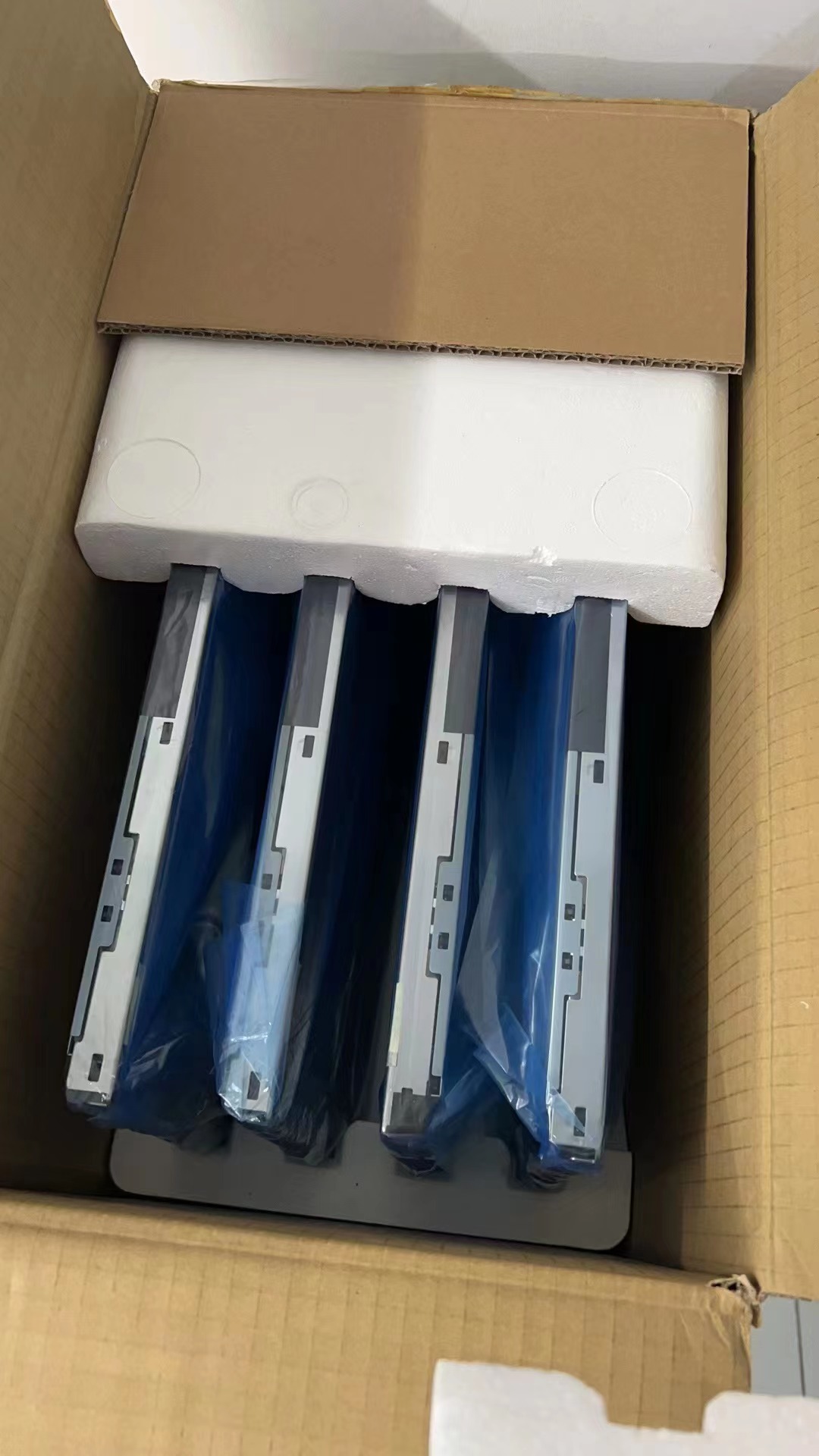

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
