RisingLCD Open Frame Monitor features industrial LCD with metal structure to protect electronic components without using an enclosure or bezel, high brightness, low power consumption backlight, ideal for many outdoor device solution.
An Open Frame Monitor features LCD with metal structure to protect electronic components without using an enclosure or bezel. RisingLCD open frame monitor with VESA mounting that makes it more easy to install, ideal for many outdoor device solution, such as ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.

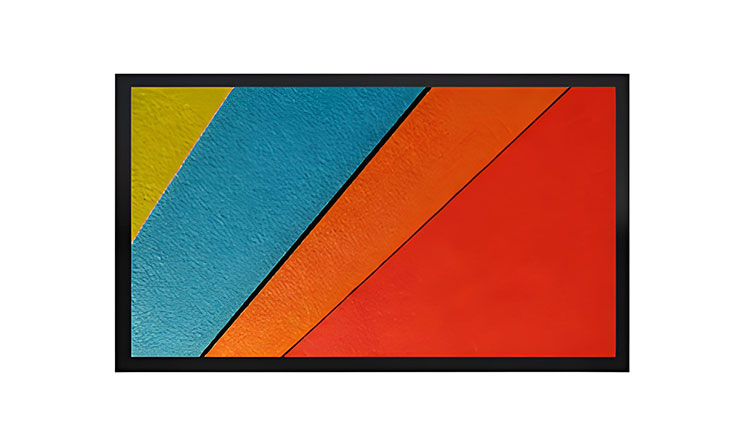

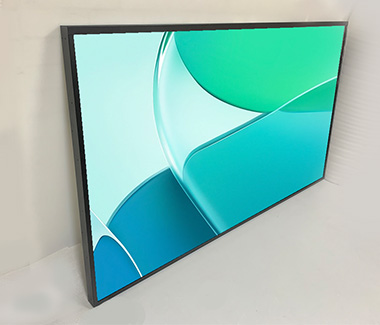

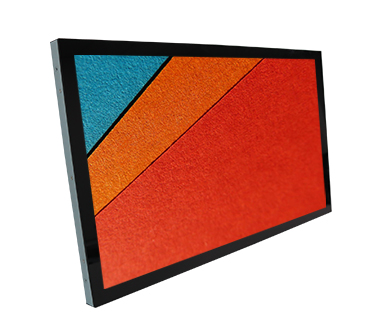

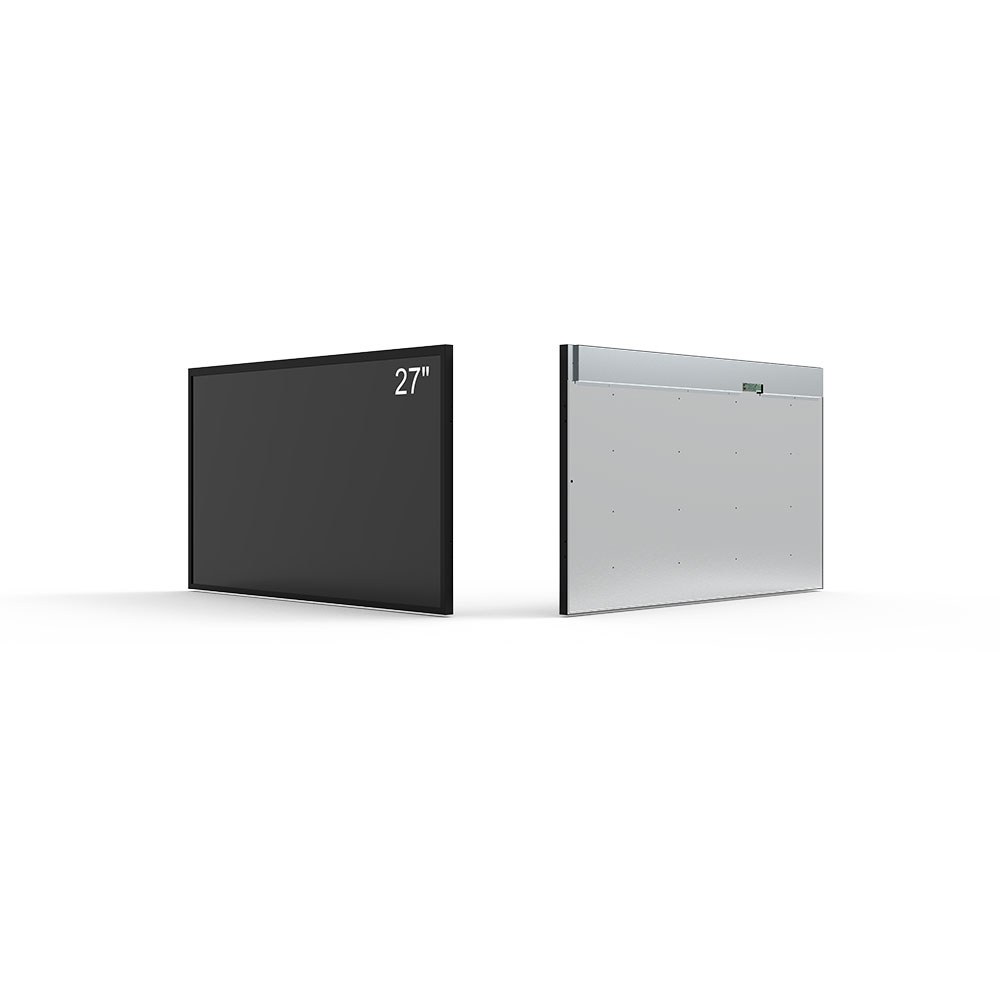

RisingLCD 27 inch open frame monitors is designed to provide superior pictures quality in a rugged enclosure, industrial original open cell that ensure this monitors years of reliable operation in any rugged environment.
27 inch high brightness open frame LCD display Main features
1. High brightness 2500nits
2. Sunlight Readable
3. LED Backlight
4. Wide Viewing Angle of 178°(H), 178°(V)
5. Wide Operation Temperature (-20 ˚C~60˚C)
6. LCD Blacking Defect Free
7. Low Power Consumption
8. BL MTBF: 50,000 hours
9. Intelligent temperature control system, active heat dissipation
Applications:

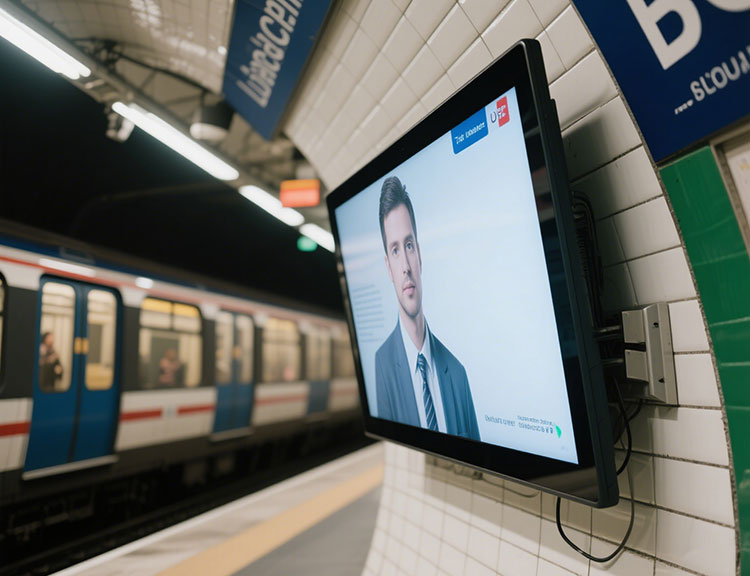

Stock exchanges, Traffic control centers, metro, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
| Screen Size | 27" |
| Display Area (mm) | 478.656(H) x 260.28(V) |
| Brightness | 2500 nits |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.31125(H) x 0.31125(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typical) | 7/5 (Typ.)(Tr/Td) (ms) |

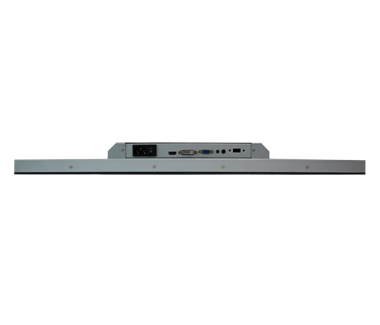

| Input Interface | USB TOUCH*1 EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 AC IN*1 |
| OSD Key | AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER |
| Glass | 3MM Tempered Glass OCR |
| Touch Type | PCAP |
| Input Power | AC 200-240v |
| Power Consumption | 80W |

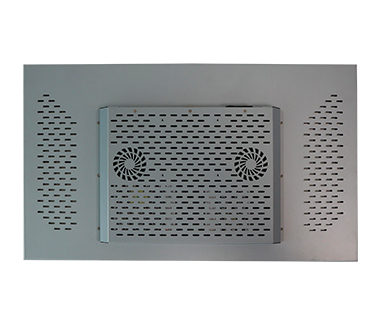

| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 369 x 377 x 58.6mm |
| Mounting | 100x100mm Screws metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ˚ C ~ 60 ˚ C |
| Storage Temperature | -20 ˚ C ~ 70 ˚ C |
