65 Inch Interactive windows Android Free Standing digital display
| Panel Brand | AUO |
| Panel NO | 650HVN05.0 |
| Screen size | 65 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080 |
| Brightness (cd/m²) | 2500 |

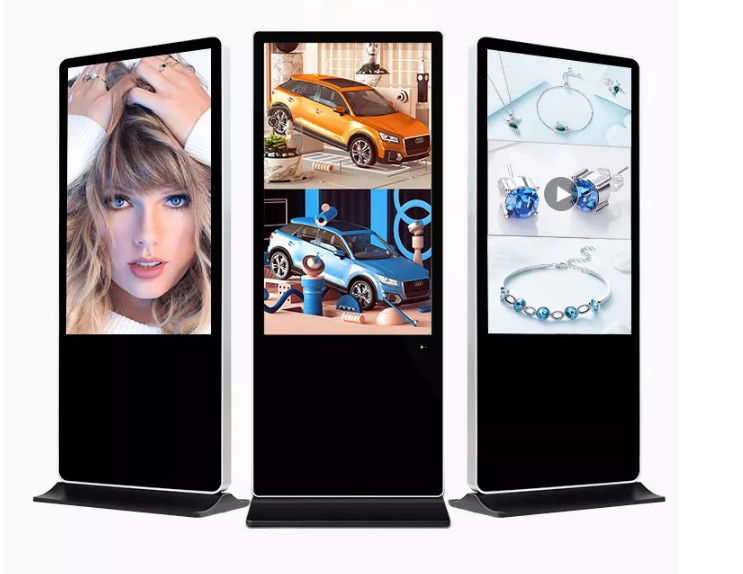

65 Inch Interactive windows Android Free Standing digital display
General Description:
RS650ENT-N25 is 65 inch free standing digital signage that built in the windows android system, and is equipped with Auo grade a screen, panel no 650HVN05.0 that screen is charaterized with a 2500 cd/m² brightness and high resolution 1920*1080, and a static constrast ration of 4000:1, and a ability to work in the industrial temperature range (-20~70°C) and combined with high tnl 110 industrial grede OC, the HD series can operation 24/7.

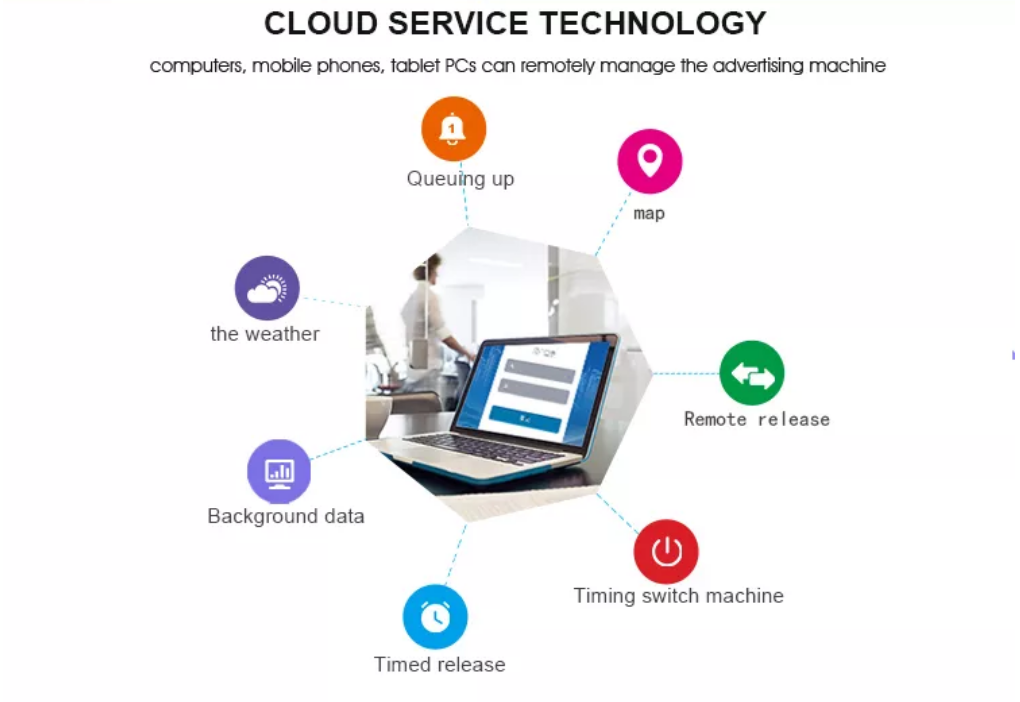

this interactive digital display use the content management system that support multiple synchronous remote publishing and management,and make the dystem manitenance update more easily.

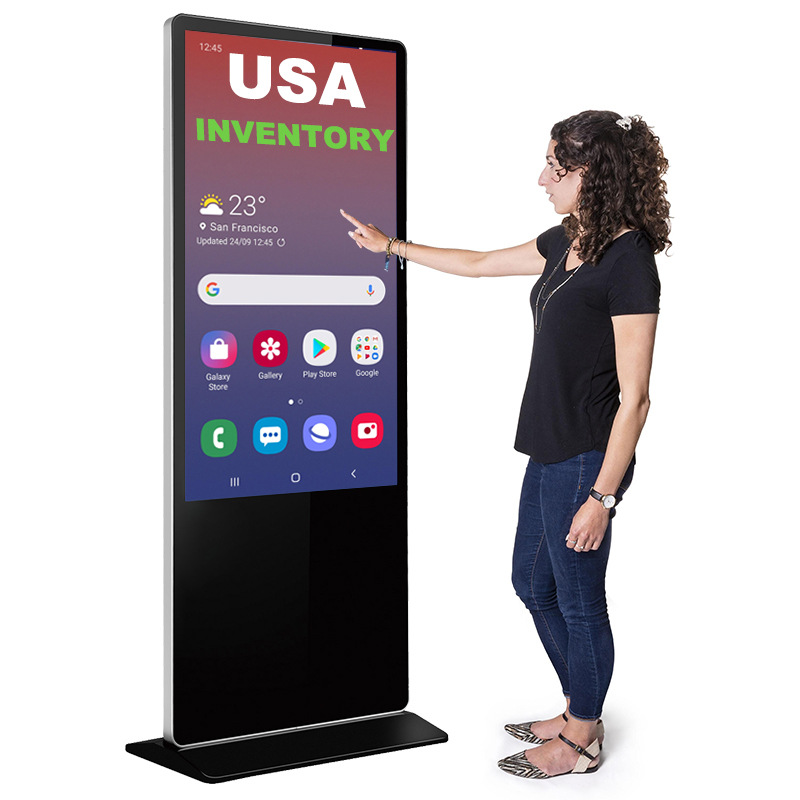

They are fully touch screen with an interactive touch screen keyboard, help the business owner increase the sales and customer satification, this free standing digital signage display are very effective for retail stores, catering, book store, hotels, police station, gas stations, health clubs etc.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Size | 65 inch |
| Panel Brand | AUO |
| Panel No | P650HVN05.0 |
| Display Area | 1428*803mm |
| Brightness | 2500nits |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Contrast | 1200:1 |
| Response Time | 6/9 (Typ.)(Tr/Td) ms |
| View Angle | H ±178º / V ±178º |
| Touch Type | Infrared 10 points touch |
| Writing screen media | 4-5mm tempered high transparent anti-glare glass |
| LED | DLED |
| Lifetime | 50000H |
| Intelligent dimming | Support |
| Intelligent temperature control | Support |
| Remote Control | Support |
| Input Voltage | AC90-264V,50/60HZ |
| Maximum Power | 400W |
| Shell Material | Metal Plate |
| Product Dimensions | 1473*848*89mm |
| Weight | 50KG |
| Environmental conditions | Semi-outdoor |
| Operating temperature & humidity | -20℃ ~ 70℃ |
| Main-board | Android /PC/ HD Driver Board (Optional) |
| IO interface | HDMI/VGA/DVI/USB/RJ45 |
| External control | IR Receiver, Auo-dimming sensor, IR Receiver, Auto-Dimming Sensor |
| Special Features: | Temperature sensor, Auto brightness sensor, Silent fans cooling source selection. |
| Application: | Advertising publish, retail store, shopping mall, welcome display |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
