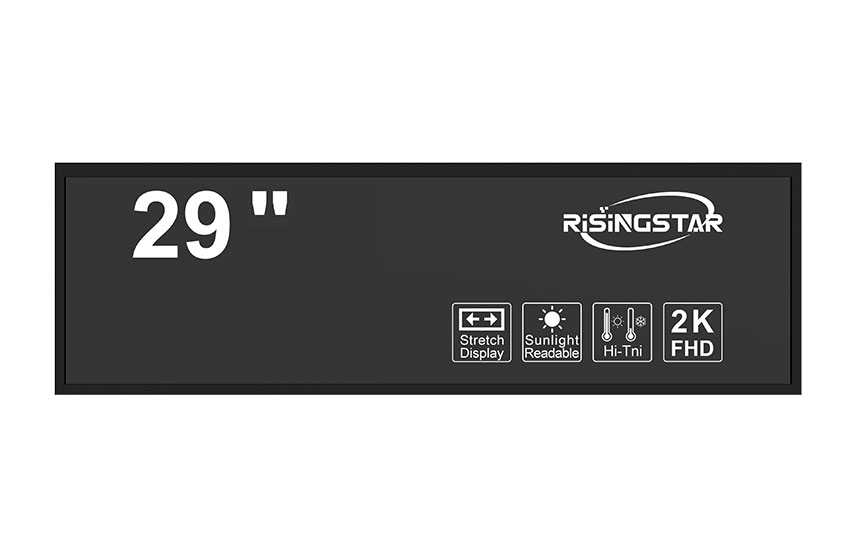

29" Industrial Ultra High Brightness Stretch LCD Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Specification
| Specification | Details |
|---|---|
| Screen Diagonal | 29 inch |
| Brand | RisingLCD |
| Model No. | RS290WW2-NE08 |
| Active Area | 672.768 × 283.824 mm |
| Resolution / Pixels | 2560 (RGB) × 1080, CSHD, 96 PPI |
| Physical Size (W×H×D) | 693.6 × 308.9 × 17 mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio | 1000:1 |
| White Luminance (Center) | 500–5000 cd/m² |
| Optical Response Time | 14 ms (Typ., G to G) |
| Nominal Input Voltage | 10.0 V (Typ.) |
| Frame Rate | 60 Hz |
| Viewing Angle (CR≥10) | 89/89/89/89 (Typ.) |
| Weight | 3.11 / 3.265 Kg (Typ. / Max.) |
| Interface Type | LVDS (4 ch, 8-bit), 92-pin Connector |
| Support Color | 16.7M, 99% sRGB |
| Surface Treatment | Antiglare, Hard coating (3H) |
| RoHS Compliance | Compliant |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature (Non-Operating) | -30 ~ 80 °C |
Description & Applications
The RisingLCD RS290WW2-NE08 is a 29-inch high-performance CSHD display designed for industrial and commercial use. With a resolution of 2560×1080 and high brightness up to 5000 nits, it ensures clear visibility in both indoor and outdoor environments. Its a-Si TFT-LCD structure provides reliable long-term operation, low power consumption, and wide viewing angles of up to 89° in all directions. The panel supports 16.7M colors with 99% sRGB coverage, ideal for precise color reproduction. The antiglare surface with 3H hard coating reduces reflections and enhances readability in bright environments.
This display is suitable for digital signage, outdoor advertising, passenger information systems, industrial control panels, and multimedia kiosks, offering robust performance in harsh environments with temperatures ranging from -20 ~ 70 °C. The LVDS interface and 92-pin connector provide easy integration into industrial systems. Its lightweight and slim 17 mm profile make it suitable for space-constrained installations.
| Screen Diagonal | 29 inch |
| Brand | RisingLCD |
| Model No | RS290WW2-NE08 |
| Active Area | 672.768(W)×283.824(H) mm |
| Pixels | 2560(RGB)×1080, CSHD 96PPI |
| Physical Size | 693.6(W)×308.9(H) ×17(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1000:1 |
| White Luminance ( Center ) | 500~5000 |
| Optical Response Time | 14 (Typ.)(G to G) |
| Nominal Input Voltage | 10.0 V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 3.11/3.265Kgs (Typ./Max.) |
| Interface Type | LVDS (4 ch, 8-bit) , 92 pins Connector |
| Support Color | 16.7M 99% sRGB |
| Surface Treatment | Antiglare, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
