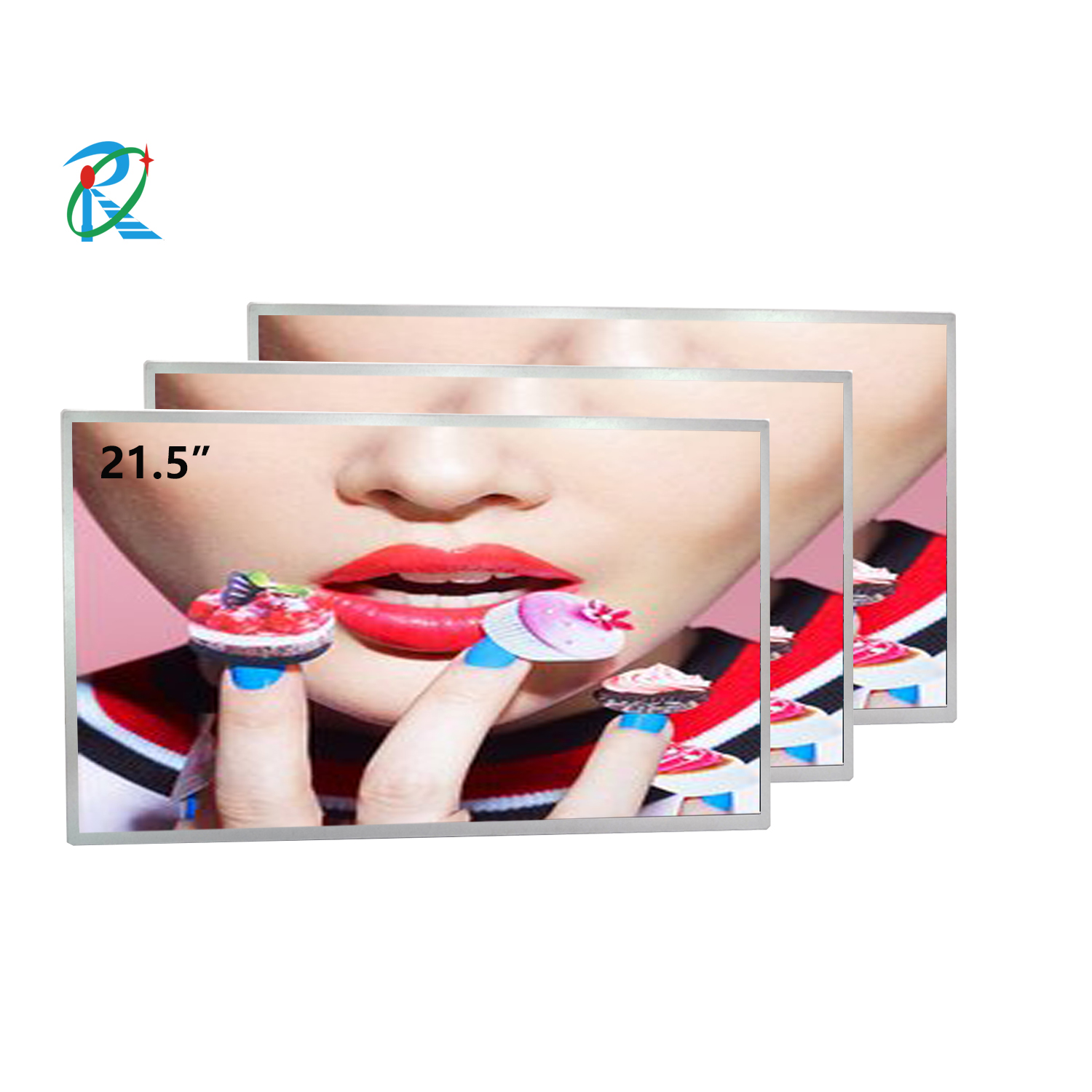

    21.5 inch TFT 1000 nits high brightness LCD module manufacturer

    2021-11-04 10:37:54  News

    Risinglcd focuses on the development and production of outdoor high-brightness LCD modules, high-brightness LCD monitors, 21.5 inches are widely used in outdoor high-brightness business environments, product brightness: 500 nits, 700 nits, 900 nits, 1000 nits, 1200 nits, 1500 nits, 1700 nits, 2000 nits, 1500 nits and below adopt side-lit backlight design, and 2000 nits and above adopt direct backlight design. Risiinglcd has distribution agencies and partners in France and Turkey.

    21

    Technical parameters of 21.5-inch 1000-nit high-brightness LCD module:

    Brand: RISINGLCD Model Name: RS215ENT-N10

    Screen size: 21.5 inches Screen type: LCD module, a-Si TFT-LCD

    Resolution: 1920(RGB)×1080 Pixel configuration: RGB vertical bar

    Display size: 476.064×267.786 mm (H×V) Appearance size: 501.1×292.2×16.12 mm (H×V×D)

    Visual size: 480.7×271.8 mm (H×V) Surface treatment: matte, Hard coating (3H)

    Brightness: 1000 nits Contrast degree: 1300: 1

    Best angle: full viewing angle Optical mode: AHVA, normally black display, transmissive

    Viewing angle: 89/89/89/89 Response speed: 25 ms

    Number of colors: 16.7M, 72% NTSC backlight type: 4 strings×2CN WLED, 50K hours, no driver

    Screen weight: 2.10Kgs Suitable for: digital signage outdoor highlight

    Refresh rate: 60Hz

    Signal system: LVDS (2 ch, 8-bit), terminal, 30 pins

    Supply voltage: 5.0V (Typ.)

    Maximum rating: Storage temperature: -20 ~ 60 °C Working temperature: -0 ~ 50 °C

    Provide ROHS certification.
