27 inch IPS LCD borderless panel for gaming monitor, MV270QHM-NF1

27 inch IPS LCD borderless panel for gaming monitor, MV270QHM-NF1

BrandBOE
Model nameMV270QHM-NF1
Screen size27 "
Screen typeWindow Facing display
Resolution2560(RGB)×1440
Brightness (cd/m²)1000
Overview Specifications Customized Services Support & Shipping

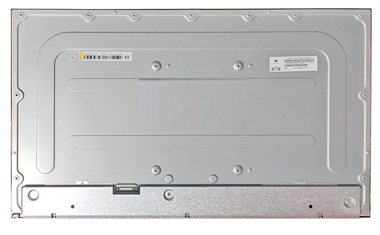

MV270QHM-NF1 is a 27.0-inch a-Si TFT-LCD liquid crystal module product from BOE, this IPS LCD panel is equipped with WLED backlight, without backlight driver, and without touch screen. It has an operating temperature of -20~70°C, and a storage temperature of -30 ~ 80°C, and a vibration resistance of 1.5G (14.7 m/s²). Its typical features are: DCI-P3, sRGB, 3-side borderless, 144Hz, white LED backlight, reversed terminals, matte surface, 3-side borderless, sRGB, 144Hz.

Thanks to above feature, it recommends this model to Computer Monitor, Game and other products.


MV270QHM-NF1 ISP LCD panel with 27"Wide color gamut and high refresh rate for an ultra-clear gaming experience

MV270QHM-NF1 is ideal for the gaming monitor,

The combination of the 2560×1440 resolution and the 27" big screen make your opponent's every move clearer.

The ultra-clear and refined images keep you ready for enemy attacks at any time.

27 inch IPS LCD borderless panel for gaming monitor

178° wide-angle screen with thin bezels*

Immersive IPS display

The IPS hard screen has an ultra-wide viewing angle of 178°, with vivid and realistic view at every angle.

The immersive panel comes with an ingenious thin bezel design on three sides, getting rid of the borders and enabling seamless combined use of multiple displays for an immersive experience.

27 inch IPS LCD borderless panel for gaming monitor

MV270QHM-NF1 27 inch high brightness display 27 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal27
Factory No.:RS270ENT-NE03
Model NameMV270QHM-NF1
BrandBOE
Diagonal Size27 inch
Typea-Si TFT-LCD, LCM
Resolution2560(RGB)×1440   [Quad-HD]  108PPI
Active Area596.736 × 335.664 mm (H×V)
Viewing Angle89/89/89/89 (Typ.)(CR≥10
Power Supply10.0V (Typ.)
Luminance350 cd/m² (Typ.)
Weight3.65Kgs (Typ.)
TreatmentAntiglare, Hard coating (3H)
ArrangementRGB Vertical Stripe
Contrast Ratio1000 : 1 (Typ.) (TM)
Response Time5 (Typ.)(G to G) ms
Operating ModeADS, Normally White, Transmissive
Light SourceWLED , 30K hours , Without LED Driver
Working temperature -20 ~ 70 °C
Interface TypeeDP (4 Lanes) , HBR2 (5.4G/lane) ,  30 pins Connector
Frame Rate144Hz
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
