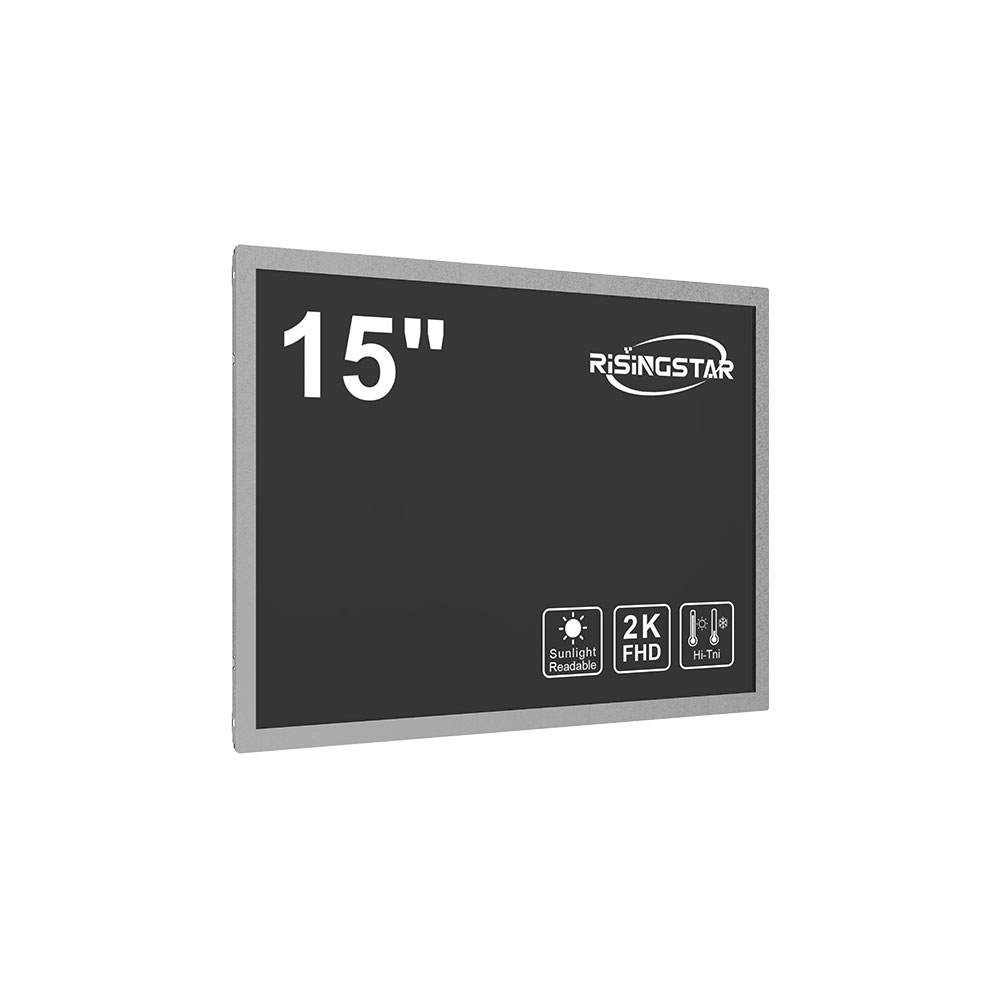

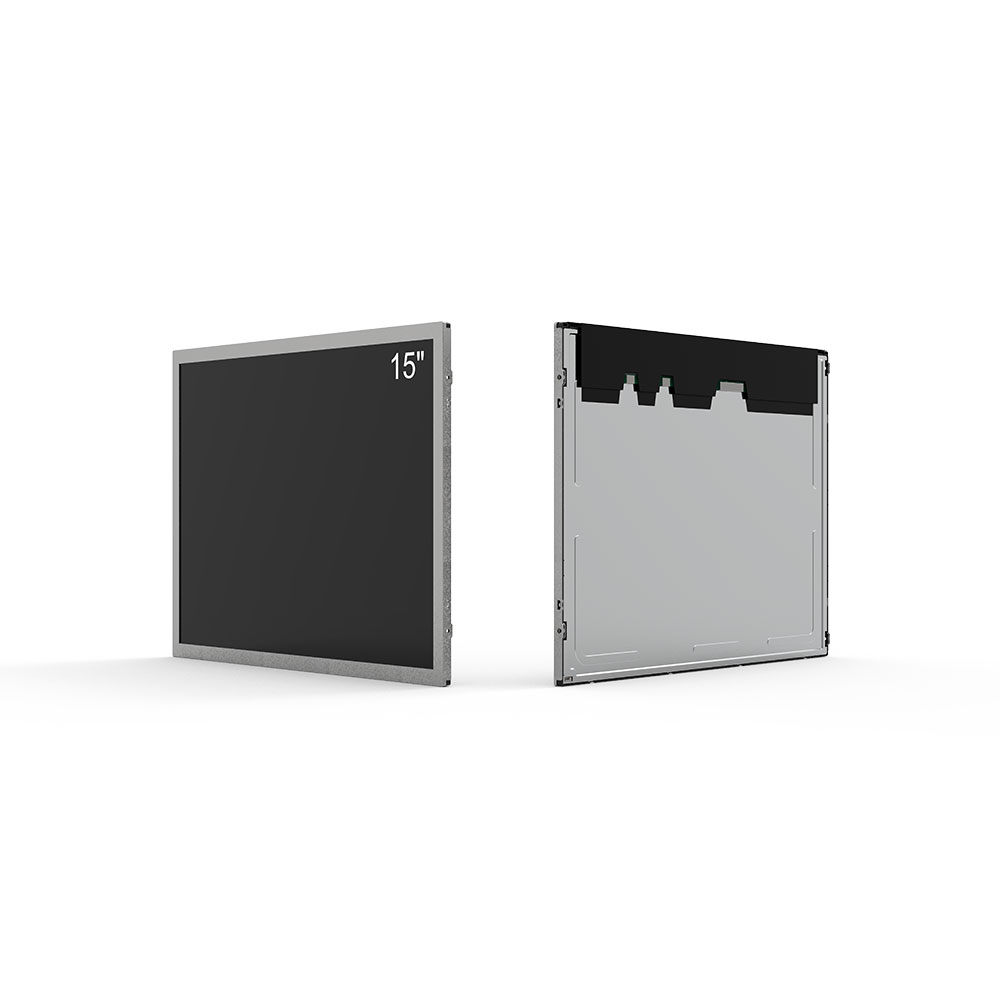

RisingStar’s 15-inch 4:3 high brightness LCD display is engineered for industrial and commercial applications demanding consistent performance in high ambient light environments. This display features a robust a-Si TFT-LCD panel with a native resolution of 1024×768 (XGA), delivering 85 PPI and a wide viewing angle of 88° in all directions (CR≥10) using advanced NPVA technology for true-black performance and excellent contrast.
The screen offers a high brightness range from 500 nits up to 5000 nits, making it a sunlight readable display ideal for outdoor kiosks, industrial control systems, marine panels, and public information terminals. The 2000:1 typical contrast ratio ensures clear, sharp visuals even in challenging lighting conditions. The 304.128(W)×228.096(H) mm active area fits precisely within a 15" format, and the anti-glare, 3H hard-coated surface resists reflections and abrasions.
With a durable WLED backlight rated for 70,000 hours (LED driver included), support for 262K/16.7M colors at 72% NTSC, and 60Hz frame rate with optional MEMC technology up to 240Hz, this model is both high-performance and long-lasting. The LVDS 20-pin interface supports 6/8-bit color depth, while the power supply operates at a stable 3.3V.
Designed to function in extreme environments, the panel withstands -20°C to 70°C operating temperatures, making it suitable for harsh outdoor and semi-outdoor applications. This high brightness LCD display is a reliable choice for OEMs and integrators requiring sunlight-readable, industrial-grade solutions.

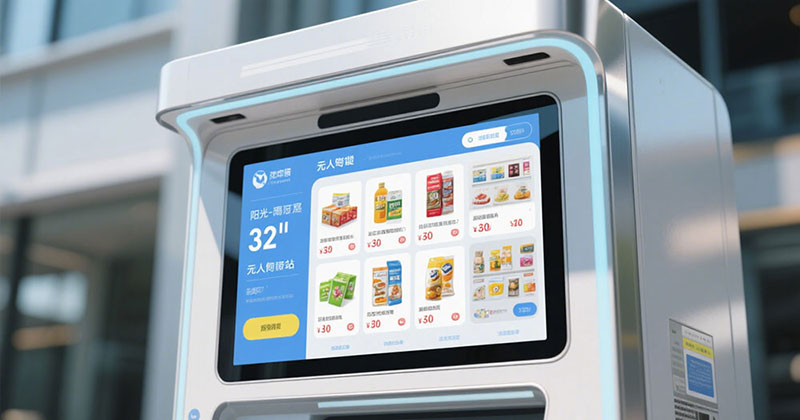

15 inch 4:3 high brightness LCD display case
15 Inch 4:3 High Brightness LCD Display Specifications – Sunlight Readable Industrial Panel
Product Specification Table:
| Item | Details |
|---|---|
| Panel Size | 15.0 inches (4:3 aspect ratio) |
| Panel Type | a-Si TFT-LCD (Transmissive, NPVA technology, Normally Black) |
| Resolution | 1024 (RGB) × 768 (XGA), 85 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 304.128 (W) × 228.096 (H) mm |
| Bezel Opening | 307.4 (W) × 231.3 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 nits to 5000 nits (sunlight readable) |
| Contrast Ratio | 2000:1 (Typical) |
| Viewing Angle | 88°/88°/88°/88° (L/R/U/D, CR≥10) |
| Response Time | 16 ms (Tr) / 7 ms (Td) Typical |
| Color Support | 262K / 16.7M colors, 72% NTSC gamut |
| Backlight | WLED, 70,000 hours lifespan, with LED driver |
| Weight | 0.96 / 1.00 kg (Typical / Max) |
| Frame Rate | 60Hz (Standard); Optional MEMC: 120Hz / 240Hz |
| Touch Technology | No touch |
| Interface | 20-pin LVDS (1 channel, 6/8-bit) |
| Power Supply | 3.3V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Applications | Industrial terminals, outd |
15 Inch 4:3 High Brightness LCD Display Specifications – Sunlight Readable Industrial Panel
Product Specification Table:
| Item | Details |
|---|---|
| Panel Size | 15.0 inches (4:3 aspect ratio) |
| Panel Type | a-Si TFT-LCD (Transmissive, NPVA technology, Normally Black) |
| Resolution | 1024 (RGB) × 768 (XGA), 85 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 304.128 (W) × 228.096 (H) mm |
| Bezel Opening | 307.4 (W) × 231.3 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 nits to 5000 nits (sunlight readable) |
| Contrast Ratio | 2000:1 (Typical) |
| Viewing Angle | 88°/88°/88°/88° (L/R/U/D, CR≥10) |
| Response Time | 16 ms (Tr) / 7 ms (Td) Typical |
| Color Support | 262K / 16.7M colors, 72% NTSC gamut |
| Backlight | WLED, 70,000 hours lifespan, with LED driver |
| Weight | 0.96 / 1.00 kg (Typical / Max) |
| Frame Rate | 60Hz (Standard); Optional MEMC: 120Hz / 240Hz |
| Touch Technology | No touch |
| Interface | 20-pin LVDS (1 channel, 6/8-bit) |
| Power Supply | 3.3V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Applications | Industrial terminals, outd |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
