RS190ETN-GE15 – 19-Inch 1500 nits Sunlight Readable TFT LCD Panel

A good sunlight readable display is typically defined as an LCD with 1500 nits brightness. The RisingLCD RS190ETN-GE15 achieves this high brightness level, ensuring the screen remains clearly visible even under direct sunlight.

The RS190ETN-GE15 is a 19-inch high-brightness TFT LCD panel equipped with an LED driver and integrated controller IC. It supports the LVDS interface and is specifically designed for outdoor and industrial applications.

Key Specifications

  • Key AdvantagesScreen Size: 19-inch square TFT LCD panel

  • Resolution: 1280 × 1024 (SXGA)

  • Brightness: 1500 nits (sunlight readable)

  • Backlight: LED with built-in driver

  • BL MTBF: 50,000 hours

  • Features:

    • High brightness for direct sunlight readability

    • Wide operating temperature range

    • Integrated controller IC for stable performance

    • LVDS interface support

Core Features

  1. High Brightness – 1500 nits
    Outstanding visibility even under strong ambient light or outdoor environments.

  2. Sunlight Readable Design
    Optimized for outdoor conditions, reducing glare and ensuring consistent image clarity.

  3. Wide Operating Temperature
    Engineered to perform reliably across diverse environmental conditions.

  4. Long Lifespan
    LED backlight with 50,000 hours MTBF ensures stable, long-term operation.

  5. Integrated LED Driver
    Simplifies system integration, reduces design complexity, and enhances energy efficiency.

Typical Applications

The 19-inch sunlight readable square LCD screen is widely used in:

  • Embedded systems

  • Industrial devices

  • Security and surveillance equipment

  • Hand-held terminals

  • Outdoor display solutions

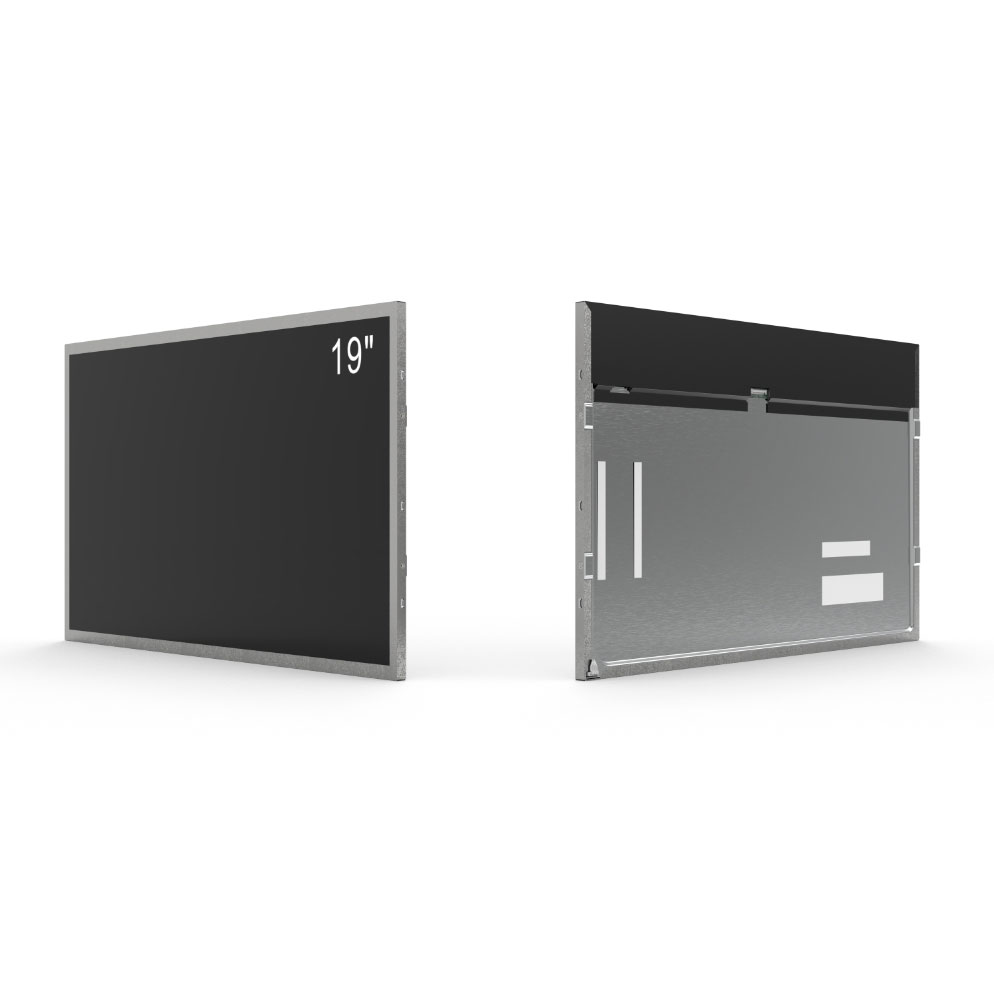

Physical product


19


Application examples


19-inch

Technical parameters

Screen Diagonal19 inch
Model NoRS190ETN-GE15
Active Area 376.32(W)×301.056(H) mm
Pixels1280(RGB)×1024, SXGA, 86PPI
Physical Size396(W)×324(H)×11.7(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1000 to 5000nits
Contrast Ratio 1000:1 (Typ.)
Optical Response Time3/7 (Typ.)(Tr/Td) ms
Nominal Input Voltage 5.0V (Typ.)
Frame Rate60Hz
Viewing Angle85/85/80/80 (Typ.)(CR≥10)
Weight [g] 0.84Kgs
Interface Type LVDS (2 ch, 8-bit)  , 30 pins Connector
Support Color 16.7M,  73% NTSC
Surface Treatment Hard coating (3H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C

Meta Description

RisingStar RS190ETN-GE15 is a 19-inch square TFT LCD panel delivering 1500 nits high brightness, IPS-level image quality, LVDS input, LED driver, and wide temperature operation—ideal for outdoor and industrial signage applications.

Product Overview

The RisingStar RS190ETN-GE15 is a high-performance 19-inch sunlight-readable square LCD panel designed for environments with intense ambient light. Delivering a brilliant 1500 nits brightness, SXGA resolution (1280×1024), and integrated LED driver and controller IC, it guarantees exceptional visibility and reliability in outdoor and industrial applications. Ideal for kiosks, signage, and embedded systems.

  • Sunlight-Readable High Brightness
    At 1500 nits, this display ensures crystal-clear readability in bright outdoor environments, far beyond standard consumer screens (~200–300 nits)

  • Superior Visual Quality
    IPS-level image rendering with wide viewing angles and no grayscale distortion.

  • Rugged & Reliable Design
    Wide operating temperature range (-20 ~ 70 °C) ensures stability in harsh conditions.

  • Long Lifespan & Energy Efficiency
    LED backlight with 50,000 hours MTBF paired with efficient driver circuitry.

  • Easy Integration
    Equipped with LVDS interface and slim form factor, ideal for embedded or kiosk deployments.

  • Durable Surface Finish
    3H hard coating resists scratching, maintaining visual clarity and durability over time.

Typical Applications

  • Outdoor digital signage and advertising kiosks

  • Industrial embedded systems and HMIs

  • Security monitors and handheld equipment displays

  • Outdoor vending and self-service devices

Note: Not intended or certified for clinical diagnostic applications.

About RisingLCD

RisingLCD is a technology leader specializing in high-brightness LCD solutions. With extensive R&D, manufacturing, and customization experience, the company delivers display panels ranging from 10.1″ to 100″ with brightness options between 500 nits and 5000 nits.

Call-to-Action

Request a Quote today to integrate the RS190ETN-GE15 into your next outdoor or industrial display project.

Screen Diagonal19 inch
Model NoRS190ETN-GE15
Active Area 376.32(W)×301.056(H) mm
Pixels1280(RGB)×1024, SXGA, 86PPI
Physical Size396(W)×324(H)×11.7(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1000 to 5000nits
Contrast Ratio 1000:1 (Typ.)
Optical Response Time3/7 (Typ.)(Tr/Td) ms
Nominal Input Voltage 5.0V (Typ.)
Frame Rate60Hz
Viewing Angle85/85/80/80 (Typ.)(CR≥10)
Weight [g] 0.84Kgs
Interface Type LVDS (2 ch, 8-bit)  , 30 pins Connector
Support Color 16.7M,  73% NTSC
Surface Treatment Hard coating (3H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
