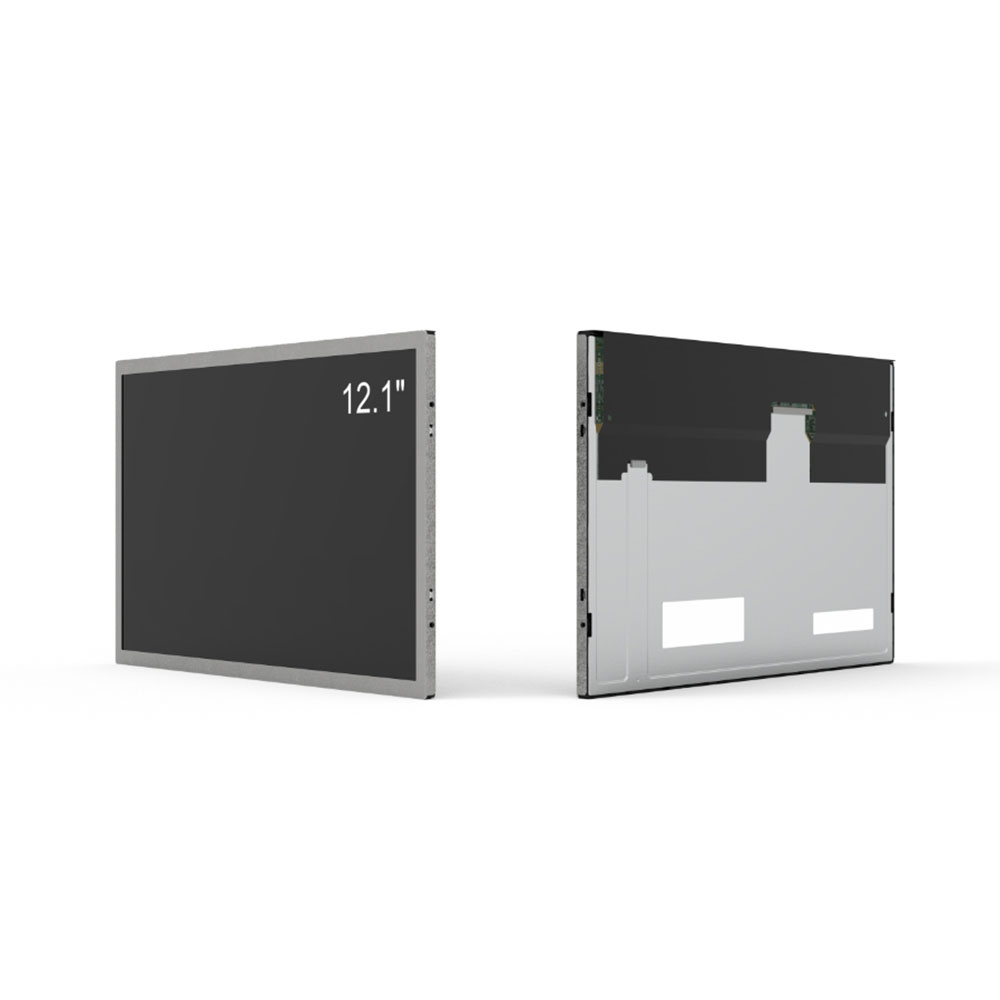

12.1 inch 1500 nits sunlight readable TFT LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
12.1 inch High Brightness Industrial LCD Module – Specification Table
Excel-Style Specification Table
| Item | Specification |
|---|---|
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 800, WXGA, 124 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 261.12 (W) × 163.20 (H) mm |
| Bezel Opening Area | 264.12 (W) × 166.20 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness (Luminance) | 500–3000 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Viewing Direction Recommended | All-view |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Response Time (Tr/Td) | 12 / 8 ms (Typ.) |
| Display Mode | AAS, Normally Black, Transmissive |
| Color Support | 262K / 16.7M, 72% NTSC |
| Backlight Type | WLED, 30,000 hours, LED Driver Included |
| Weight | 470 g (Typ.) / 490 g (Max.) |
| Refresh Rate | 60 Hz |
| MEMC / High-Frame Options | 120 Hz (60 Hz input, built-in MEMC) / 120 Hz panel + 120 Hz backlight / 240 Hz (60 Hz input, MEMC) |
| Touch Option | No Touch |
| Interface | 30-pin LVDS (1 ch, 6/8-bit) |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Industrial Equipment |
Product Description & Application
The 12.1-inch a-Si TFT-LCD module is designed for industrial environments requiring high brightness, stable performance, and long-term reliability. Featuring up to 5000 nits sunlight-readable luminance, this display delivers excellent visibility under direct sunlight, making it ideal for both indoor and outdoor deployments.
With AAS (IPS-equivalent) technology, the panel offers ultra-wide 89° viewing angles in all directions, ensuring clear readability from any position. The panel supports up to 16.7M colors with 72% NTSC coverage, delivering accurate image reproduction for industrial visualization systems.
Its rugged structure, wide operating temperature range (-20 ~ 70 °C), and integrated WLED backlight with 30,000-hour lifetime make it suitable for harsh environments. The module uses a 30-pin LVDS interface, making it compatible with a wide range of embedded systems and industrial controllers.
Typical Applications
Industrial control systems
Factory automation terminals
Outdoor HMI (human–machine interface)
Instrumentation and measurement devices
Medical and diagnostic equipment
Transportation displays
Kiosks, vending machines, ticketing systems
| Item | Specification |
|---|---|
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 800, WXGA, 124 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 261.12 (W) × 163.20 (H) mm |
| Bezel Opening Area | 264.12 (W) × 166.20 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness (Luminance) | 500–5000 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Viewing Direction Recommended | All-view |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Response Time (Tr/Td) | 12 / 8 ms (Typ.) |
| Display Mode | AAS, Normally Black, Transmissive |
| Color Support | 262K / 16.7M, 72% NTSC |
| Backlight Type | WLED, 30,000 hours, LED Driver Included |
| Weight | 470 g (Typ.) / 490 g (Max.) |
| Refresh Rate | 60 Hz |
| MEMC / High-Frame Options | 120 Hz (60 Hz input, built-in MEMC) / 120 Hz panel + 120 Hz backlight / 240 Hz (60 Hz input, MEMC) |
| Touch Option | No Touch |
| Interface | 30-pin LVDS (1 ch, 6/8-bit) |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Industrial Equipment |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
